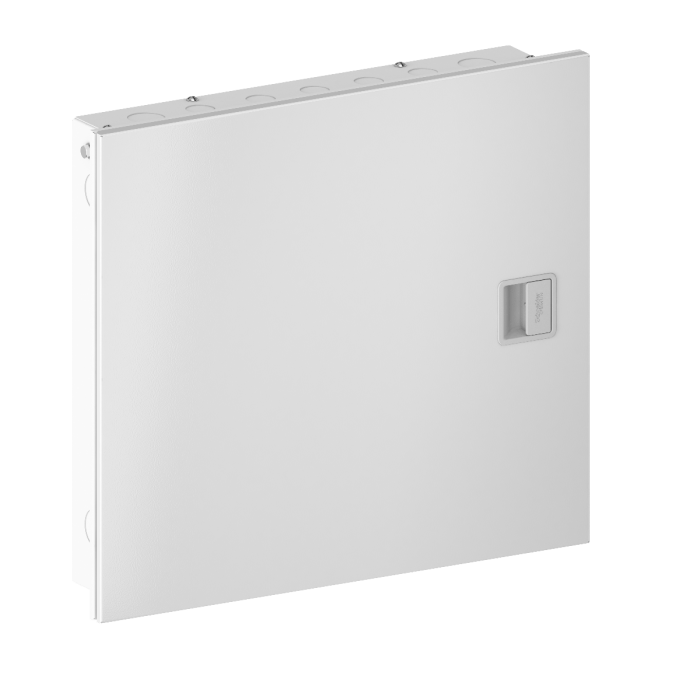

The Schneider Electric EZ9ETND12 is a distribution board from the Easy9 range, engineered for safe and organised power distribution in demanding Indian and international installations. Key ratings include 63 A, 415 V, 4 Poles. Buy the EZ9ETND12 | Easy9 DB 12 way TPN DD online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.
📋 Technical Specifications
| Product | |
| Brand | Schneider Electric |
| Part Number / SKU | EZ9ETND12 |
| Category | Distribution Board |
| Main | |
| Range | Easy9 |
| Product name | TPN |
| Device application | Low voltage electrical distribution |
| Product or component type | Empty consumer unit |
| enclosure type | Metal enclosure |
| Provided equipment | removable gland plates removable centre plates blanking plate earthing bar comb busbar earthing wire DIN rail neutral bar and cable phase voltage cable |
| Complementary | |
| Enclosure mounting | Flush Surface |
| Total number of 18 mm modules | 8 incomer 36 outgoer |
| Number of ways | 12 ways |
| Protection device type | Isolator 4P 63 A 10 kA main incomer Miniature circuit breaker (MCB) 4P main incomer Miniature circuit breaker (MCB) 1P outgoer Residual current circuit breaker (RCCB) 4P main incomer Residual current circuit breaker (RCCB) 2P secondary incomer |
| Type of front cover | Double door Reversible |
| [In] rated current | 63 A (maximum) |
| [Ue] rated operational voltage | 415 V |
| Network frequency | 50 Hz |
| Type of rail | DIN |
| Cable entry | 2 knock-outs at left side 2 knock-outs at right side 9 knock-outs at top 9 knock-outs at bottom |
| Cable cross section | 1…25 mm² |
| Comb busbar and distribution block compatibility | YES |
| Product weight | 10.2 kg |
| Height | External: 422 mm |
| Width | External: 625 mm |
| Depth | External : 90 mm |
| Colour | White (RAL 9003) |
| Product compatibility | Easy9 MCB Easy9 switch Easy9 RCCB |
| Environment | |
| Standards | IEC 61439 |
| IP degree of protection | IP43 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11 cm |
| Package 1 Width | 47 cm |
| Package 1 Length | 68 cm |
| Package 1 Weight | 10.29 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
⚡ Key Features
- 35mm DIN rail and neutral busbar pre-fitted — ready to accept MCBs, RCCBs, RCBOs, and surge protection devices directly from the box with no additional mounting hardware.
- Knock-out cable entry points on top, bottom, and sides — accommodate PVC conduit, steel conduit, trunking, or direct cable entry without drilling the enclosure body.
- Flame-retardant thermoplastic construction (UL 94 V-0) — self-extinguishes within 10 seconds; does not propagate flame in the event of internal fault or external fire exposure.
- Manufactured to IEC 61439-3 / IS 8623 — complies with the applicable Indian BIS and IEC international standards for this product category.
- BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
- Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
- GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
- Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
🔗 Compatible Products & Accessories
The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:
EZ9F71116EZ9F71216EZ9S66463EZ9F71416EZ9R35263EZ9R35463
