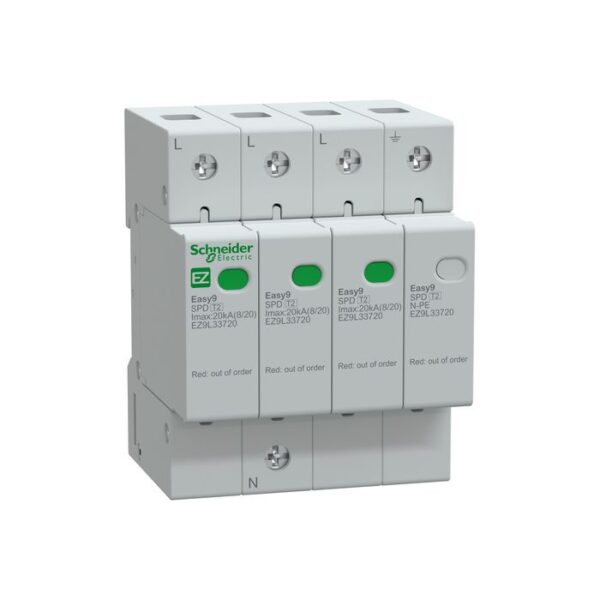

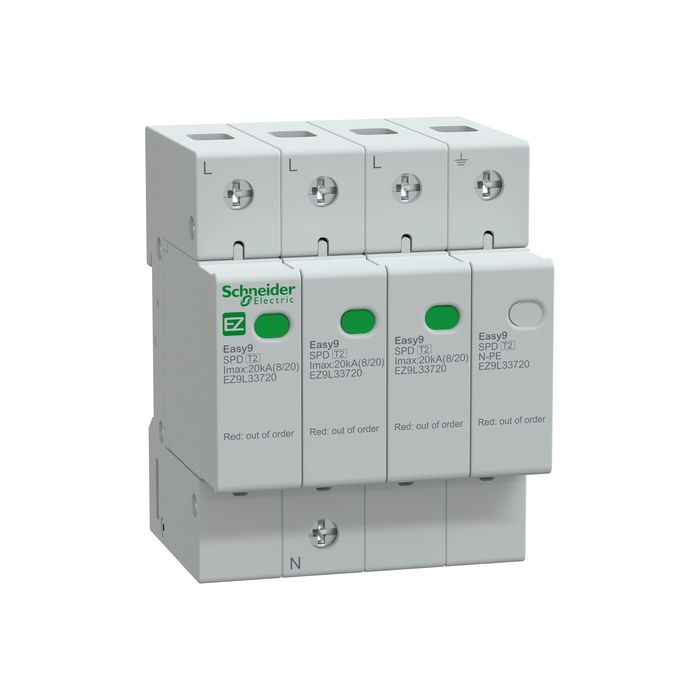

Easy9 Surge Arrestor T2 3P-N 20kA 400V – Schneider Electric
Model: EZ9L33720
Product Description
The Easy9 Surge Arrestor T2 3P-N 20kA 400V from Schneider Electric is a high-quality protective device designed to safeguard your electrical installations against transient overvoltages caused by lightning strikes or switching operations.
This Type 2 surge arrester features a 3P+N configuration with a maximum discharge current of 20kA (8/20μs) and is rated for 400V systems. It provides reliable protection for your electrical equipment in residential, commercial, and light industrial applications.
Key Features:
- Type 2 Surge Protection – Protects against indirect lightning strikes and switching overvoltages
- 3P+N Configuration – Suitable for three-phase systems with neutral
- 20kA Maximum Discharge Current (8/20μs) – High protection level
- 400V Rated Voltage – For standard low voltage applications
- Visual Status Indicator – Easy monitoring of protection status
- Compact Design – Space-saving solution for your electrical panel
- Easy Installation – Compatible with Easy9 enclosures
- High-Quality Construction – From Schneider Electric, a leader in electrical protection
Applications:
- Residential electrical installations
- Commercial buildings
- Small industrial facilities
- Service entrance protection
- Sub-distribution boards
Technical Specifications:
| Brand | Schneider Electric |
| Model Number | EZ9L33720 |
| Product Type | Type 2 Surge Arrestor |
| Configuration | 3P+N |
| Maximum Discharge Current (Imax) | 20kA (8/20μs) |
| Rated Voltage | 400V |
| Protection Level | Up |
| Mounting | DIN rail |
| Width | 4 modules (72mm) |
| Standards | IEC 61643-11 |
Protect your valuable electrical equipment with the reliable Schneider Electric Easy9 Surge Arrestor. Order now at myelectric.in for fast delivery across India.
