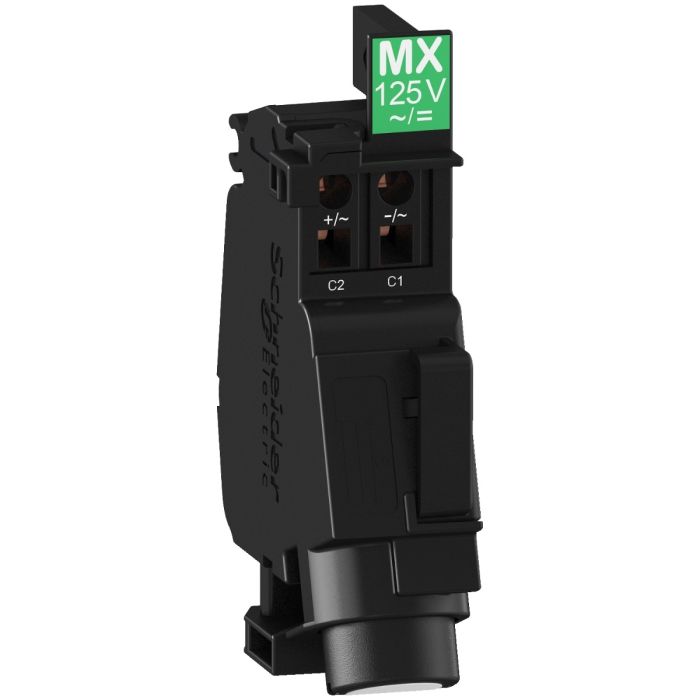

GV4AS137 | COIL ST MX 110-130V AC/DC FOR GV4 BV4 – Schneider Electric

Name: GV4AS137 | COIL ST MX 110-130V AC/DC FOR GV4 BV4 - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: GV4AS137
Price: 7465.00 INR
Availability: OutOfStock

SKU: GV4AS137

₹7,465.00 Excl. GST

Out of stock

13 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-17%

GV4P80N | MotBreak GV4P Therm/Mag 80A 50kA Elink – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: GV4P80N

Looking for the GV4AS137 | COIL ST MX 110-130V AC/DC FOR GV4 BV4? This genuine Schneider Electric electrical component from the TeSys range is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 110–130V AC/DC. Order part number GV4AS137 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	GV4AS137
Category	Electrical Component
Main
Range	TeSys
Device short name	MX
Product or component type	Voltage release
Device application	Control
Range compatibility	TeSys TeSys GV4 TeSys TeSys BV4
Voltage release type	Shunt trip release
[Uc] control circuit voltage	110…130 V AC 50/60 Hz 125 V DC
Complementary
[Ui] rated insulation voltage	130 V conforming to IEC 60947-1
Threshold tripping voltage	0.7…1.1 Un failsafe opening < 0.7 Un possible opening
Impulse duration	>= 20 ms
Mounting mode	Internal mounting
Maximum inrush power in VA	6 VA
Maximum inrush power in W	4 W
Maximum hold-in power consumption in VA	10 VA
Maximum hold-in power consumption in W	1 W
Mechanical durability	20000 cycles
Operating time	< 50 ms
Connections – terminals	Spring terminals 1 0.5…1.5 mm² – cable stiffness: flexible without cable end
Wire stripping length	8 mm
Environment
Quantity per set	Set of 1
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	3.500 cm
Package 1 Width	6.000 cm
Package 1 Length	8.500 cm
Package 1 Weight	64.000 g
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	9.000 cm
Package 2 Width	13.000 cm
Package 2 Length	18.500 cm
Package 2 Weight	696.000 g
Unit Type of Package 3	S03
Number of Units in Package 3	10
Package 3 Height	30.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	1.120 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

110–130V AC/DC coil or control supply voltage — directly compatible with standard panel control circuits.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

GV4PE115BGV4LE80NGV4PE115NGV4P115BGV4P115NGV4LE50NGV4PE80BGV4PE115SGV4PE80NGV4P80NGV4PE80SGV4PE50BGV4LE25NGV4LE12NGV4PE50NGV4P50NGV4LE115NGV4LE80SGV4L80NGV4L115N

❓ Frequently Asked Questions

Q: The GV4AS137 has a coil voltage of 110–130V AC/DC — what control supply is needed?

A: This Schneider Electric device requires a 110–130V AC/DC control supply connected to the coil terminals (A1 and A2). For DC coils, observe polarity where marked. DC coils produce no inrush and are preferred for PLC output cards. Always fit a surge suppressor across the coil when switching with a PLC or solid-state relay.
