GV2RT05 | GV2 MOTOR CB HIGH INRUSH 0.63-1A TOGGLE - Schneider Electric - Image 1
Click to enlarge

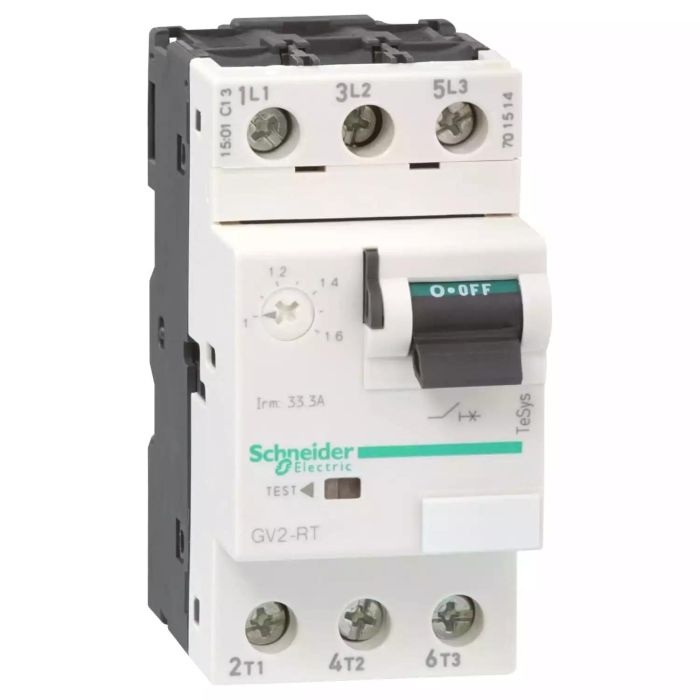

    GV2RT05 | GV2 MOTOR CB HIGH INRUSH 0.63-1A TOGGLE – Schneider Electric

    SKU: GV2RT05

    ₹14,820.00 Excl. GST

    Out of stock

    Out of stock

    17 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Additional Addons/Accessories

    -55%

    GVAM11 | GV2 GV3 AUX SHORT CCT C/O LHS – Schneider Electric

    Schneider Electric
    Original price was: ₹3,770.00.Current price is: ₹1,696.50. Excl. GST
    Add to basket
    SKU: GVAM11
    Placeholder
    -55%

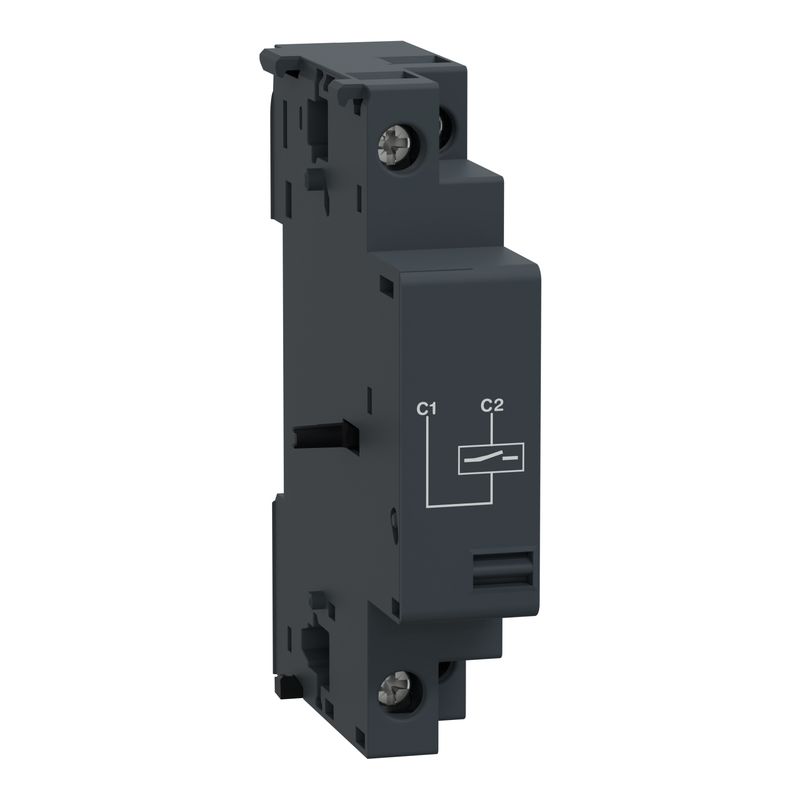

    GVAS415 | TeSys SHUNT TRIP 415V RHS MOUNT – Schneider Electric

    Original price was: ₹14,200.00.Current price is: ₹6,390.00. Excl. GST
    Add to basket
    SKU: GVAS415
    -55%

    GVAS385 | GV2 GV3 SHUNT TRIP 415V RHS MOUNT – Schneider Electric

    Schneider Electric
    Original price was: ₹7,205.00.Current price is: ₹3,242.25. Excl. GST
    Add to basket
    SKU: GVAS385
    -57%

    GVAU115 | TeSys UNDERVOLT TRIP 115V RHS MT – Schneider Electric

    Schneider Electric
    Original price was: ₹8,005.00.Current price is: ₹3,442.15. Excl. GST
    Add to basket
    SKU: GVAU115
    GVAD1001 TeSys GV2 GV3 auxiliary contact 1 NC 1 NO fault Schneider Electric gvad1001 image 1500x1500
    -56%

    GVAD1001 | TeSys GV2 & GV3 – auxiliary contact – 1 NC + 1 NO (fault) – Schneider Electric

    Schneider Electric
    Original price was: ₹3,945.00.Current price is: ₹1,735.80. Excl. GST
    Add to basket
    SKU: GVAD1001
    Placeholder
    -55%

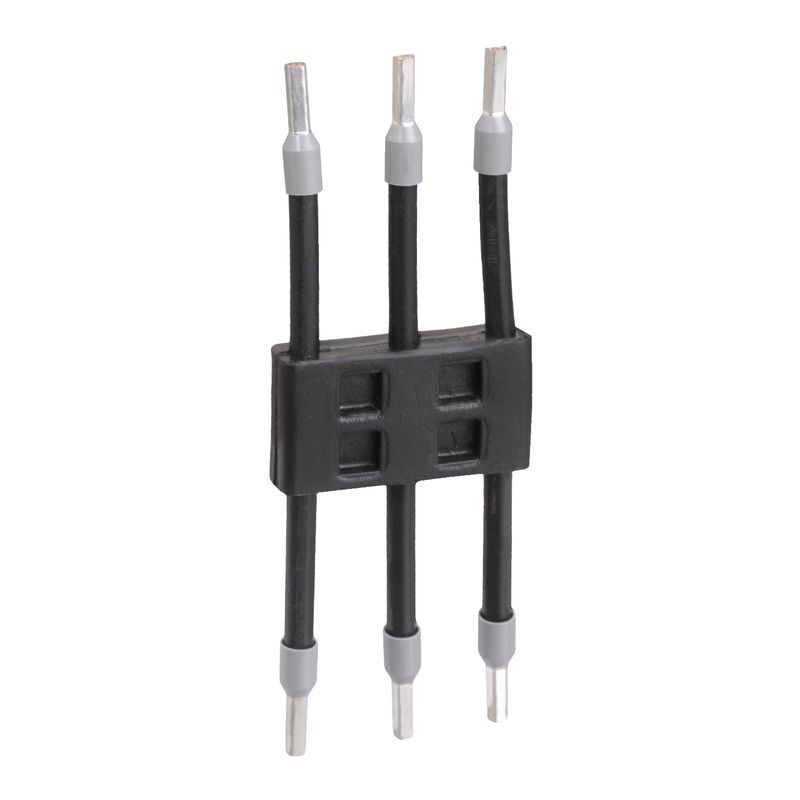

    GV1G02 | 3 POLES FLEXIBLE LINK – Schneider Electric

    Original price was: ₹2,295.00.Current price is: ₹1,032.75. Excl. GST
    Add to basket
    SKU: GV1G02
    GVAN20 TeSys GV2 GV3 auxiliary contact block 2 NO Schneider Electric gvan20 image web
    -58%

    GVAN20 | TeSys GV2 & GV3 – auxiliary contact block – 2 NO – Schneider Electric

    Schneider Electric
    Original price was: ₹3,025.00.Current price is: ₹1,270.50. Excl. GST
    Add to basket
    SKU: GVAN20
    Placeholder
    -55%

    GVAU226 | TeSys UNDERVOLT 240V RHS MOUNT – Schneider Electric

    Original price was: ₹12,155.00.Current price is: ₹5,469.75. Excl. GST
    Add to basket
    SKU: GVAU226
    GVAD1010 TeSys GV2 GV3 auxiliary contact 1 NO 1 NO fault Schneider Electric gvad1010 image web
    -55%

    GVAD1010 | TeSys GV2 & GV3 – auxiliary contact – 1 NO + 1 NO (fault) – Schneider Electric

    Schneider Electric
    Original price was: ₹3,945.00.Current price is: ₹1,775.25. Excl. GST
    Add to basket
    SKU: GVAD1010
    GVAS225 TeSys GV2 GV3 shunt trip 220 240 V AC 50 Hz Schneider Electric gvas225 image 1500x1500
    -56%

    GVAS225 | TeSys GV2 & GV3 – shunt trip – 220…240 V AC 50 Hz – Schneider Electric

    Schneider Electric
    Original price was: ₹7,205.00.Current price is: ₹3,170.20. Excl. GST
    Add to basket
    SKU: GVAS225
    -55%

    GVAS115 | GV2 GV3 SHUNT TRIP 115V RHS MOUNT – Schneider Electric

    Schneider Electric
    Original price was: ₹7,205.00.Current price is: ₹3,242.25. Excl. GST
    Add to basket
    SKU: GVAS115
    GVAD0110 TeSys GV2 GV3 auxiliary contact 1 NO 1 NC fault Schneider Electric gvad0110 image 1500x1500
    -55%

    GVAD0110 | TeSys GV2 & GV3 – auxiliary contact – 1 NO + 1 NC (fault) – Schneider Electric

    Schneider Electric
    Original price was: ₹11,695.00.Current price is: ₹5,262.75. Excl. GST
    Add to basket
    SKU: GVAD0110
    Placeholder
    -55%

    LA9LB920 | TESYS CURRENT LIMITEUR – Schneider Electric

    Original price was: ₹23,445.00.Current price is: ₹10,550.25. Excl. GST
    Add to basket
    SKU: LA9LB920
    Placeholder
    -55%

    GVAS025 | TeSys SHUNT TRIP 24V RHS MOUNT – Schneider Electric

    Original price was: ₹3,100.00.Current price is: ₹1,395.00. Excl. GST
    Add to basket
    SKU: GVAS025
    Placeholder
    -48%

    A9MEM1573 | PowerTag Energy F63 3P – Schneider Electric

    Original price was: ₹26,521.00.Current price is: ₹13,790.92. Excl. GST
    Add to basket
    SKU: A9MEM1573
    GVAU225 TeSys GV2 GV3 undervoltage trip 220 240 V AC 50 Hz Schneider Electric gvau225 image 1500x1500
    -30%

    GVAU225 | TeSys GV2 & GV3 – undervoltage trip – 220…240 V AC 50 Hz – Schneider Electric

    Schneider Electric
    Original price was: ₹7,205.00.Current price is: ₹5,043.50. Excl. GST
    Add to basket
    SKU: GVAU225
    Placeholder
    -55%

    GV2AF02 | GV2ME-LE MOUNTING PLATE – SCREW – Schneider Electric

    Original price was: ₹1,320.00.Current price is: ₹594.00. Excl. GST
    Add to basket
    SKU: GV2AF02
    GVAN11 TeSys GV2 GV3 auxiliary contact block 1 NO 1 NC Schneider Electric gvan11 image web
    -58%

    GVAN11 | TeSys GV2 & GV3 – auxiliary contact block – 1 NO + 1 NC – Schneider Electric

    Schneider Electric
    Original price was: ₹3,025.00.Current price is: ₹1,270.50. Excl. GST
    Add to basket
    SKU: GVAN11
    Placeholder
    -44%

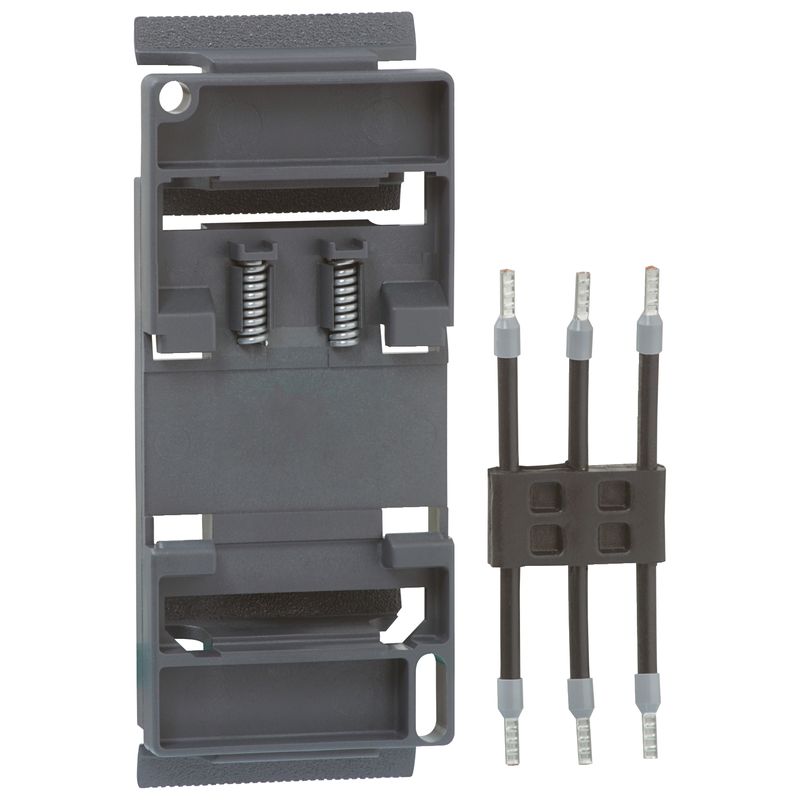

    GK2AF01 | MOUNTING PLATE – Schneider Electric

    Original price was: ₹2,980.00.Current price is: ₹1,668.80. Excl. GST
    Add to basket
    SKU: GK2AF01
    GVAU385 TeSys GV2 GV3 undervoltage trip 380 400V AC 50Hz Schneider Electric gvau385 image 1500x1500
    -55%

    GVAU385 | TeSys GV2 & GV3 – undervoltage trip – 380…400V AC 50Hz – Schneider Electric

    Schneider Electric
    Original price was: ₹7,205.00.Current price is: ₹3,242.25. Excl. GST
    Add to basket
    SKU: GVAU385
    GVAD0101 TeSys GV2 GV3 auxiliary contact 1 NC 1 NC fault Schneider Electric gvad0101 image 1500x1500
    -55%

    GVAD0101 | TeSys GV2 & GV3 – auxiliary contact – 1 NC + 1 NC (fault) – Schneider Electric

    Schneider Electric
    Original price was: ₹8,545.00.Current price is: ₹3,845.25. Excl. GST
    Add to basket
    SKU: GVAD0101
    GV2AF3 TeSys GV2 Combination blocks with contactor LC1D09 D38 Schneider Electric gv2af3
    -55%

    GV2AF3 | TeSys GV2 – Combination blocks – with contactor LC1D09…D38 – Schneider Electric

    Schneider Electric
    Original price was: ₹1,410.00.Current price is: ₹634.50. Excl. GST
    Add to basket
    SKU: GV2AF3
    GV1G09 TeSys GV2, TeSys D TeSys U terminal block 3P from the top Schneider Electric gv1g09 da19 web
    -55%

    GV1G09 | TeSys GV2, TeSys D & TeSys U – terminal block – 3P – from the top – Schneider Electric

    Schneider Electric
    Original price was: ₹4,065.00.Current price is: ₹1,829.25. Excl. GST
    Add to basket
    SKU: GV1G09
    Placeholder
    -14%

    GVAU415 | TeSys UNDERVOLT TRIP 415V RHS MT – Schneider Electric

    Original price was: ₹3,100.00.Current price is: ₹2,666.00. Excl. GST
    Add to basket
    SKU: GVAU415

      Sourced through authorised channels, the Schneider Electric GV2RT05 electrical component from the TeSys Deca range delivers dependable performance for industrial, commercial, and infrastructure applications. Key ratings include 1 A, 690 V AC 50/60 Hz, 3P. myelectric.in stocks the GV2RT05 | GV2 MOTOR CB HIGH INRUSH 0.63-1A TOGGLE for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

      📋 Technical Specifications

      Product
      BrandSchneider Electric
      Part Number / SKUGV2RT05
      CategoryElectrical Component
      Main
      RangeTeSys Deca
      Product nameTeSys GV2
      Product or component typeMotor circuit breaker
      Device short nameGV2RT
      Device applicationMotor protection
      Transformer
      Trip unit technologyThermal-magnetic
      Complementary
      Poles description3P
      Network typeAC
      Utilisation categoryCategory A conforming to IEC 60947-2
      AC-3 conforming to IEC 60947-4-1
      AC-3e conforming to IEC 60947-4-1
      Network frequency50/60 Hz conforming to IEC 60947-2
      Motor power kW0.09 kW at 220/230 V AC 50/60 Hz motor protection high peak current
      0.12 kW at 220/230 V AC 50/60 Hz motor protection high peak current
      0.25 kW at 400/415 V AC 50/60 Hz motor protection high peak current
      0.37 kW at 400/415 V AC 50/60 Hz motor protection high peak current
      0.25 kW at 440 V AC 50/60 Hz motor protection high peak current
      0.37 kW at 440 V AC 50/60 Hz motor protection high peak current
      0.37 kW at 500 V AC 50/60 Hz motor protection high peak current
      0.55 kW at 690 V AC 50/60 Hz motor protection high peak current
      0.63 kW at 440 V AC 50/60 Hz transformer protection
      0.63 kW at 500 V AC 50/60 Hz transformer protection
      1 kW at 690 V AC 50/60 Hz transformer protection
      Breaking capacity100 kA Icu at 220/230 V AC 50/60 Hz conforming to IEC 60947-2
      100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
      100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
      100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
      100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
      Control typeToggle
      [In] rated current1 A
      Thermal protection adjustment range0.63…1 A conforming to IEC 60947-2
      Magnetic tripping current22 A
      [Ith] conventional free air thermal current1 A conforming to IEC 60947-2
      [Ue] rated operational voltage690 V AC 50/60 Hz conforming to IEC 60947-2
      [Ui] rated insulation voltage690 V AC 50/60 Hz conforming to IEC 60947-2
      [Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-2
      Suitability for isolationYes conforming to IEC 60947-1
      Power dissipation per pole2.5 W
      Mechanical durability100000 cycles
      Electrical durability100000 cycles for AC-3 at 415 V In
      100000 cycles for AC-3e at 415 V In
      Rated dutyUninterrupted conforming to IEC 60947-4-1
      Connections – terminalsPower circuit: screw clamp terminal 2 cable(s) 1…6 mm² – solid
      Power circuit: screw clamp terminal 2 cable(s) 1.5…6 mm² – flexible without cable end
      Power circuit: screw clamp terminal 2 cable(s) 1…4 mm² – flexible with cable end
      Tightening torque1.7 N.m – on screw clamp terminal
      Fixing mode35 mm symmetrical DIN rail: clipped
      Panel: screwed (with adaptor plate)
      Mounting positionHorizontal
      Vertical
      Width45 mm
      Height89 mm
      Depth78.5 mm
      Environment
      StandardsEN/IEC 60947-2
      EN/IEC 60947-4-1
      Product certificationsCCC
      UL
      CSA
      EAC
      LROS (Lloyds register of shipping)
      BV
      UKCA
      IK degree of protectionIK04
      IP degree of protectionIP20 conforming to IEC 60529
      Climatic withstandconforming to IACS E10
      Ambient air temperature for storage-40…80 °C
      Fire resistance960 °C conforming to IEC 60695-2-11
      Ambient air temperature for operation-20…60 °C
      Mechanical robustnessShocks: 30 Gn for 11 ms
      Vibrations: 5 Gn, 5…150 Hz
      Operating altitude<= 2000 m
      Packing Units
      Unit Type of Package 1PCE
      Number of Units in Package 11
      Package 1 Height4.800 cm
      Package 1 Width9.300 cm
      Package 1 Length8.700 cm
      Package 1 Weight229.000 g
      Unit Type of Package 2S02
      Number of Units in Package 224
      Package 2 Height15.000 cm
      Package 2 Width30.000 cm
      Package 2 Length40.000 cm
      Package 2 Weight5.799 kg
      Unit Type of Package 3P06
      Number of Units in Package 3384
      Package 3 Height75.000 cm
      Package 3 Width60.000 cm
      Package 3 Length80.000 cm
      Package 3 Weight102.564 kg
      Contractual warranty
      Warranty (in months)18

      ⚡ Key Features

      • 0.63–1 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
      • Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
      • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
      • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
      • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
      • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

      🔗 Compatible Products & Accessories

      The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

      GVAN11GVAD1010GVAD0110GVAN20GVAD1001GVAU385GVAS225GVAU225GVAS025GVAD0101GVAM11GVAU226GVAS385GVAU415GVAS115GVAU115GVAS415LA9LB920GV2AF3GV1G09GV1G02GV2AF02GK2AF01A9MEM1573

      ❓ Frequently Asked Questions

      Q: What is the significance of the 0.63–1 A rating on the GV2RT05?

      A: The 0.63–1 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

      Customer Reviews

      Related Products

      Solar Controller for 415V Induction motor pumps,10HP,Without RMU L T CS91466PO1O newbradd 7

      Solar Controller for 415V Induction motor pumps,3HP,Without RMU | L&T – CS91463PO1O

      Lauritz Knudsen (L&T)
      Read more
      SKU: CS91463PO1O
      MU-G10HN, 10HP, 20-32A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application L T CS92

      MU-G7.5,7.5HP,13-22A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application | L&T – CS92103SODO

      Lauritz Knudsen (L&T)
      ₹12,550.00 Excl. GST
      Add to basket
      SKU: CS92103SODO
      XB5AR31N Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO Schneider Electric xb5
      -46%

      XB5AR31N | Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO – Schneider Electric

      Schneider Electric
      Original price was: ₹675.00.Current price is: ₹364.50. Excl. GST
      Add to basket
      SKU: XB5AR31N
      ZB2BW36C Ø 22 mm fixing hole push button head with blue lamp Schneider Electric zb2bw36c
      -35%

      ZB2BW36C | Ø 22 mm fixing hole – push button head with blue lamp – Schneider Electric

      Schneider Electric
      Original price was: ₹305.00.Current price is: ₹198.25. Excl. GST
      Add to basket
      SKU: ZB2BW36C
      Placeholder
      -20%

      MS13MD09 | 7MDL, 1HP 3 PHASE DOL STARTER – Schneider Electric

      Schneider Electric
      Original price was: ₹5,530.00.Current price is: ₹4,424.00. Excl. GST
      Add to basket
      SKU: MS13MD09
      Placeholder
      -50%

      30002572 | EM1200 Energy meter Cl 0.5 RS485 LCD – Schneider Electric

      Schneider Electric
      Original price was: ₹6,271.00.Current price is: ₹3,135.50. Excl. GST
      Add to basket
      SKU: 30002572
