GV4LE03N6 Motor Breaker GV4LE Mag 3.5A 50kA lug Schneider Electric gv4le03n6
Click to enlarge

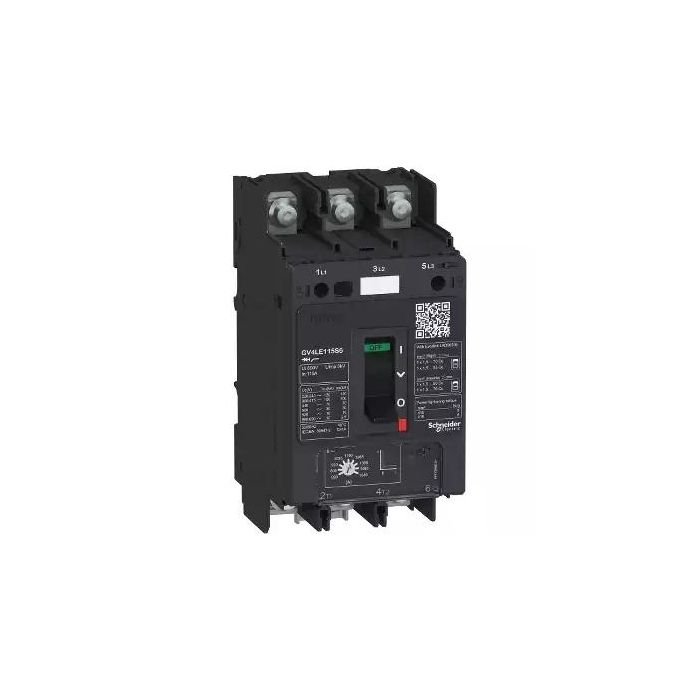

    GV4LE03N6 | Motor Breaker GV4LE Mag 3.5A 50kA lug – Schneider Electric

    SKU: GV4LE03N6

    ₹36,475.00 Excl. GST

    Out of stock

    Out of stock

    20 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Additional Addons/Accessories

    LV426920 | Phase barrier IEC/UL Dis and VIGI and GV – Schneider Electric

    Schneider Electric
    ₹680.00 Excl. GST
    Add to basket
    SKU: LV426920

    GV4AU137 | Coil Uvr Mn,110-130V Ac/Dc For Gv4,Bv4 – Schneider Electric

    Schneider Electric
    ₹13,300.00 Excl. GST
    Add to basket
    SKU: GV4AU137
    Placeholder
    -46%

    LV429375 | SEALING ACCESSORIES – Schneider Electric

    Original price was: ₹1,400.00.Current price is: ₹756.00. Excl. GST
    Add to basket
    SKU: LV429375
    -14%

    GV4ADN01 | DIRECT ROTARY HANDLE BLACK GV4 BV4 – Schneider Electric

    Schneider Electric
    Original price was: ₹3,905.00.Current price is: ₹3,358.30. Excl. GST
    Add to basket
    SKU: GV4ADN01

    GV4AS027 | COIL ST MX 24V AC/DC FOR GV4 BV4 – Schneider Electric

    Schneider Electric
    ₹7,465.00 Excl. GST
    Add to basket
    SKU: GV4AS027
    -55%

    LAD96590 | Transparent terminal shield for C Lug – Schneider Electric

    Schneider Electric
    Original price was: ₹7,855.00.Current price is: ₹3,534.75. Excl. GST
    Add to basket
    SKU: LAD96590
    -46%

    LV426940 | Spreader 3P IEC Dis and GV4 – Schneider Electric

    Schneider Electric
    Original price was: ₹1,330.00.Current price is: ₹718.20. Excl. GST
    Add to basket
    SKU: LV426940
    -14%

    GV4AS287 | COIL ST MX 208-277V 50/60HZ FOR GV4 BV4 – Schneider Electric

    Schneider Electric
    Original price was: ₹7,465.00.Current price is: ₹6,419.90. Excl. GST
    Add to basket
    SKU: GV4AS287

    GV4AU415 | COIL UVR MN 380-415V 50HZ FOR GV4 BV4 – Schneider Electric

    Schneider Electric
    ₹13,300.00 Excl. GST
    Add to basket
    SKU: GV4AU415
    -14%

    GV4APN04 | EXTENDED ROTARY HANDLE IP65 RED GV4 BV4 – Schneider Electric

    Schneider Electric
    Original price was: ₹6,105.00.Current price is: ₹5,250.30. Excl. GST
    Add to basket
    SKU: GV4APN04
    Placeholder
    -46%

    LV426937 | OPEN DOOR SHAFT OPERATOR NSXM PP B GV4 – Schneider Electric

    Original price was: ₹1,470.00.Current price is: ₹793.80. Excl. GST
    Add to basket
    SKU: LV426937
    -14%

    GV4AU027 | COIL UVR MN 24V AC/DC FOR GV4 BV4 – Schneider Electric

    Schneider Electric
    Original price was: ₹13,300.00.Current price is: ₹11,438.00. Excl. GST
    Add to basket
    SKU: GV4AU027
    -14%

    GV4ADN02 | DIRECT ROTARY HANDLE RED GV4 BV4 – Schneider Electric

    Schneider Electric
    Original price was: ₹5,340.00.Current price is: ₹4,592.40. Excl. GST
    Add to basket
    SKU: GV4ADN02
    Placeholder
    -48%

    A9MEM1580 | PowerTag Energy F160 3P/3PN – Schneider Electric

    Original price was: ₹34,247.00.Current price is: ₹17,808.44. Excl. GST
    Add to basket
    SKU: A9MEM1580
    GV4AE11 Auxiliary contact, TeSys GV4, 690VAC, 1 NO NC Schneider Electric gv4ae11 image 1500x1500
    -55%

    GV4AE11 | Auxiliary contact, TeSys GV4, 690VAC, 1 NO/NC – Schneider Electric

    Schneider Electric
    Original price was: ₹2,620.00.Current price is: ₹1,179.00. Excl. GST
    Add to basket
    SKU: GV4AE11

    GV4AS487 | COIL ST MX 380-480V AC FOR GV4 BV4 – Schneider Electric

    Schneider Electric
    ₹7,465.00 Excl. GST
    Add to basket
    SKU: GV4AS487

    GV4APN01 | EXTENDED ROTARY HANDLE BLACK GV4 BV4 – Schneider Electric

    Schneider Electric
    ₹5,800.00 Excl. GST
    Add to basket
    SKU: GV4APN01

      Looking for the GV4LE03N6 | Motor Breaker GV4LE Mag 3.5A 50kA lug? This genuine Schneider Electric electrical component from the TeSys Deca range is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 3.5 A, 690 V AC 50/60 Hz, 3P. Order part number GV4LE03N6 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

      📋 Technical Specifications

      Product
      BrandSchneider Electric
      Part Number / SKUGV4LE03N6
      CategoryElectrical Component
      Main
      RangeTeSys Deca
      Range of productTeSys GV4
      Device short nameGV4L
      Product nameTeSys GV4
      Product or component typeMotor circuit breaker
      Device applicationMotor protection
      Trip unit technologyMagnetic
      Electronic
      Complementary
      Poles description3P
      Utilisation categoryCategory A conforming to IEC 60947-2
      AC-3 conforming to IEC 60947-4-1
      Operating positionAny position
      Motor power kW0.55 kW at 400…415 V AC 50/60 Hz
      0.75 kW at 400…415 V AC 50/60 Hz
      0.75 kW at 500 V AC 50/60 Hz
      1.1 kW at 500 V AC 50/60 Hz
      1.1 kW at 660…690 V AC 50/60 Hz
      1.5 kW at 660…690 V AC 50/60 Hz
      1.5 kW at 500 V AC 50/60 Hz
      2.2 kW at 660…690 V AC 50/60 Hz
      1.1 kW at 400…415 V AC 50/60 Hz
      Breaking capacity100 kA Icu at 220…240 V AC 50/60 Hz conforming to IEC 60947-2
      50 kA Icu at 380…415 V AC 50/60 Hz conforming to IEC 60947-2
      50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
      15 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
      8 kA Icu at 660…690 V AC 50/60 Hz conforming to IEC 60947-2
      25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
      Control typeToggle
      [In] rated current3.5 A
      Magnetic tripping current21…49 A
      [Ue] rated operational voltage690 V AC 50/60 Hz conforming to IEC 60947-2
      [Ui] rated insulation voltage800 V AC 50/60 Hz conforming to IEC 60947-2
      [Ith] conventional free air thermal current115 A conforming to IEC 60947-4-1
      [Uimp] rated impulse withstand voltage8 kV conforming to IEC 60947-2
      Power dissipation per pole6.1 W
      Mechanical durability40000 cycles
      Electrical durability5000 cycles for AC-3 at 415 V closing
      5000 cycles for AC-3 at 415 V opening
      maximum operating rate25 cyc/h
      Rated dutyContinuous conforming to IEC 60947-4-1
      Connection pitch27 mm without spreaders
      35 mm with spreaders
      Connections – terminalsLugs-ring terminals
      Tightening torque9 N.m for cable 16…95 mm²
      5 N.m for cable 1.5…10 mm²
      Mechanical robustnessVibrations: +/- 1 mm 2…13.2 Hz conforming to IEC 60068-2-6
      Vibrations: 0.7 gn 13.2…100 Hz conforming to IEC 60068-2-6
      Shocks: 15 gn 11 ms conforming to IEC 60068-2-27
      Height155 mm
      Width81 mm
      Depth116 mm
      Product weight1.5 kg
      ColourGrey (RAL 7016)
      Suitability for isolationYes conforming to IEC 60947-1
      Environment
      StandardsEN/IEC 60947-2
      EN/IEC 60947-4-1
      Product certificationsIEC
      CCC
      EAC
      EU-RO MR
      Climatic withstandconforming to IACS E10
      IK degree of protectionIK07 conforming to IEC 62262
      Pollution degree3
      IP degree of protectionIP40 conforming to IEC 60529
      Ambient air temperature for storage-50…85 °C
      Fire resistance960 °C conforming to IEC 60695-2-11
      Operating altitude5000 m
      Ambient air temperature for operation-25…70 °C
      Packing Units
      Unit Type of Package 1PCE
      Number of Units in Package 11
      Package 1 Height12.5 cm
      Package 1 Width9 cm
      Package 1 Length22 cm
      Package 1 Weight1.576 kg
      Contractual warranty
      Warranty (in months)18

      ⚡ Key Features

      • 3.5 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
      • 50 kA short-circuit withstand or breaking capacity — protects the installation at high fault current levels.
      • Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
      • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
      • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
      • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
      • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

      🔗 Compatible Products & Accessories

      The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

      29370LV429375GV4APN01LV426937GV4APN02GV4APN04GV4ADN01GV4ADN02GV4AE11GV4AS287GV4AS137GV4AS487GV4AS027GV4AU247GV4AU027GV4AU415GV4AU137LV426920LV426940LAD96590GV4LUGA9MEM1580

      ❓ Frequently Asked Questions

      Q: What is the significance of the 3.5 A rating on the GV4LE03N6?

      A: The 3.5 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

      Q: What does the 50 kA breaking capacity on the GV4LE03N6 mean in practice?

      A: Breaking capacity (50 kA) is the maximum prospective short-circuit current the GV4LE03N6 can safely interrupt without damage. Before installing, verify that the prospective fault level at the installation point does not exceed 50 kA — this is checked using a fault level calculation or from the upstream transformer impedance data. Installing a breaker with insufficient breaking capacity is a serious safety violation.

      Q: After a short-circuit trip on the GV4LE03N6, can it be reset and reused immediately?

      A: After a short-circuit trip, do not immediately reset the GV4LE03N6. First, identify and clear the fault. Then inspect the device — if there is visible arc damage, melted insulation, or the handle does not reset smoothly, the device must be replaced. The 50 kA rated breaking capacity is not unlimited — it is the maximum fault current the device can interrupt safely for a defined number of operations (typically 1–3 at full Icu rating). After any significant fault, factor replacement into your maintenance budget.
