GV4PE50N6 MotBreak GV4PE Therm Mag 50A 50kA lug Schneider Electric gv4pe50n6
Click to enlarge

GV4PE50N6 | MotBreak GV4PE Therm/Mag 50A 50kA lug – Schneider Electric

SKU: GV4PE50N6

Original price was: ₹70,000.00.Current price is: ₹58,275.00. Excl. GST

Dispatch By : 3 Weeks

Dispatch By : 3 Weeks

14 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-55%

LAD96590 | Transparent terminal shield for C Lug – Schneider Electric

Schneider Electric
Original price was: ₹7,855.00.Current price is: ₹3,534.75. Excl. GST
Add to basket
SKU: LAD96590

GV4AU415 | COIL UVR MN 380-415V 50HZ FOR GV4 BV4 – Schneider Electric

Schneider Electric
₹13,300.00 Excl. GST
Add to basket
SKU: GV4AU415

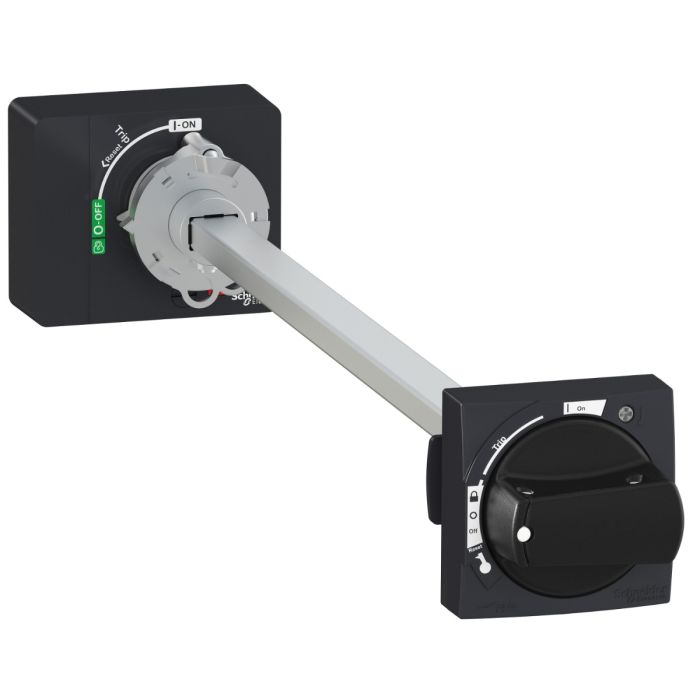

GV4APN01 | EXTENDED ROTARY HANDLE BLACK GV4 BV4 – Schneider Electric

Schneider Electric
₹5,800.00 Excl. GST
Add to basket
SKU: GV4APN01

LV426920 | Phase barrier IEC/UL Dis and VIGI and GV – Schneider Electric

Schneider Electric
₹680.00 Excl. GST
Add to basket
SKU: LV426920
-14%

GV4AS287 | COIL ST MX 208-277V 50/60HZ FOR GV4 BV4 – Schneider Electric

Schneider Electric
Original price was: ₹7,465.00.Current price is: ₹6,419.90. Excl. GST
Add to basket
SKU: GV4AS287
Placeholder
-46%

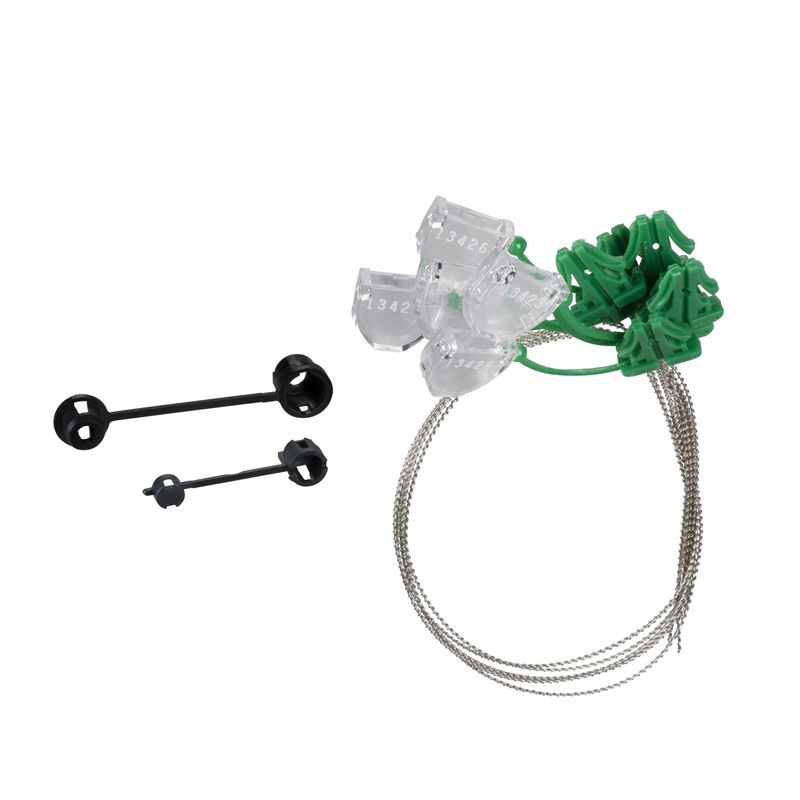

LV429375 | SEALING ACCESSORIES – Schneider Electric

Original price was: ₹1,400.00.Current price is: ₹756.00. Excl. GST
Add to basket
SKU: LV429375

GV4AU137 | Coil Uvr Mn,110-130V Ac/Dc For Gv4,Bv4 – Schneider Electric

Schneider Electric
₹13,300.00 Excl. GST
Add to basket
SKU: GV4AU137
GV4AE11 Auxiliary contact, TeSys GV4, 690VAC, 1 NO NC Schneider Electric gv4ae11 image 1500x1500
-55%

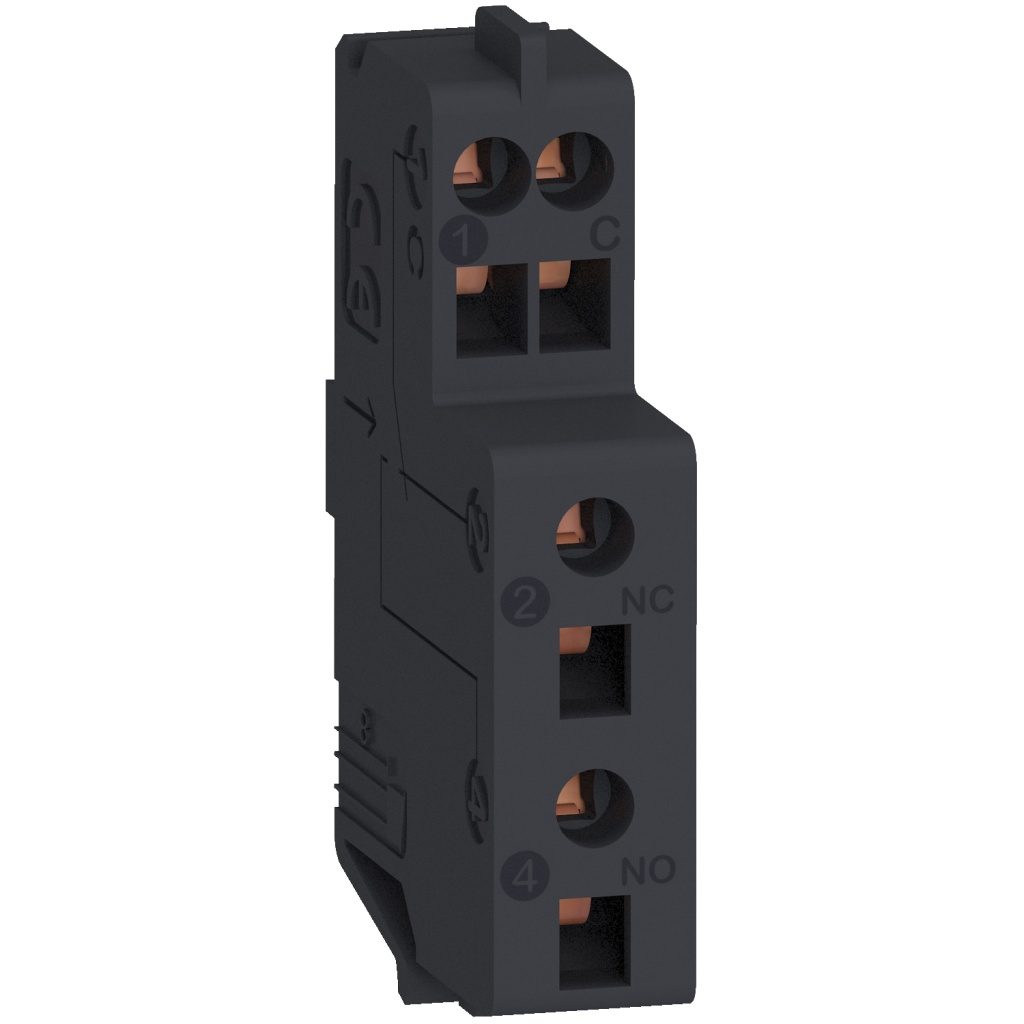

GV4AE11 | Auxiliary contact, TeSys GV4, 690VAC, 1 NO/NC – Schneider Electric

Schneider Electric
Original price was: ₹2,620.00.Current price is: ₹1,179.00. Excl. GST
Add to basket
SKU: GV4AE11

GV4AS027 | COIL ST MX 24V AC/DC FOR GV4 BV4 – Schneider Electric

Schneider Electric
₹7,465.00 Excl. GST
Add to basket
SKU: GV4AS027

GV4AS487 | COIL ST MX 380-480V AC FOR GV4 BV4 – Schneider Electric

Schneider Electric
₹7,465.00 Excl. GST
Add to basket
SKU: GV4AS487
Placeholder
-46%

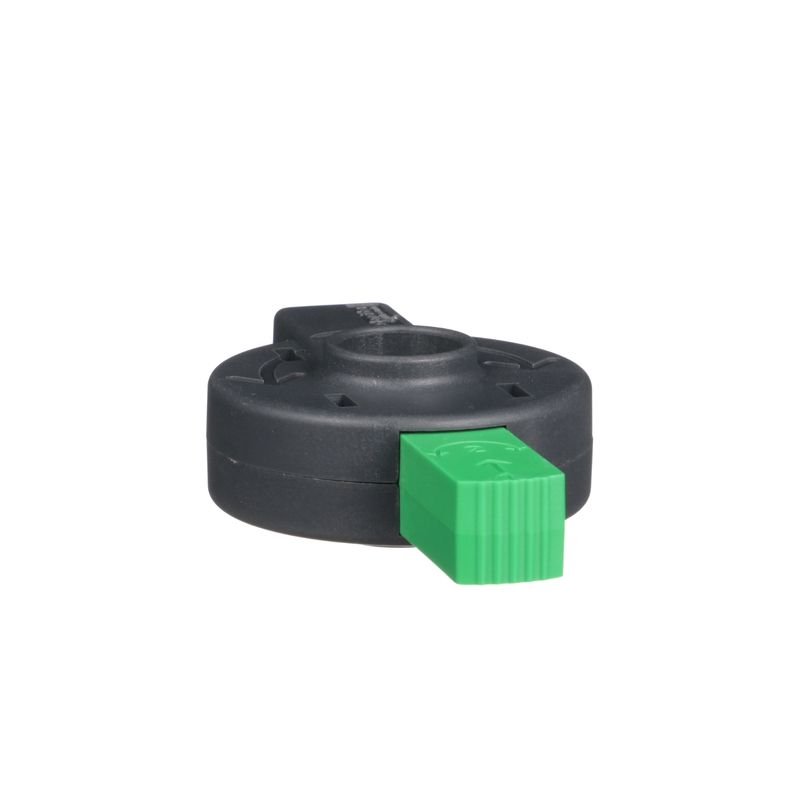

LV426937 | OPEN DOOR SHAFT OPERATOR NSXM PP B GV4 – Schneider Electric

Original price was: ₹1,470.00.Current price is: ₹793.80. Excl. GST
Add to basket
SKU: LV426937
-46%

LV426940 | Spreader 3P IEC Dis and GV4 – Schneider Electric

Schneider Electric
Original price was: ₹1,330.00.Current price is: ₹718.20. Excl. GST
Add to basket
SKU: LV426940
-14%

GV4ADN01 | DIRECT ROTARY HANDLE BLACK GV4 BV4 – Schneider Electric

Schneider Electric
Original price was: ₹3,905.00.Current price is: ₹3,358.30. Excl. GST
Add to basket
SKU: GV4ADN01
-14%

GV4ADN02 | DIRECT ROTARY HANDLE RED GV4 BV4 – Schneider Electric

Schneider Electric
Original price was: ₹5,340.00.Current price is: ₹4,592.40. Excl. GST
Add to basket
SKU: GV4ADN02
Placeholder
-48%

A9MEM1580 | PowerTag Energy F160 3P/3PN – Schneider Electric

Original price was: ₹34,247.00.Current price is: ₹17,808.44. Excl. GST
Add to basket
SKU: A9MEM1580
-14%

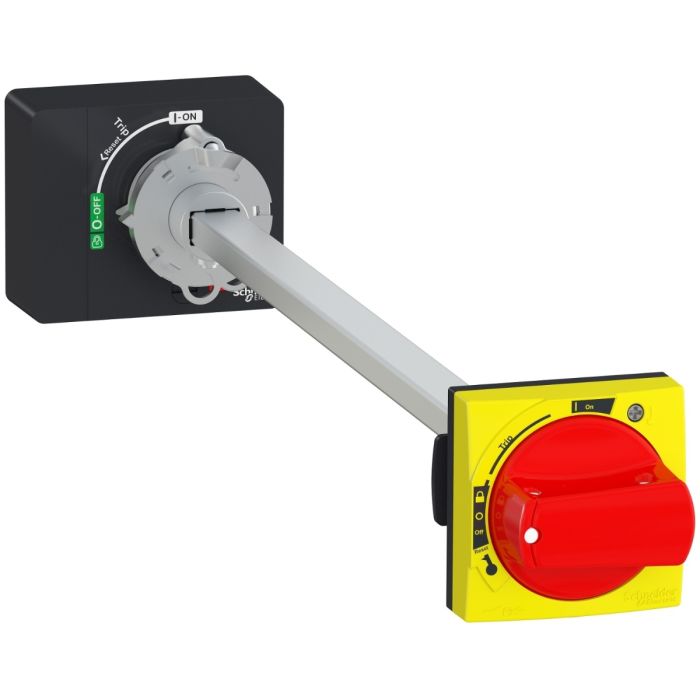

GV4APN04 | EXTENDED ROTARY HANDLE IP65 RED GV4 BV4 – Schneider Electric

Schneider Electric
Original price was: ₹6,105.00.Current price is: ₹5,250.30. Excl. GST
Add to basket
SKU: GV4APN04
-14%

GV4AU027 | COIL UVR MN 24V AC/DC FOR GV4 BV4 – Schneider Electric

Schneider Electric
Original price was: ₹13,300.00.Current price is: ₹11,438.00. Excl. GST
Add to basket
SKU: GV4AU027

    Looking for the GV4PE50N6 | MotBreak GV4PE Therm/Mag 50A 50kA lug? This genuine Schneider Electric electrical component from the TeSys Deca range is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 50 A, 690 V AC 50/60 Hz, 3P. Order part number GV4PE50N6 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

    📋 Technical Specifications

    Product
    BrandSchneider Electric
    Part Number / SKUGV4PE50N6
    CategoryElectrical Component
    Main
    RangeTeSys Deca
    Range of productTeSys GV4
    Device short nameGV4PE
    Product nameTeSys GV4
    Product or component typeMotor circuit breaker
    Device applicationMotor protection
    Trip unit technologyThermal-magnetic
    Electronic
    Complementary
    Poles description3P
    Utilisation categoryCategory A conforming to IEC 60947-2
    AC-3 conforming to IEC 60947-4-1
    Operating positionAny position
    Motor power kW11 kW at 400…415 V AC 50/60 Hz
    15 kW at 500 V AC 50/60 Hz
    18.5 kW at 660…690 V AC 50/60 Hz
    15 kW at 400…415 V AC 50/60 Hz
    18.5 kW at 400…415 V AC 50/60 Hz
    22 kW at 400…415 V AC 50/60 Hz
    18.5 kW at 500 V AC 50/60 Hz
    22 kW at 500 V AC 50/60 Hz
    30 kW at 500 V AC 50/60 Hz
    22 kW at 660…690 V AC 50/60 Hz
    30 kW at 660…690 V AC 50/60 Hz
    37 kW at 660…690 V AC 50/60 Hz
    45 kW at 660…690 V AC 50/60 Hz
    Breaking capacity100 kA Icu at 220…240 V AC 50/60 Hz conforming to IEC 60947-2
    50 kA Icu at 380…415 V AC 50/60 Hz conforming to IEC 60947-2
    50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
    15 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
    65 kA at 208Y/120 V AC 50/60 Hz conforming to UL 60947
    65 kA at 240 V AC 50/60 Hz conforming to UL 60947
    35 kA at 480Y/277 V AC 50/60 Hz conforming to UL 60947
    8 kA Icu at 660…690 V AC 50/60 Hz conforming to IEC 60947-2
    25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
    18 kA at 600Y/347 V AC 50/60 Hz conforming to UL 60947
    Control typeToggle
    [In] rated current50 A
    Magnetic tripping current850 A
    [Ue] rated operational voltage690 V AC 50/60 Hz conforming to IEC 60947-2
    [Ui] rated insulation voltage800 V AC 50/60 Hz conforming to IEC 60947-2
    [Ith] conventional free air thermal current115 A conforming to IEC 60947-4-1
    [Uimp] rated impulse withstand voltage8 kV conforming to IEC 60947-2
    Power dissipation per pole4.6 W
    Mechanical durability40000 cycles
    Electrical durability5000 cycles for AC-3 at 415 V opening
    5000 cycles for AC-3 at 415 V closing
    maximum operating rate25 cyc/h
    Rated dutyContinuous conforming to IEC 60947-4-1
    Connection pitch27 mm without spreaders
    35 mm with spreaders
    Connections – terminalsLugs-ring terminals
    Tightening torque9 N.m for cable 16…95 mm²
    5 N.m for cable 1.5…10 mm²
    Mechanical robustnessVibrations: +/- 1 mm 2…13.2 Hz conforming to IEC 60068-2-6
    Vibrations: 0.7 gn 13.2…100 Hz conforming to IEC 60068-2-6
    Shocks: 15 gn 11 ms conforming to IEC 60068-2-27
    Phase failure sensitivityYes conforming to IEC 60947-4-1
    Height155 mm
    Width81 mm
    Depth116 mm
    Product weight1.45 kg
    ColourGrey (RAL 7016)
    Suitability for isolationYes conforming to IEC 60947-1
    Environment
    StandardsCSA C22.2 No 60947-4-1
    UL 60947-4-1
    EN/IEC 60947-4-1
    EN/IEC 60947-2
    Product certificationsIEC
    UL
    CSA
    CCC
    EAC
    ATEX
    EU-RO MR
    Climatic withstandconforming to IACS E10
    IK degree of protectionIK07 conforming to IEC 62262
    Pollution degree3
    IP degree of protectionIP40 conforming to IEC 60529
    Ambient air temperature for storage-50…85 °C
    Fire resistance960 °C conforming to IEC 60695-2-11
    Operating altitude5000 m
    Ambient air temperature for operation-25…70 °C
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height11.000 cm
    Package 1 Width22.200 cm
    Package 1 Length16.700 cm
    Package 1 Weight1.380 kg
    Unit Type of Package 2S03
    Number of Units in Package 25
    Package 2 Height30.000 cm
    Package 2 Width30.000 cm
    Package 2 Length40.000 cm
    Package 2 Weight9.500 kg
    Unit Type of Package 3P12
    Number of Units in Package 3256
    Package 3 Height110.000 cm
    Package 3 Width80.000 cm
    Package 3 Length120.000 cm
    Package 3 Weight396.000 kg
    Contractual warranty
    Warranty (in months)18

    ⚡ Key Features

    • 50 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
    • 50 kA short-circuit withstand or breaking capacity — protects the installation at high fault current levels.
    • Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
    • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
    • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
    • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
    • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

    🔗 Compatible Products & Accessories

    The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

    29370LV429375GV4APN01LV426937GV4APN02GV4APN04GV4ADN01GV4ADN02GV4AE11GV4AS287GV4AS137GV4AS487GV4AS027GV4AU247GV4AU027GV4AU415GV4AU137LV426920LV426940LAD96590GV4LUGA9MEM1580

    ❓ Frequently Asked Questions

    Q: What is the significance of the 50 A rating on the GV4PE50N6?

    A: The 50 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

    Q: What does the 50 kA breaking capacity on the GV4PE50N6 mean in practice?

    A: Breaking capacity (50 kA) is the maximum prospective short-circuit current the GV4PE50N6 can safely interrupt without damage. Before installing, verify that the prospective fault level at the installation point does not exceed 50 kA — this is checked using a fault level calculation or from the upstream transformer impedance data. Installing a breaker with insufficient breaking capacity is a serious safety violation.

    Q: After a short-circuit trip on the GV4PE50N6, can it be reset and reused immediately?

    A: After a short-circuit trip, do not immediately reset the GV4PE50N6. First, identify and clear the fault. Then inspect the device — if there is visible arc damage, melted insulation, or the handle does not reset smoothly, the device must be replaced. The 50 kA rated breaking capacity is not unlimited — it is the maximum fault current the device can interrupt safely for a defined number of operations (typically 1–3 at full Icu rating). After any significant fault, factor replacement into your maintenance budget.
