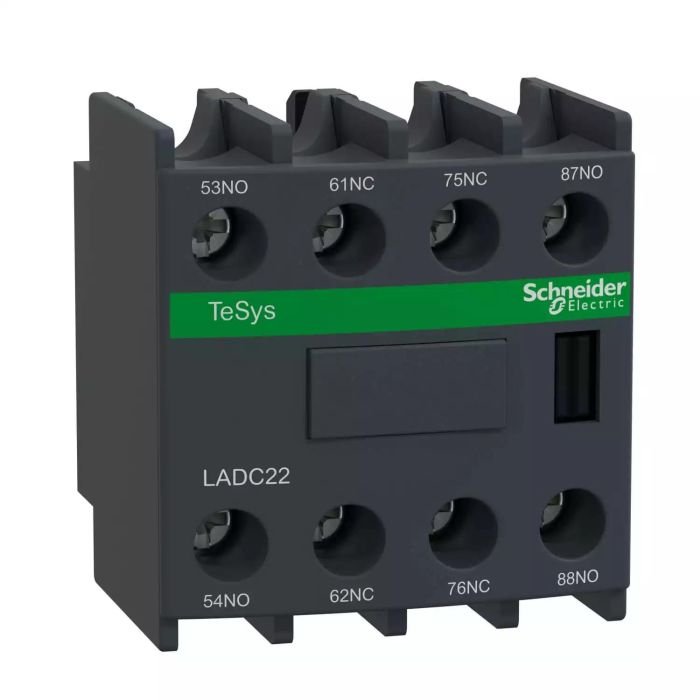

LADC22 | TeSys CONTACTS BLOCK - Schneider Electric - Image 1
Click to enlarge

    LADC22 | TeSys CONTACTS BLOCK – Schneider Electric

    SKU: LADC22

    Original price was: ₹10,575.00.Current price is: ₹4,758.75. Excl. GST

    Dispatch By : 2 Weeks

    Dispatch By : 2 Weeks

    15 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Additional Addons/Accessories

    CAD50E7 TeSys D control relay 5 NO cad50e7 image 1500x1500
    -55%

    CAD50E7 | TeSys D control relay – 5 NO – <= 690 V - 48 V AC standard coil - Schneider Electric

    Schneider Electric
    Original price was: ₹3,605.00.Current price is: ₹1,622.25. Excl. GST
    Add to basket
    SKU: CAD50E7
    CAD32N7 TeSys D control relay 3 NO 2 NC cad32 front 1500x1500
    -55%

    CAD32M7 | TeSys D control relay – 3 NO + 2 NC – <= 690 V - 220 V AC standard coil - Schneider Electric

    Schneider Electric
    Original price was: ₹3,310.00.Current price is: ₹1,489.50. Excl. GST
    Add to basket
    SKU: CAD32M7
    -55%

    CAD32GD | TeSys AUXILIARY CONTACTOR – Schneider Electric

    Schneider Electric
    Original price was: ₹5,010.00.Current price is: ₹2,254.50. Excl. GST
    Add to basket
    SKU: CAD32GD
    -55%

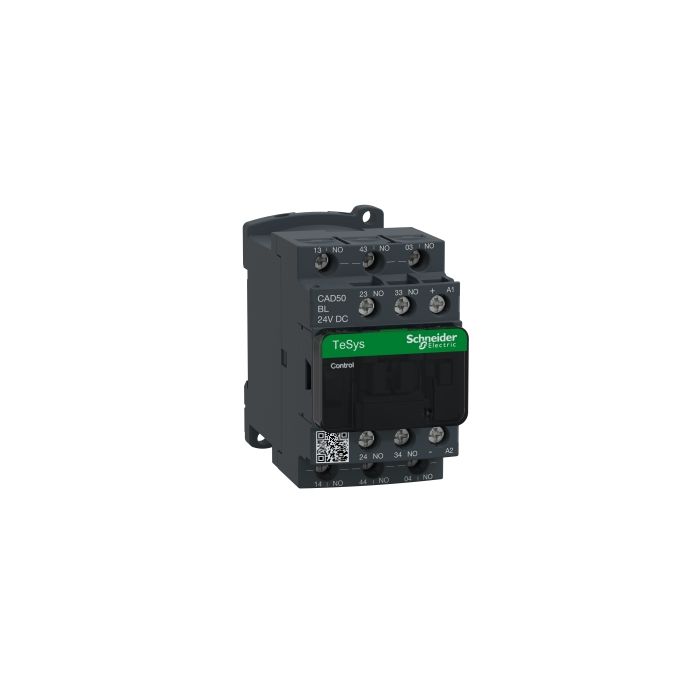

    CAD50BL | TeSys AUXILIARY CONTACTOR – Schneider Electric

    Schneider Electric
    Original price was: ₹6,050.00.Current price is: ₹2,722.50. Excl. GST
    Add to basket
    SKU: CAD50BL
    Placeholder
    -55%

    CAD50P7 | TeSys AUXILIARY CONTACTOR – Schneider Electric

    Original price was: ₹3,605.00.Current price is: ₹1,622.25. Excl. GST
    Add to basket
    SKU: CAD50P7
    CAD32FD TeSys D control relay 3 NO 2 NC cad32fd image 1500x1500
    -56%

    CAD32FD | TeSys D control relay – 3 NO + 2 NC – <= 690 V - 110 V DC standard coil - Schneider Electric

    Schneider Electric
    Original price was: ₹4,760.00.Current price is: ₹2,094.40. Excl. GST
    Add to basket
    SKU: CAD32FD
    CAD32BD TeSys D control relay 3 NO 2 NC cad32bd image 1500x1500
    -55%

    CAD32BD | TeSys D control relay – 3 NO + 2 NC – <= 690 V - 24 V DC standard coil - Schneider Electric

    Schneider Electric
    Original price was: ₹4,960.00.Current price is: ₹2,232.00. Excl. GST
    Add to basket
    SKU: CAD32BD
    CAD50F7 TeSys D control relay 5 NO cad50f7 image 1500x1500
    -55%

    CAD50F7 | TeSys D control relay – 5 NO – <= 690 V - 110 V AC standard coil - Schneider Electric

    Schneider Electric
    Original price was: ₹3,310.00.Current price is: ₹1,489.50. Excl. GST
    Add to basket
    SKU: CAD50F7
    CAD32G7 TeSys D control relay 3 NO 2 NC cad32g7 image 1500x1500
    -50%

    CAD32G7 | TeSys D control relay – 3 NO + 2 NC – <= 690 V - 120 V AC standard coil - Schneider Electric

    Schneider Electric
    Original price was: ₹3,605.00.Current price is: ₹1,802.50. Excl. GST
    Add to basket
    SKU: CAD32G7
    CAD32MD TeSys D control relay 3 NO 2 NC cad32md image 1500x1500
    -52%

    CAD32MD | TeSys D control relay – 3 NO + 2 NC – <= 690 V - 220 V DC standard coil - Schneider Electric

    Schneider Electric
    Original price was: ₹4,760.00.Current price is: ₹2,284.80. Excl. GST
    Add to basket
    SKU: CAD32MD
    Placeholder
    -55%

    CAD32V7 | TeSys AUXILIARY CONTACTOR – Schneider Electric

    Original price was: ₹3,605.00.Current price is: ₹1,622.25. Excl. GST
    Add to basket
    SKU: CAD32V7
    CAD50M7 TeSys D control relay 5 NO cad50m7 image 1500x1500
    -55%

    CAD50M7 | TeSys D control relay – 5 NO – <= 690 V - 220 V AC standard coil - Schneider Electric

    Schneider Electric
    Original price was: ₹3,310.00.Current price is: ₹1,489.50. Excl. GST
    Add to basket
    SKU: CAD50M7
    -55%

    CAD32BL | TeSys Control Relay 3NO + 2 NC 24VDC Low consumption coil – Schneider Electric

    Schneider Electric
    Original price was: ₹6,050.00.Current price is: ₹2,722.50. Excl. GST
    Add to basket
    SKU: CAD32BL
    CAD32N7 TeSys D control relay 3 NO 2 NC cad32 front 1500x1500
    -55%

    CAD32F7 | TeSys D control relay – 3 NO + 2 NC – <= 690 V - 110 V AC standard coil - Schneider Electric

    Schneider Electric
    Original price was: ₹3,310.00.Current price is: ₹1,489.50. Excl. GST
    Add to basket
    SKU: CAD32F7
    CAD32P7 TeSys D control relay 3 NO 2 NC cad32p7 image 1500x1500
    -55%

    CAD32P7 | TeSys D control relay – 3 NO + 2 NC – <= 690 V - 230 V AC standard coil - Schneider Electric

    Schneider Electric
    Original price was: ₹3,605.00.Current price is: ₹1,622.25. Excl. GST
    Add to basket
    SKU: CAD32P7
    CAD50BD TeSys D control relay 5 NO cad50bd image 1500x1500
    -52%

    CAD50BD | TeSys D control relay – 5 NO – <= 690 V - 24 V DC standard coil - Schneider Electric

    Schneider Electric
    Original price was: ₹4,760.00.Current price is: ₹2,284.80. Excl. GST
    Add to basket
    SKU: CAD50BD
    CAD32U7 TeSys D control relay 3 NO 2 NC cad32u7 image 1500x1500
    -52%

    CAD32U7 | TeSys D control relay – 3 NO + 2 NC – <= 690 V - 240 V AC standard coil - Schneider Electric

    Schneider Electric
    Original price was: ₹3,605.00.Current price is: ₹1,730.40. Excl. GST
    Add to basket
    SKU: CAD32U7
    CAD32B7 TeSys D control relay 3 NO 2 NC cad32b7 image 1500x1500
    -55%

    CAD32B7 | TeSys D control relay – 3 NO + 2 NC – <= 690 V - 24 V AC standard coil - Schneider Electric

    Schneider Electric
    Original price was: ₹3,310.00.Current price is: ₹1,489.50. Excl. GST
    Add to basket
    SKU: CAD32B7
    CAD32N7 TeSys D control relay 3 NO 2 NC cad32 front 1500x1500
    -48%

    CAD32E7 | TeSys D control relay – 3 NO + 2 NC – <= 690 V - 48 V AC standard coil - Schneider Electric

    Schneider Electric
    Original price was: ₹3,605.00.Current price is: ₹1,874.60. Excl. GST
    Add to basket
    SKU: CAD32E7

      Looking for the LADC22 | TeSys CONTACTS BLOCK? This genuine Schneider Electric electrical component from the TeSys range is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 6 A at 120 V AC-15, 690 V AC 25…400 Hz, IP20. Order part number LADC22 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

      📋 Technical Specifications

      Product
      BrandSchneider Electric
      Part Number / SKULADC22
      CategoryElectrical Component
      Main
      RangeTeSys
      TeSys Deca
      Product nameTeSys Deca
      Product or component typeAuxiliary contact block
      Range compatibilityTeSys D CAD
      TeSys D LC1D
      TeSys F LC1F
      TeSys F CR1F
      TeSys Deca CAD
      TeSys Deca LC1D
      Mounting locationFront
      Pole contact composition2 NO + 2 NC
      Contacts operationMake before break 1 NO + 1 NC
      Instantaneous 1 NO + 1 NC
      [Ue] rated operational voltage690 V AC 25…400 Hz
      [Ie] rated operational current6 A at 120 V AC-15
      1.04 A at 690 V AC-15
      0.55 A at 125 V DC-13
      0.1 A at 600 V DC-13
      [Ui] rated insulation voltage690 V conforming to IEC 60947-5-1
      600 V conforming to UL
      600 V conforming to CSA
      [Ith] conventional free air thermal current10 A (at 60 °C)
      StandardsEN/IEC 60947-5-1
      UL 60947-5-1
      CSA C22.2 No 60947-5-1
      GB/T 14048.5
      Product certificationsCB
      UL
      CSA
      EAC
      CE
      UKCA
      Complementary
      Irms rated making capacity140 A AC conforming to IEC 60947-5-1
      250 A DC conforming to IEC 60947-5-1
      Permissible short-time rating100 A 1 s
      120 A 500 ms
      140 A 100 ms
      Protection typeGG fuse 10 A
      Mechanical durability30 Mcycles
      Minimum switching current5 mA
      Minimum switching voltage17 V
      Overlap time1.5 ms
      Non-overlap time1.5 ms on de-energisation no overlap between NC and NO contact
      1.5 ms on energisation no overlap between NC and NO contact
      Insulation resistance> 10 MOhm
      Connections – terminalsScrew clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
      Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
      Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
      Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
      Screw clamp terminals 1 cable(s) 1…4 mm²rigid without cable end
      Screw clamp terminals 2 cable(s) 1…4 mm²rigid without cable end
      Tightening torque1.7 N.m – with screwdriver flat Ø 6 mm
      1.7 N.m – with screwdriver Philips No 2
      1.7 N.m – with screwdriver pozidriv No 2
      Height48 mm
      Width44 mm
      Depth42 mm
      Product weight0.05 kg
      Environment
      Environmental characteristicNormal environment
      IP degree of protectionIP20 conforming to IEC 60529
      Protective treatmentTH conforming to IEC 60068
      Ambient air temperature for storage-60…80 °C
      Ambient air temperature for operation-5…60 °C
      Operating altitude3000 m
      Packing Units
      Unit Type of Package 1PCE
      Number of Units in Package 11
      Package 1 Height4.800 cm
      Package 1 Width4.200 cm
      Package 1 Length5.200 cm
      Package 1 Weight62.000 g
      Unit Type of Package 2S03
      Number of Units in Package 2160
      Package 2 Height30.000 cm
      Package 2 Width30.000 cm
      Package 2 Length40.000 cm
      Package 2 Weight10.422 kg
      Unit Type of Package 3P06
      Number of Units in Package 31280
      Package 3 Height75.000 cm
      Package 3 Width60.000 cm
      Package 3 Length80.000 cm
      Package 3 Weight92.000 kg
      Contractual warranty
      Warranty (in months)18

      ⚡ Key Features

      • Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
      • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
      • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
      • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
      • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

      🔗 Compatible Products & Accessories

      The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

      CAD32BDCAD32M7CAD32P7CAD32F7CAD32E7CAD32BLCAD50BDCAD32FDCAD50F7CAD50P7CAD32B7CAD50M7CAD32G7CAD32MDCAD32V7CAD32GDCAD50E7CAD50BLCAD32U7CAD50B7
