CAD32MD TeSys D control relay 3 NO 2 NC cad32md image 1500x1500
Click to enlarge

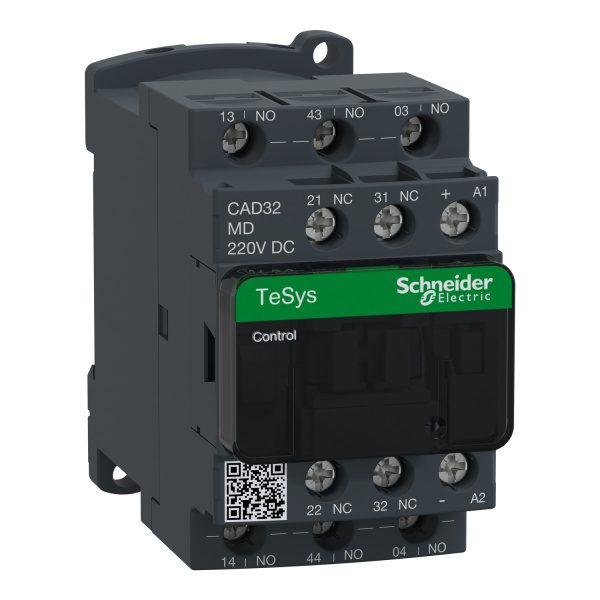

CAD32MD | TeSys D control relay – 3 NO + 2 NC – <= 690 V - 220 V DC standard coil - Schneider Electric

SKU: CAD32MD

Original price was: ₹4,760.00.Current price is: ₹2,284.80. Excl. GST

In stock

In stock

17 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

Placeholder
-55%

LADN22S | TeSys AUXILIARY CONTACT BLOCK 2NO-2NC – Schneider Electric

Original price was: ₹1,960.00.Current price is: ₹882.00. Excl. GST
Add to basket
SKU: LADN22S
LADN11 Auxiliary contact block, TeSys D, 1NO 1NC, front mounting, screw clamp terminals Schneider Electric ladn11 image 1500x
-55%

LADN11 | Auxiliary contact block, TeSys D, 1NO + 1NC, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹955.00.Current price is: ₹429.75. Excl. GST
Add to basket
SKU: LADN11
LAD6K10M CONTACTOR MECH. LATCH CONTACT BLOCK IEC Schneider Electric lad6k10m image 1500x1500
-55%

LAD6K10M | CONTACTOR MECH. LATCH CONTACT BLOCK IEC – Schneider Electric

Schneider Electric
Original price was: ₹13,065.00.Current price is: ₹5,879.25. Excl. GST
Add to basket
SKU: LAD6K10M
LADN01 Auxiliary contact block, TeSys D, 1NC, front mounting, screw clamp terminals Schneider Electric ladn01 image 1500x1500
-15%

LADN01 | Auxiliary contact block, TeSys D, 1NC, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹1,065.00.Current price is: ₹905.25. Excl. GST
Add to basket
SKU: LADN01
-55%

LA1DX20 | CONTACT BLOCK – Schneider Electric

Schneider Electric
Original price was: ₹17,235.00.Current price is: ₹7,755.75. Excl. GST
Add to basket
SKU: LA1DX20
LADN13 Auxiliary contact block, TeSys D, 1NO 3NC, front mounting, screw clamp terminals Schneider Electric ladn13 image 1500x
-55%

LADN13 | Auxiliary contact block, TeSys D, 1NO + 3NC, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹1,740.00.Current price is: ₹783.00. Excl. GST
Add to basket
SKU: LADN13
LADN31 Auxiliary contact block, TeSys D, 3NO 1NC, front mounting, screw clamp terminals Schneider Electric ladn31 image 1500x
-55%

LADN31 | Auxiliary contact block, TeSys D, 3NO + 1NC, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹1,740.00.Current price is: ₹783.00. Excl. GST
Add to basket
SKU: LADN31
LADN22 Auxiliary contact block, TeSys D, 2NO 2NC, front mounting, screw clamp terminals Schneider Electric ladn22 image 1500x
-55%

LADN22 | Auxiliary contact block, TeSys D, 2NO + 2NC, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹1,740.00.Current price is: ₹783.00. Excl. GST
Add to basket
SKU: LADN22
LADS2 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric lads2 image 1500x1500
-55%

LADS2 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹7,350.00.Current price is: ₹3,307.50. Excl. GST
Add to basket
SKU: LADS2
LADN10 Auxiliary contact block, TeSys D, 1NO, front mounting, screw clamp terminals Schneider Electric ladn10 image 1500x1500
-14%

LADN10 | Auxiliary contact block, TeSys D, 1NO, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹1,150.00.Current price is: ₹989.00. Excl. GST
Add to basket
SKU: LADN10
LADT4 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladt4 image 1500x1500
-55%

LADT4 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
Add to basket
SKU: LADT4
LADN02 Auxiliary contact block, TeSys D, 2NC, front mounting, screw clamp terminals Schneider Electric ladn02 image 1500x1500
-55%

LADN02 | Auxiliary contact block, TeSys D, 2NC, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹1,065.00.Current price is: ₹479.25. Excl. GST
Add to basket
SKU: LADN02
LADN40 Auxiliary contact block, TeSys D, 4NO, front mounting, screw clamp terminals Schneider Electric ladn40 image 1500x1500
-55%

LADN40 | Auxiliary contact block, TeSys D, 4NO, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹1,740.00.Current price is: ₹783.00. Excl. GST
Add to basket
SKU: LADN40
-55%

LADC22 | TeSys CONTACTS BLOCK – Schneider Electric

Schneider Electric
Original price was: ₹10,575.00.Current price is: ₹4,758.75. Excl. GST
Add to basket
SKU: LADC22
LADT0 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladt0 image 1500x1500
-55%

LADT0 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
Add to basket
SKU: LADT0
LADN04 Auxiliary contact block, TeSys D, 4NC, front mounting, screw clamp terminals Schneider Electric ladn04 image 1500x1500
-55%

LADN04 | Auxiliary contact block, TeSys D, 4NC, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹2,555.00.Current price is: ₹1,149.75. Excl. GST
Add to basket
SKU: LADN04
LADR2 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladr2 image 1500x1500
-55%

LADR2 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
Add to basket
SKU: LADR2
LADT2 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladt2 image 1500x1500
-55%

LADT2 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
Add to basket
SKU: LADT2
LADR0 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladr0 image 1500x1500
-55%

LADR0 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
Add to basket
SKU: LADR0
-55%

LAD9ET1S | TeSys SAFETY COVER RED FOR 09-38A – 40 – Schneider Electric

Schneider Electric
Original price was: ₹1,370.00.Current price is: ₹616.50. Excl. GST
Add to basket
SKU: LAD9ET1S
-55%

LAD6K10B | LATCH BLK LC1 D09-D65A 24V – Schneider Electric

Schneider Electric
Original price was: ₹13,065.00.Current price is: ₹5,879.25. Excl. GST
Add to basket
SKU: LAD6K10B
-55%

LAD6K10E | LATCH BLK LC1 D09-D65A 42V – Schneider Electric

Schneider Electric
Original price was: ₹13,065.00.Current price is: ₹5,879.25. Excl. GST
Add to basket
SKU: LAD6K10E
LADN20 Auxiliary contact block, TeSys D, 2NO, front mounting, screw clamp terminals Schneider Electric ladn20 image 1500x1500
-55%

LADN20 | Auxiliary contact block, TeSys D, 2NO, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹1,045.00.Current price is: ₹470.25. Excl. GST
Add to basket
SKU: LADN20
Placeholder
-55%

LAD4DDL | FREE WHEELING DIODE 24-250VAC D09-D38 – Schneider Electric

Original price was: ₹4,860.00.Current price is: ₹2,187.00. Excl. GST
Add to basket
SKU: LAD4DDL
LADR4 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladr4 image 1500x1500
-55%

LADR4 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
Add to basket
SKU: LADR4
-55%

LAD6K10F | LATCH BLK LC1 D09-D65A 110V – Schneider Electric

Schneider Electric
Original price was: ₹13,065.00.Current price is: ₹5,879.25. Excl. GST
Add to basket
SKU: LAD6K10F

    Sourced through authorised channels, the Schneider Electric CAD32MD relay from the TeSys range delivers dependable performance for motor control and switching. Key ratings include <= 690 V AC 25...400 Hz, IP2X front face. myelectric.in stocks the CAD32MD | TeSys D control relay - 3 NO + 2 NC - <= 690 V - 220 V DC standard coil for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

    📋 Technical Specifications

    Product
    BrandSchneider Electric
    Part Number / SKUCAD32MD
    CategoryRelay
    Main
    RangeTeSys
    TeSys Deca
    Product nameTeSys CAD
    Product or component typeControl relay
    Device short nameCAD
    Contactor applicationControl circuit
    Complementary
    Utilisation categoryAC-14
    AC-15
    DC-13
    Pole contact composition3 NO + 2 NC
    [Ue] rated operational voltage<= 690 V AC 25…400 Hz
    Control circuit typeDC standard
    [Uc] control circuit voltage220 V DC
    [Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947
    [Ith] conventional free air thermal current10 A (at 60 °C)
    Irms rated making capacity140 A AC conforming to IEC 60947-5-1
    250 A DC conforming to IEC 60947-5-1
    [Icw] rated short-time withstand current100 A – 1 s
    120 A – 500 ms
    140 A – 100 ms
    Associated fuse rating10 A gG conforming to IEC 60947-5-1
    [Ui] rated insulation voltage600 V UL certified
    600 V CSA certified
    690 V conforming to IEC 60947-5-1
    Mounting supportRail
    Plate
    Connections – terminalsScrew clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
    Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
    Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
    Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
    Screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end
    Screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end
    Tightening torque1.7 N.m – on screw clamp terminals – with screwdriver Philips No 2
    1.7 N.m – on screw clamp terminals – with screwdriver flat Ø 6 mm
    1.7 N.m – on screw clamp terminals – with screwdriver pozidriv No 2
    Control circuit voltage limits0.1…0.25 Uc (-40…70 °C):drop-out DC
    0.7…1.25 Uc (-40…60 °C):operational DC
    1…1.25 Uc (60…70 °C):operational DC
    Operating time53…72 ms coil energisation and NO closing
    16…24 ms coil de-energisation and NO opening
    47…63 ms coil energisation and NC opening
    15…25 ms coil de-energisation and NC closing
    Mechanical durability30 Mcycles
    Maximum operating rate180 cyc/mn
    Time constant28 ms
    Inrush power in W5.4 W (at 20 °C)
    Hold-in power consumption in W5.4 W at 20 °C
    Minimum switching voltage17 V
    Minimum switching current5 mA
    Non-overlap time1.5 ms on energisation between NC and NO contact
    1.5 ms on de-energisation between NC and NO contact
    Insulation resistance> 10 MOhm
    Mechanical robustnessShocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27
    Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27
    Vibrations control relay open: 2 Gn, 5…300 Hz conforming to IEC 60068-2-6
    Vibrations control relay closed: 4 Gn, 5…300 Hz conforming to IEC 60068-2-6
    Height77 mm
    Width45 mm
    Depth93 mm
    Product weight0.58 kg
    Environment
    StandardsEN/IEC 60947-5-1
    GB/T 14048.5
    UL 60947-5-1
    CSA C22.2 No 60947-5-1
    JIS C8201-5-1
    Product certificationsCB
    CCC
    UL
    CSA
    EAC
    CE
    UKCA
    IP degree of protectionIP2X front face conforming to VDE 0106
    Protective treatmentTH conforming to IEC 60068
    Ambient air temperature for operation-40…60 °C
    60…70 °C with derating
    Ambient air temperature for storage-60…80 °C
    Operating altitude0…3000 m
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height5.5 cm
    Package 1 Width9.5 cm
    Package 1 Length12 cm
    Package 1 Weight530 g
    Unit Type of Package 2S02
    Number of Units in Package 216
    Package 2 Height15 cm
    Package 2 Width30 cm
    Package 2 Length40 cm
    Package 2 Weight8.935 kg
    Unit Type of Package 3P06
    Number of Units in Package 3256
    Package 3 Height75 cm
    Package 3 Width60 cm
    Package 3 Length80 cm
    Package 3 Weight151 kg
    Contractual warranty
    Warranty (in months)18

    ⚡ Key Features

    • 3 NO (normally-open) contacts for load switching and sequencing; 2 NC (normally-closed) contacts for interlocking, fail-safe, and alarm circuits — all contacts independently switchable up to the contact voltage rating.
    • 220V DC coil — energises from PLC digital output (transistor or relay type), timer contact, or pushbutton; no separate relay driver card required.
    • Contact voltage rating 690V AC — switches 230V AC loads (solenoid valves, motor starters, indicator lamps) and DC loads (PLC inputs, LED panels) within the same contact rating.
    • TeSys K control relay — identical DIN rail footprint to TeSys D contactors; accepts LA1KN auxiliary contact blocks for additional NO/NC outputs; mountable on 35mm or 20mm DIN rail.
    • Manufactured to IEC 60947-5-1 — complies with the applicable Indian BIS and IEC international standards for this product category.
    • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
    • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
    • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
    • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

    🔗 Compatible Products & Accessories

    The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

    LAD9ET1SLAD4DDLLADN22LADN11LADN20LADT2LADN40LADN31LADN02LADT0LADS2LADR2LADR0LADN04LADN13LADR4LADT4LADN22SLADC22LADN10LADN01LA1DX20LAD6K10MLAD6K10FLAD6K10BLAD6K10E

    ❓ Frequently Asked Questions

    Q: The CAD32MD has a coil voltage of 220V DC — what control supply is needed?

    A: This Schneider Electric device requires a 220V DC control supply connected to the coil terminals (A1 and A2). For DC coils, observe polarity where marked. DC coils produce no inrush and are preferred for PLC output cards. Always fit a surge suppressor across the coil when switching with a PLC or solid-state relay.

    Q: What circuit can the 3 NO + 2 NC contacts of the CAD32MD switch at 690V AC?

    A: The 3 NO + 2 NC contacts on the CAD32MD are rated for switching at up to 690V AC. These auxiliary contacts are typically used for: (1) indication lamps and buzzers, (2) PLC input feedback to confirm device state, (3) interlocking with other contactors or relays in control circuits. Check the current rating of the auxiliary contact (typically 10A at 250V AC) — do not use for power load switching.

    Q: Can the CAD32MD relay be mounted on a DIN rail socket for easy replacement?

    A: This Schneider Electric relay typically requires direct panel or DIN rail wiring. For applications requiring frequent relay replacement, consider the plug-in relay variant of this series with a matching socket base.

    Q: How do I test the CAD32MD relay in the field without a signal source?

    A: Most Schneider Electric relays can be manually forced using the test button (if fitted) — this mechanically closes the relay contacts without energising the coil, allowing functional testing of the controlled circuit. For coil testing, use a multimeter to measure coil resistance (typically 500–2000Ω for AC coils at rated voltage) and compare with datasheet values.

    Customer Reviews

    Related Products

    Solar Controller for 415V Induction motor pumps,10HP,Without RMU L T CS91466PO1O newbradd 7

    Solar Controller for 415V Induction motor pumps,3HP,Without RMU | L&T – CS91463PO1O

    Lauritz Knudsen (L&T)
    Read more
    SKU: CS91463PO1O
    MU-G10HN, 10HP, 20-32A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application L T CS92

    MU-G7.5,7.5HP,13-22A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application | L&T – CS92103SODO

    Lauritz Knudsen (L&T)
    ₹12,550.00 Excl. GST
    Add to basket
    SKU: CS92103SODO
    XB5AR31N Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO Schneider Electric xb5
    -46%

    XB5AR31N | Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO – Schneider Electric

    Schneider Electric
    Original price was: ₹675.00.Current price is: ₹364.50. Excl. GST
    Add to basket
    SKU: XB5AR31N
    ZB2BW36C Ø 22 mm fixing hole push button head with blue lamp Schneider Electric zb2bw36c
    -35%

    ZB2BW36C | Ø 22 mm fixing hole – push button head with blue lamp – Schneider Electric

    Schneider Electric
    Original price was: ₹305.00.Current price is: ₹198.25. Excl. GST
    Add to basket
    SKU: ZB2BW36C
    Placeholder
    -20%

    MS13MD09 | 7MDL, 1HP 3 PHASE DOL STARTER – Schneider Electric

    Schneider Electric
    Original price was: ₹5,530.00.Current price is: ₹4,424.00. Excl. GST
    Add to basket
    SKU: MS13MD09
    Placeholder
    -50%

    30002572 | EM1200 Energy meter Cl 0.5 RS485 LCD – Schneider Electric

    Schneider Electric
    Original price was: ₹6,271.00.Current price is: ₹3,135.50. Excl. GST
    Add to basket
    SKU: 30002572
