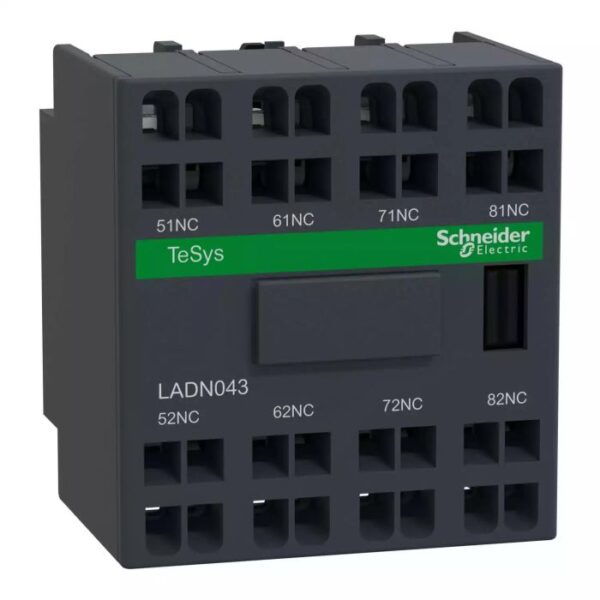

LADN043 | TeSys CONTACTS BLOCK – Schneider Electric

Name: LADN043 | TeSys CONTACTS BLOCK - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: LADN043
Price: 4287.10 INR
Availability: BackOrder

SKU: LADN043

Original price was: ₹4,985.00.Current price is: ₹4,287.10. Excl. GST

Dispatch By : 3 Weeks

10 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-55%

LC1D123FD | TeSys3PCTR12A AC3 5.5KW110VDC COILSPRING – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LC1D123FD

-55%

CAD323BD | CAD323BD Contactor 32A 3P 24VDC Coil | Schneider Electric – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: CAD323BD

-55%

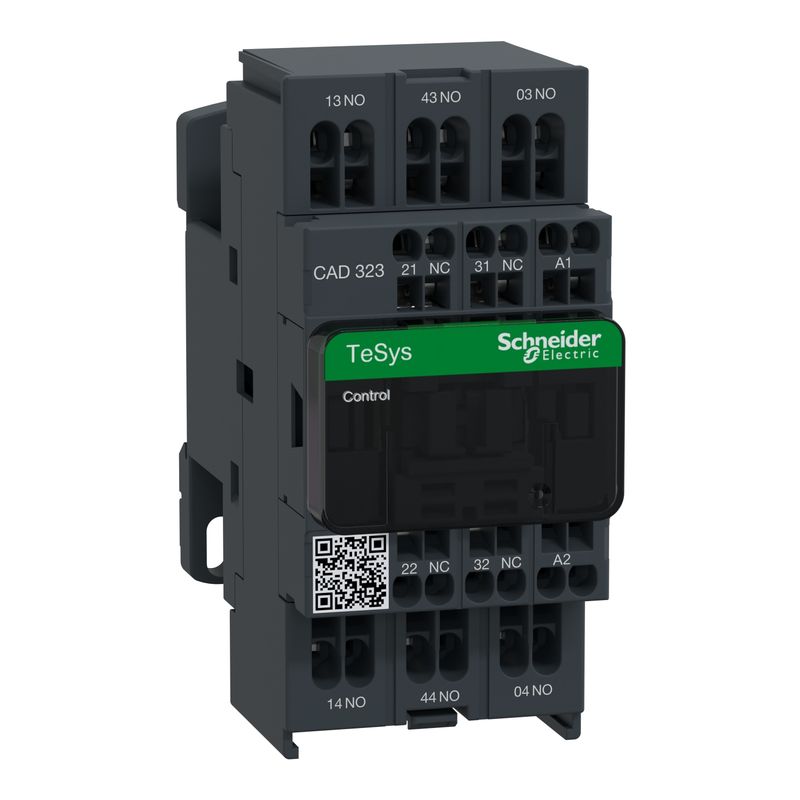

CAD323E7 | TeSys AUXILIARY CONTACTOR – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: CAD323E7

-55%

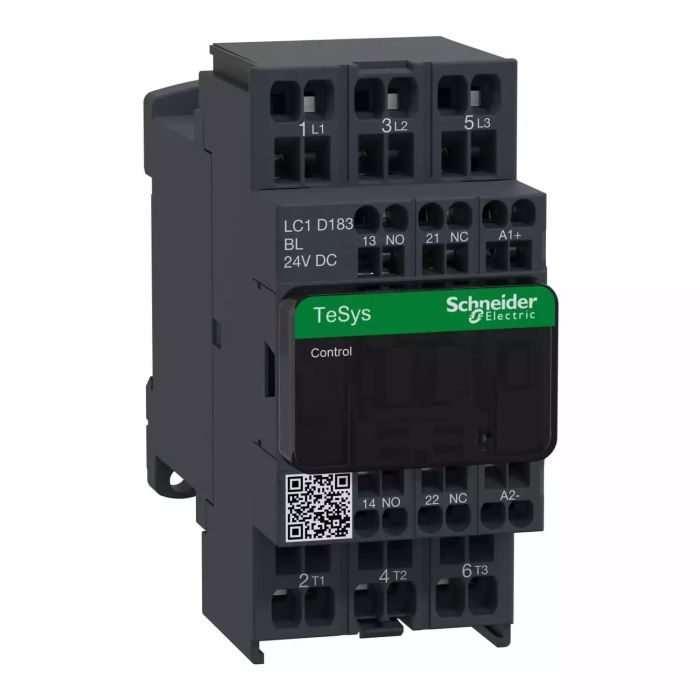

LC1D183BL | TeSys3P CTR18A AC3 9KW1NO1NC24VDC LC SPR – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LC1D183BL

-55%

LC1D093BL | TeSys3PCTR9A AC3 4KW1NO1NC24VDC LC SPRIN – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LC1D093BL

-55%

CAD323BL | TeSys AUXILIARY CONTACTOR – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: CAD323BL

-55%

LC1D093BD | TeSys 3P CTR 9A AC3 4KW24VDC COIL SPRING – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LC1D093BD

-55%

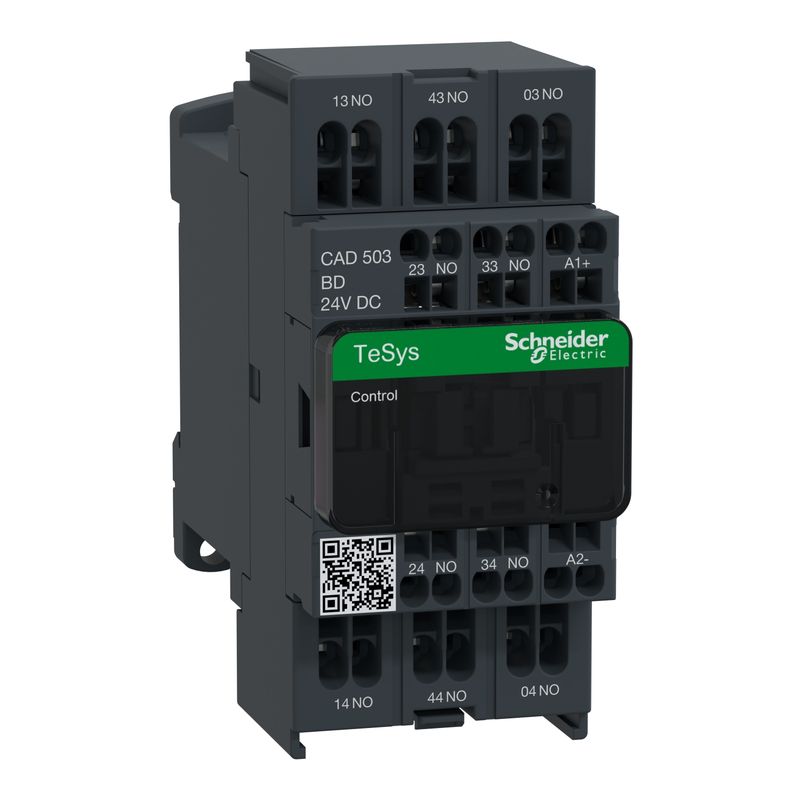

CAD503BD | TeSys AUXILIARY CONTACTOR – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: CAD503BD

Looking for the LADN043 | TeSys CONTACTS BLOCK? This genuine Schneider Electric electrical component from the TeSys range is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 6 A at 120 V AC-15, 690 V AC 25…400 Hz, IP20. Order part number LADN043 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	LADN043
Category	Electrical Component
Main
Range	TeSys TeSys Deca
Product name	TeSys Deca
Product or component type	Auxiliary contact block
Device short name	LADN
Range compatibility	TeSys Deca CAD TeSys Deca LC1D
Mounting location	Front
Pole contact composition	4 NC
Contacts operation	Instantaneous
[Ue] rated operational voltage	690 V AC 25…400 Hz
[Ie] rated operational current	6 A at 120 V AC-15 1.04 A at 690 V AC-15 0.55 A at 125 V DC-13 0.1 A at 600 V DC-13
[Ui] rated insulation voltage	690 V conforming to IEC 60947-5-1 600 V conforming to UL 60947-5-1 600 V conforming to CSA C22.2 No 60947-5-1
[Ith] conventional free air thermal current	10 A (at 60 °C)
Standards	EN/IEC 60947-5-1 GB/T 14048.5 EN 50012 UL 60947-5-1 CSA C22.2 No 60947-5-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ
Product certifications	CB Scheme UL CSA CCC EAC UKCA
Complementary
Irms rated making capacity	140 A AC conforming to IEC 60947-5-1 250 A DC conforming to IEC 60947-5-1
Permissible short-time rating	100 A 60 °C 1 s 120 A 60 °C 500 ms 140 A 60 °C 100 ms
Protection type	GG fuse 10 A
Mechanical durability	30 Mcycles
Minimum switching current	5 mA
Minimum switching voltage	17 V
Non-overlap time	1.5 ms on de-energisation no overlap between NC and NO contact 1.5 ms on energisation no overlap between NC and NO contact
Insulation resistance	> 10 MOhm
Connections – terminals	Spring terminals 2 cable(s) 2.5 mm²flexible without cable end Spring terminals 2 cable(s) 2.5 mm²rigid
Height	48 mm
Width	44 mm
Depth	42 mm
Product weight	0.05 kg
Colour	Dark grey
Environment
Environmental characteristic	Normal environment
IP degree of protection	IP20 conforming to IEC 60529
Protective treatment	TH conforming to IEC 60068
Ambient air temperature for storage	-60…80 °C
Ambient air temperature for operation	-5…60 °C
Operating altitude	3000 m
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.000 cm
Package 1 Width	4.000 cm
Package 1 Length	5.000 cm
Package 1 Weight	68.000 g
Unit Type of Package 2	S03
Number of Units in Package 2	160
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	11.295 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
