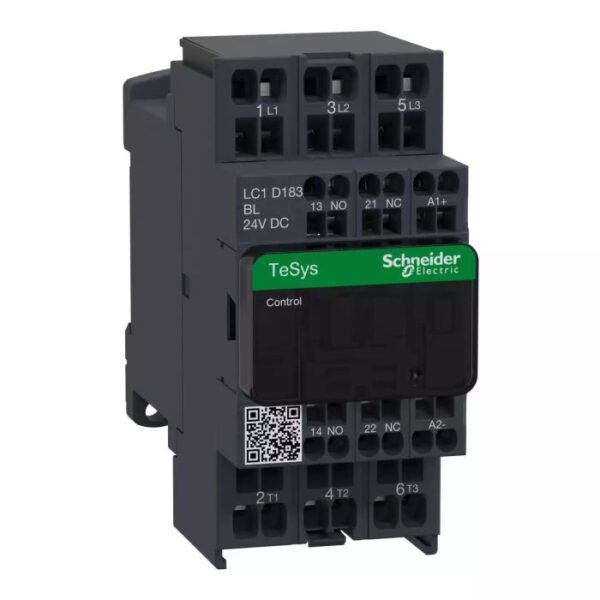

LC1D183BL | TeSys3P Contactor 18A AC3 9KW 1NO+1NC 24VDC – Schneider Electric
Product Description
The Schneider Electric LC1D183BL TeSys3P contactor is a high-quality electrical component designed for reliable switching of electrical circuits. This 3-pole contactor is part of Schneider’s renowned TeSys range, offering superior performance and durability for industrial applications.
Key Features:
- Current Rating: 18A (AC3)
- Power Rating: 9kW at 400V
- Contact Configuration: 1 Normally Open (NO) + 1 Normally Closed (NC)
- Coil Voltage: 24V DC
- Mounting: Screw fixing or snap-on mounting
- Mechanical Life: 10 million operations
- Electrical Life: 1 million operations (AC3)
- Enclosure: IP20 protection
- Compliance: IEC/EN 60947-4-1 standards
Applications:
Ideal for controlling three-phase motors, heating circuits, lighting systems, and other electrical loads in industrial and commercial environments.
Technical Specifications:
| Parameter | Value |
|---|---|
| Brand | Schneider Electric |
| Model | LC1D183BL |
| Series | TeSys3P |
| Rated Operational Current (Ie) | 18A (AC3) |
| Rated Operational Power | 9kW at 400V |
| Coil Voltage | 24V DC |
| Contact Material | Silver alloy |
| Operating Temperature | -25°C to +60°C |
| Weight | Approx. 300g |
Package Includes:
- 1 x Schneider Electric LC1D183BL Contactor
- Product documentation
