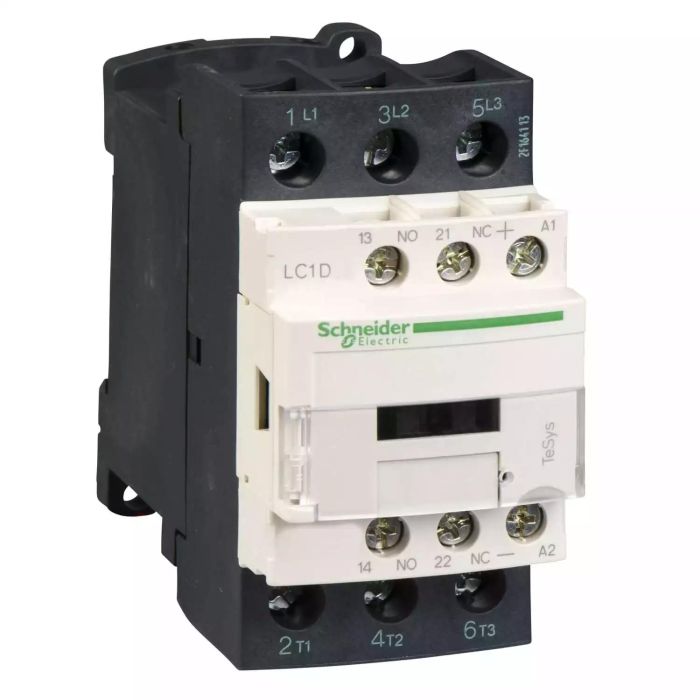

LC1D386FLS207 – TESYS LC1D Contactor (3P, AC3, 440V, 38A, CO)

Schneider Electric

Premium quality electrical components for industrial and commercial applications

Product Overview

The Tesys LC1D contactor from Schneider Electric is a robust and reliable 3-pole electromechanical contactor designed for motor control applications. This 38A model with AC3 rating at 440V provides excellent performance for standard motor starting and stopping operations.

Key Features

Model: LC1D386FLS207
Poles: 3P (3 Pole)
Utilization Category: AC3 (Squirrel cage motor: starting, switching off)
Rated Operational Voltage (Ue): 440V AC
Rated Operational Current (Ie): 38A at 440V AC
Contact Material: Silver alloy (AgSnO2) for long electrical life
Coil Voltage: 230V AC (Standard)
Mechanical Durability: 10 million operations
Electrical Durability: 200,000 operations at AC3
Mounting: DIN rail or screw mounting
Screw Terminals: Cage clamp for secure connection
Safety Standards: IEC/EN 60947-4-1, UL 508, CSA C22.2

Typical Applications

Motor control for pumps, fans, and compressors
Industrial automation systems
HVAC equipment
Material handling systems
Packaging machinery

Technical Specifications

Power Consumption	8VA (holding), 65VA (pick-up)
Operating Temperature	-25°C to +60°C
Storage Temperature	-40°C to +85°C
Weight	Approx. 0.45 kg
Dimensions (HxWxD)	90 x 45 x 78 mm
