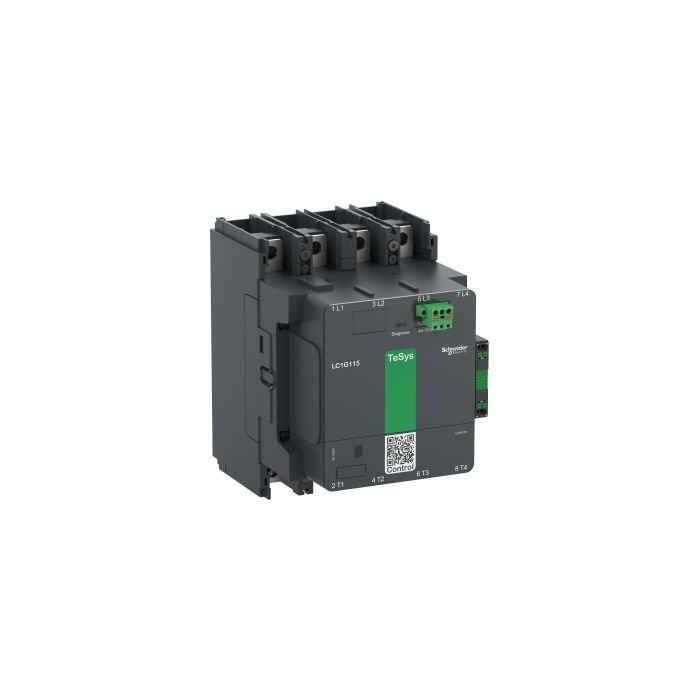

LC1G1854KUEN | Contactor TeSys Giga 185 4P Std 100-250V AC/DC – Schneider Electric
Product Description
The TeSys Giga LC1G1854KUEN is a high-performance 4-pole contactor from Schneider Electric’s renowned TeSys Giga series. Designed for heavy-duty industrial applications, this contactor ensures reliable switching of electrical loads with a standard coil voltage range of 100-250V AC/DC.
Key Features
- Rated Current: 185A at 415V AC-3
- Poles: 4 (4P)
- Coil Voltage: 100-250V AC/DC (Standard)
- Mounting: Screw or snap-on mounting
- Mechanical Durability: Up to 10 million operations
- Electrical Durability: Up to 1 million operations at AC-3
- Compact Design: Space-saving solution for panel builders
- Compatibility: Works with TeSys Giga auxiliary contacts and accessories
Applications
Ideal for controlling motors, pumps, compressors, and other heavy electrical loads in:
- Industrial automation systems
- HVAC equipment
- Material handling systems
- Power distribution panels
- Manufacturing plants
Technical Specifications
Parameter | Value |
---|---|
Reference | LC1G1854KUEN |
Brand | Schneider Electric |
Range | TeSys Giga |
Rated Operational Current (Ie) | 185A at 415V AC-3 |
Power | 90kW at 400V AC-3 |
Utilization Category | AC-1 to AC-4, DC-1 to DC-5 |
Terminal Type | Screw Clamp |
Weight | Approx. 1.8 kg |
Why Choose This Product?
Schneider Electric’s TeSys Giga contactors are known for their exceptional reliability and durability in demanding environments. The LC1G1854KUEN model offers:
- Robust construction for long service life
- Wide voltage range compatibility
- Easy installation and maintenance
- Global standards compliance (IEC, UL, CSA)
- Backed by Schneider Electric’s quality assurance
Available now at myelectric.in – Your trusted source for quality electrical components!
