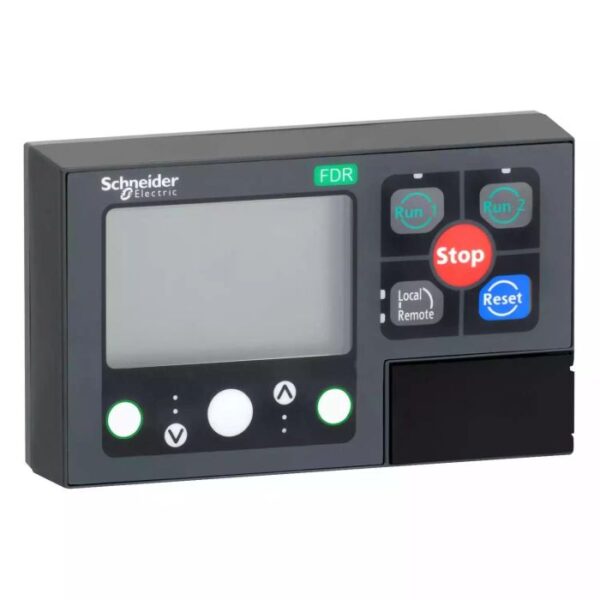

The Schneider Electric LTMCUF is an electrical component from the TeSys range, engineered for industrial, commercial, and infrastructure applications in demanding Indian and international installations. Key ratings include IP54 (front). Buy the LTMCUF | TESYS T CONTROL DISPLAY UNIT FDR online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.
📋 Technical Specifications
| Product | |
| Brand | Schneider Electric |
| Part Number / SKU | LTMCUF |
| Category | Electrical Component |
| Main | |
| Range | TeSys |
| Device short name | LTMCUF |
| Product or component type | Operator control unit |
| Range compatibility | TeSys T LTMR motor controller |
| Display type | Backlit LCD |
| Local signalling | 4 LEDs |
| local control | 10 push-button |
| Device connection | Connection to a LTM R controller, RJ45 connector on rear Connection to a PC, RJ45 connector on front |
| Function available | FDR (fast device replacement) |
| Complementary | |
| Supply | Via the controller |
| Maximum supply current | 140 mA |
| Power dissipation | 1 W |
| Standards | UL 60947-4-1A EN/IEC 61131-2 CSA C22.2 No 60947-4-1 |
| Product certifications | CSA EAC NOM CE UL C-Tick |
| Electromagnetic compatibility | Electrostatic discharge, level 3, 8 kV air, 4 kV contact, conforming to EN/IEC 61000-4-2 Radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 Conducted RF disturbances, level 3, 10 V, conforming to EN/IEC 61000-4-6 Surges (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-5 Fast transient bursts (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-4 |
| IP degree of protection | IP54 (front) conforming to EN/IEC 60947-4-1 IP20 (rear) conforming to EN/IEC 60947-4-1 |
| Mounting mode | Flush-mounted |
| Width | 117 mm |
| Height | 70 mm |
| Depth | 50 mm |
| Product weight | 0.4 kg |
| Environment | |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -40…80 °C |
| Relative humidity | 15…95 % |
| Protective treatment | TC 12 humidity cycles at 55 °C conforming to EN/IEC 60068-2-30 |
| Mechanical robustness | Shocks: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27 Vibrations: 4 Gn, 5…300 Hz conforming to EN/IEC 60068-2-6 |
| Fire resistance | 650 °C conforming to EN/IEC 60947-1 |
| Flame retardance | V2 conforming to UL 94 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.000 cm |
| Package 1 Width | 7.800 cm |
| Package 1 Length | 13.600 cm |
| Package 1 Weight | 268.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 32 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 9.160 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
⚡ Key Features
- Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
- BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
- Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
- GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
- Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
