METSEPM2130D | PM2130 Power meter Cl 0.5S RS485 – Schneider Electric

Name: METSEPM2130D | PM2130 Power meter Cl 0.5S RS485 - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: METSEPM2130D
Price: 14657.92 INR
Availability: BackOrder

SKU: METSEPM2130D

Original price was: ₹39,616.00.Current price is: ₹14,657.92. Excl. GST

Dispatch By : 2 Weeks

17 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-63%

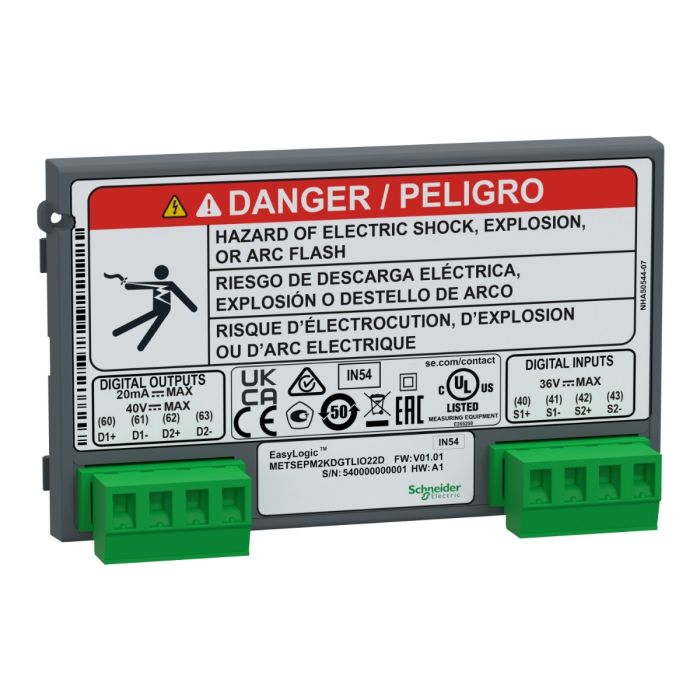

METSEPM2KDGTLIO22D | Easylogic PM2x30 Digital IO Module 2-IO – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: METSEPM2KDGTLIO22D

-63%

METSEPM2KANLGIO11D | Easylogic PM2x30 Analog IO Module 1-IO – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: METSEPM2KANLGIO11D

-63%

METSEPM2KANLGIO22D | Easylogic PM2x30 Analog IO Module 2-IO – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: METSEPM2KANLGIO22D

Looking for the METSEPM2130D | PM2130 Power meter Cl 0.5S RS485? This genuine Schneider Electric power & energy meter from the EasyLogic range is built for accurate electrical measurement and monitoring, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 1 A, IP54 front:. Order part number METSEPM2130D from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	METSEPM2130D
Category	Power & Energy Meter
Main
Range	EasyLogic
Product name	EasyLogic PM2100
Product or component type	Power meter
Device short name	PM2130
Complementary
Device application	Sub billing Power monitoring
Power quality analysis	total harmonic distortion up to the 31st harmonic
Type of measurement	Apparent power min/max, total Active and reactive power min/max, total Current min/max, avg Voltage min/max, avg Frequency min/max, avg Total current harmonic distortion THD (I) per phase Total voltage harmonic distortion THD (U) per phase Power factor min/max, avg Apparent energy total Active and reactive energy total
Metering type	Peak demand power PM, QM, SM Peak demand currents Calculated neutral current Reactive power Q, Q1, Q2, Q3 Current I, I1, I2, I3 Voltage U, U21, U32, U13, V, V1, V2, V3 Apparent power S, S1, S2, S3 Active, reactive, apparent energy (signed, four quadrant) Active power P, P1, P2, P3 Demand power P, Q, S Unbalance current
Accuracy class	Class 1 reactive energy conforming to IEC 62053-24 Class 0.5S active energy conforming to IEC 62053-22 Class 5 harmonic distortion (I THD & U THD)
Measurement accuracy	Apparent power +/- 0.5 % Active energy +/- 0.5 % Reactive energy +/- 1 % Active power +/- 0.5 % Voltage +/- 0.5 % Power factor +/- 0.01 Current +/- 0.5 % Frequency +/- 0.05 %
Measurement current	5…6000 mA
Measurement voltage	35…480 V AC 50/60 Hz between phases 20…277 V AC 50/60 Hz between phase and neutral 480…999000 V AC 50/60 Hz with external VT
Frequency measurement range	45…65 Hz
[Us] rated supply voltage	80…277 V AC 45…65 Hz +/- 10 % 100…277 V DC +/- 10 %
Network frequency	60 Hz 50 Hz
Ride-through time	50 ms 120 V AC typical 50 ms 230 V AC typical 50 ms 125 V DC typical
[In] rated current	1 A 5 A
Maximum power consumption in VA	8 VA at 277 V AC
Maximum power consumption in W	3.3 W (power lines (AC)) 3.3 W at 277 V (power lines (DC))
input impedance	Current (impedance <= 0.3 mOhm) Voltage (impedance > 5 MOhm)
Tamperproof of settings	Protected by access code
Display type	7 segments LED
Display colour	Red
Messages display capacity	3 fields of 4 characters
Display digits	12 digit(s) – 14.2 mm in height
Demand intervals	Configurable from 1 to 60 min
Information displayed	Demand current (past value) Demand current (present value) Demand power (past value) Demand power (present value) Voltage Current Frequency Energy consumption Harmonic distortion Power factor Active power Apparent power Reactive power Unbalanced in %
Control type	3 x button
Local signalling	Red LED: output signal 1…9999000 pulse/ k_h (kWh, kVAh, kVARh) Green LED: module operation and integrated communication
Number of inputs	0
Number of outputs	0
Communication port protocol	Modbus RTU at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none – 2 wires, insulation 2500 V
Communication port support	Screw terminal block: RS485
Data recording	Min/max for 8 parameters Energy consumption logs Time stamping Power logs
Function available	Real time clock
Sampling rate	64 samples/cycle
Cybersecurity	Enable/disable communication ports
Communication service	Remote monitoring
Product certifications	CE conforming to IEC 61010-1 CULus conforming to UL 61010-1 CULus conforming to CSA C22.2 No 61010-1 RCM EAC C-Tick
Mounting mode	Clip-on
Mounting position	Vertical
Mounting support	Framework
Provided equipment	1 x installation guide
Measurement category	Category III 480 V Category II 480…600 V
Electrical insulation class	Double insulation Class II
Flame retardance	V-0 conforming to UL 94
Connections – terminals	Current transformer: screw connection (bottom) 6 Voltage inputs: screw connection (top) 4
Material	Polycarbonate
Width	96 mm
Depth	Total : 76.09 mm Embedded : 61.64 mm
Height	96 mm
Product weight	300 g
Targeted country	India
Environment
service life	7 year(s)
IP degree of protection	IP54 front: conforming to IEC 60529 IP30 body: conforming to IEC 60529
Relative humidity	5…95 % at 50 °C
Pollution degree	2
Ambient air temperature for operation	-10…60 °C
Ambient air temperature for storage	-25…70 °C
Operating altitude	<= 2000 m
Electromagnetic compatibility	Electrostatic discharge conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 Surge immunity test conforming to IEC 61000-4-5 Conducted RF disturbances conforming to IEC 61000-4-6 Magnetic field at power frequency conforming to IEC 61000-4-8 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 Emission tests conforming to FCC part 15 class A
Overvoltage category	III
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.2 cm
Package 1 Width	9.6 cm
Package 1 Length	9.6 cm
Package 1 Weight	0.5 kg
Contractual warranty
Warranty (in months)	18
