METSECT5CC020 | CT tropi. DIN 200 5 cables d. 21 - Schneider Electric - Image 1

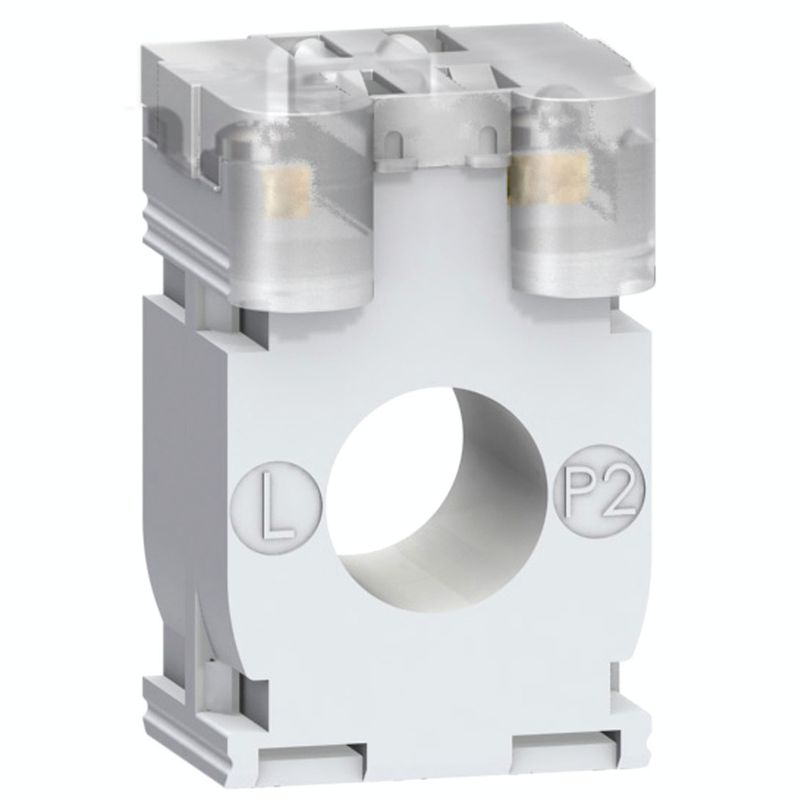

    METSECT5CC020 | CT tropi. DIN 200 5 cables d. 21 – Schneider Electric

    SKU: METSECT5CC020

    Original price was: ₹3,541.00.Current price is: ₹2,584.93. Excl. GST

    Dispatch By : 7 Weeks

    Dispatch By : 7 Weeks

    10 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Specifications

    Main
    RangePowerLogic
    Product or component typeCurrent transformer
    Product nameCT
    Secondary current5 A
    Accuracy classClass 0.5 at 4 VA
    Class 1 at 5.5 VA
    Class 3 at 6 VA
    [In] rated current200 A
    Complementary
    Current transformer typeTropicalised for cable
    Solid core
    Current transformer ratio200/5
    [Ith] conventional free air thermal current12 kA
    Dynamic withstand current2.5 Ith
    Maximum safety factor5
    [Ue] rated operational voltage< 720 V AC 50/60 Hz
    [Ui] rated insulation voltage3 kV 50 Hz for 1 minute
    Mounting modeClip-on
    By screws
    Mounting supportDIN rail
    Mounting plate
    WidthOutside: 44 mm
    HeightOutside: 65 mm
    DepthFrame : 30 mm
    Total : 37 mm
    Diameter21 mm
    Net weight0.175 kg
    [Uimp] rated impulse withstand voltage3 kV
    Electrical insulation classClass B
    Cable outer diameter21 mm
    SealingWith
    Environment
    StandardsIEC 61869-2
    VDE 0414
    Product certificationsCE
    EAC
    IP degree of protectionIP20
    Relative humidity0…95 %
    Ambient air temperature for operation-25…60 °C
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height5.500 cm
    Package 1 Width5.500 cm
    Package 1 Length8.000 cm
    Package 1 Weight174.100 g
    Unit Type of Package 2S02
    Number of Units in Package 250
    Package 2 Height15.000 cm
    Package 2 Width30.000 cm
    Package 2 Length40.000 cm
    Package 2 Weight9.055 kg
    Contractual warranty
    Warranty (in months)18
