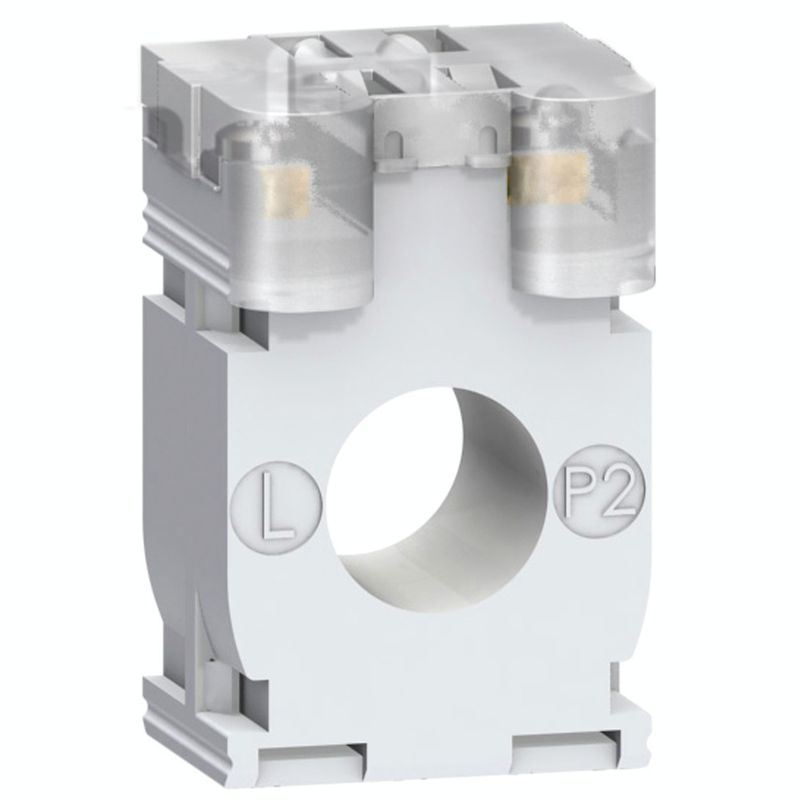

METSECT5CC025 | CT tropi. DIN 250 5 cables d. 21 – Schneider Electric

Name: METSECT5CC025 - Current transformer tropicalised DIN mount 250 5 for | Schneider Electric
Brand: Schneider Electric
SKU: METSECT5CC025
Price: 3229.52 INR
Availability: BackOrder

SKU: METSECT5CC025

Original price was: ₹4,424.00.Current price is: ₹3,229.52. Excl. GST

Dispatch By : 7 Weeks

20 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range	PowerLogic
Product or component type	Current transformer
Product name	CT
Secondary current	5 A
Accuracy class	Class 0.5 at 5 VA Class 1 at 6 VA Class 3 at 7 VA
[In] rated current	250 A
Complementary
Current transformer type	Tropicalised for cable Solid core
Current transformer ratio	250/5
[Ith] conventional free air thermal current	15 kA
Dynamic withstand current	2.5 Ith
Maximum safety factor	5
[Ue] rated operational voltage	< 720 V AC 50/60 Hz
[Ui] rated insulation voltage	3 kV 50 Hz for 1 minute
Mounting mode	By screws Clip-on
Mounting support	Mounting plate DIN rail
Width	Outside: 44 mm
Height	Outside: 65 mm
Depth	Frame : 30 mm Total : 37 mm
Diameter	21 mm
Net weight	0.175 kg
[Uimp] rated impulse withstand voltage	3 kV
Electrical insulation class	Class B
Cable outer diameter	21 mm
Sealing	With
Environment
Standards	VDE 0414 IEC 61869-2
Product certifications	CE
IP degree of protection	IP20
Relative humidity	0…95 %
Ambient air temperature for operation	-25…60 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.500 cm
Package 1 Width	5.500 cm
Package 1 Length	8.200 cm
Package 1 Weight	176.200 g
Unit Type of Package 2	S02
Number of Units in Package 2	50
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	9.110 kg
Contractual warranty
Warranty (in months)	18
