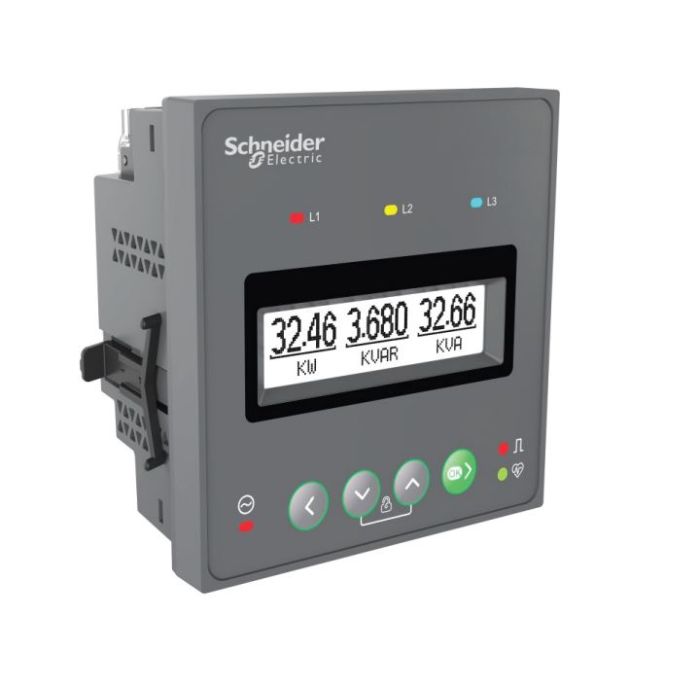

METSEPM1230HCL5 | PM1230H Dual source meter Cl 0.5S RS485 – Schneider Electric

Name: METSEPM1230HCL5 | PM1230H Dual source meter Cl 0.5S RS485 - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: METSEPM1230HCL5
Price: 8042.69 INR
Availability: BackOrder

SKU: METSEPM1230HCL5

Original price was: ₹21,737.00.Current price is: ₹8,042.69. Excl. GST

Dispatch By : 2 Weeks

20 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Sourced through authorised channels, the Schneider Electric METSEPM1230HCL5 power & energy meter from the EasyLogic range delivers dependable performance for accurate electrical measurement and monitoring. Key ratings include 5 A, IP51 front:. myelectric.in stocks the METSEPM1230HCL5 | PM1230H Dual source meter Cl 0.5S RS485 for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	METSEPM1230HCL5
Category	Power & Energy Meter
Main
Range	EasyLogic
Product or component type	Dual source energy meter
Complementary
Power quality analysis	total harmonic distortion
Device application	Main or redundant power monitoring Energy monitoring
Type of measurement	Current Voltage Frequency Power factor Phase angle RPM Peak demand power Harmonic distortion (I THD & U THD) Active power Active energy
Metering type	Calculated neutral current Rotation speed Phase currents Active power P, P1, P2, P3 Unbalance current Power factor and displacement PF (signed, four quadrant) Active, reactive, apparent energy (signed, two quadrant) Reactive power Q, Q1, Q2, Q3 Apparent power S, S1, S2, S3 Demand power P, Q, S Frequency Voltage U21, U32, U13, V1, V2, V3 Unbalance voltage Phase current I1, I2, I3 RMS Average voltage Vavg Average current Iavg
Counter functions	Power interruption ON-load source 1 hour counting ON-load source 2 hour counting ON hour counting
[Us] rated supply voltage	48…277 V AC 45…65 Hz 48…277 V DC
Network frequency	60 Hz 50 Hz
[In] rated current	5 A 1 A
type of network	3P + N 3P 2P 1P + N 2P + N
Maximum power consumption in VA	4 VA at 240 V between phase and neutral
Maximum power consumption in W	2 W at 240 V
Display type	Backlit LCD
Display colour	Monochrome
Display resolution	122 x 32 pixels
Communication of data	Reading of measurements All counters Instantaneous and demand values Last cleared log Revolution speed
Tamperproof of settings	Protected by access code
Sampling rate	32 samples/cycle
Measurement current	5…6000 mA
Signal	Voltage (impedance 5 MOhm)4 x Current 0.005…10 A (impedance 0.3 MOhm)6 x
Measurement voltage	35…480 V AC 50…60 Hz between phases 35…277 V AC 50…60 Hz between phase and neutral 277…999000 V AC 50…60 Hz with external VT
Frequency measurement range	45…65 Hz
Measurement accuracy	Current +/- 0.5 % Voltage +/- 0.5 % Frequency +/- 0.05 % Power factor +/- 0.01 Reactive power +/- 2 % Reactive energy +/- 2 % Active power +/- 0.5 % Apparent power +/- 0.5 % Active energy +/- 0.5 % Apparent energy +/- 0.5 % Harmonic distortion (I THD & U THD) +/- 5 %
Accuracy class	Class 2 reactive energy conforming to IEC 62053-23 Class 0.5 active energy conforming to IEC 62053-22
Number of outputs	1 relay
Output voltage	300 V AC@2 A
Demand intervals	1 s
Local signalling	Green LED: activity Red LED: output signal 1…9999000 pulse/ k_h (kWh, kVAh, kVARh) Red LED: alternate source LED: voltage indication
Communication port protocol	Modbus at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none – 2 wires, insulation 2500 V
Communication port support	RS485
Data recording	Energy consumption logs
Material	Polycarbonate
Flame retardance	V-0 conforming to UL 94
Mounting mode	Flush-mounted
Mounting support	Framework
Provided equipment	Installation guide
Installation category	III
Type of installation	Indoor installation
Measurement category	Category III 480 V
Electrical insulation class	Class II
Connections – terminals	Current circuit: screw clamp terminals (bottom) 2.08…3.31 mm² cable(s) Voltage circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s) Control circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s) Communication: screw clamp terminals (bottom) 0.33…3.31 mm² cable(s) Secondary circuit: screw clamp terminals (bottom) 0.33…3.31 mm² cable(s) Relay output: screw clamp terminals (rear) 0.33…3.31 mm² cable(s)
Tightening torque	Current circuit: 0.9…1 N.m Philips No 2 screwdriver Voltage circuit: 0.9…1 N.m Philips No 2 screwdriver Control circuit: 0.9…1 N.m Philips No 2 screwdriver Communication: 0.5…0.6 N.m Philips no 1 screwdriver Secondary circuit: 0.5…0.6 N.m Philips no 1 screwdriver Relay output: 0.5…0.6 N.m Philips no 1 screwdriver
Wire stripping length	Current circuit: 3.68 mm Voltage circuit: 7 mm Control circuit: 7 mm Communication: 7 mm 7 mm
Standards	IEC 61010-1:ed. 3 UL 61010-1:ed. 3
Product certifications	CE conforming to IEC 61010-1 CULus conforming to UL 61010-1 CULus conforming to CSA C22.2 No 61010-1 C-Tick
Width	96 mm
Depth	Outside : 13 mm Panel : 52 mm
Height	96 mm
Product weight	300 g
Environment
Electromagnetic compatibility	Electrostatic discharge conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 Surge immunity test conforming to IEC 61000-4-5 Conducted RF disturbances conforming to IEC 61000-4-6 Magnetic field at power frequency conforming to IEC 61000-4-8 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 Emission tests conforming to FCC part 15 class A Emission tests conforming to FCC part 15 Subpart C Emission tests conforming to FCC part 15 Subpart E
Overvoltage category	III
IP degree of protection	IP51 front: conforming to IEC 60529 IP30 body: conforming to IEC 60529
Relative humidity	5…95 % at 50 °C
Pollution degree	2
Ambient air temperature for operation	-10…60 °C
Ambient air temperature for storage	-20…70 °C
Operating altitude	<= 2000 m
service life	7 year(s)
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	4.88 cm
Package 1 Width	9.6 cm
Package 1 Length	9.6 cm
Package 1 Weight	350.0 g
Contractual warranty
Warranty (in months)	18
