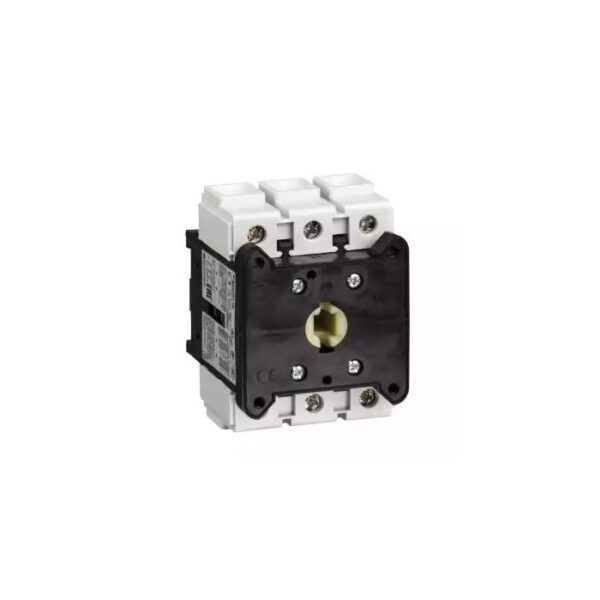

V6 | BODY 3P DISCON SWITCH175A – Schneider Electric

Name: V6 | BODY 3P DISCON SWITCH175A - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: V6
Price: 200.45 EUR
Availability: BackOrder

SKU: V6

Original price was: €357.96.Current price is: €200.45. Excl. GST

Dispatch By : 3 Weeks

20 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-44%

VZ16 | PE TERMINAL 175A – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: VZ16

-44%

VZ31 | SHAFT EXTENSION PIECE – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: VZ31

-44%

VZ10 | 3 POLE INPUT TERMI- COVER – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: VZ10

-44%

KZ74 | DOOR INTERLOCK PIECE – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: KZ74

-38%

VZ7 | TeSys VARIO – auxiliary contact block – 1 NC early-break+1 NO late-make – Schneider Electric

Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: VZ7

-38%

VZ20 | TeSys VARIO – auxiliary contact block – 1 NO + 1 NO – Schneider Electric

Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: VZ20

-43%

VZ18 | TeSys VARIO – shaft extension – for V3 / V4 / V5 / V6 – Schneider Electric

Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: VZ18

The Schneider Electric V6 is an electrical component from the TeSys range, engineered for industrial, commercial, and infrastructure applications in demanding Indian and international installations. Key ratings include 83 A AC-23 Ue: 400 V, 690 V AC 50/60 Hz, 3P. Buy the V6 | BODY 3P DISCON SWITCH175A online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	V6
Category	Electrical Component
Main
Range	TeSys
Product Name	TeSys VARIO
Device Short Name	V
Product Type	Switch body
Complementary
Mounting Support	Symmetrical rail Plate
Performance Level	High performance
Number of Poles	3P
Contact Type and Composition	3 NO
Network type	AC DC
Network frequency	50/60 Hz
[Ue] IEC Rated Operational Voltage	690 V AC 50/60 Hz
IEC Rated Operational Power in W	30 kW at 230…240 V (AC-3) 37 kW at 400…415 V (AC-3) 37 kW at 690 V (AC-3) 45 kW at 500 V (AC-3) 45 kW at 690 V (AC-23A) 55 kW at 500 V (AC-23A) 30 kW at 230…240 V (AC-23A) 45 kW at 400…415 V (AC-23A)
[Ie] Rated Operational Current	83 A AC-23 Ue: 400 V
[Ith] Conventional Free Air Thermal Current	175 A
[Ithe] Conventional Enclosed Thermal Current	140 A
Making capacity ( I Rms)	1750 A at 400 V AC-22A 1750 A at 400 V AC-23A 1600 A at 400 V AC-21A
Breaking Capacity	1400 A at 400 V (AC-21A) 1400 A at 400 V (AC-22A) 1400 A at 400 V (AC-23A)
Rated Conditional Short Circuit Current	10 kA at 400 V – associated fuse 200 A aM 10 kA at 400 V – associated fuse 200 A gG
[Icm] Rated Short Circuit Making Capacity	2.8 kA at 400 V at Ipeak
Intermittent duty class	30
Suitability for isolation	Yes
[Uimp] rated impulse withstand voltage	8 kV
[Icw] rated short-time withstand Rms current	2100 A at 400 V duration: 1 s
Mechanical Durability	30000 cycles
Electrical Durability	30000 cycles AC-21 30000 cycles DC-1…5
IEC Terminal Connection	Power circuit: screw clamp terminals70 mm² – flexible – with cable end Power circuit: screw clamp terminals95 mm² – solid
Tightening Torque	Power circuit: 22.6 N.m – on screw clamp terminals
Height	125 mm
Width	90 mm
Depth	90 mm
Product Weight	0.9 kg
Environment
Standards	IEC 60947-3
Product Certifications	UL CSA GL UKCA
Degree of Protection	IP20 conforming to IEC 60529
Protective Treatment	TC
Mechanical Robustness	Vibrations 10…150 Hz (1 gn) conforming to IEC 60068-2-6 Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27
Ambient Air Temperature for Operation	-20…50 °C
Fire Resistance	960 °C conforming to IEC 60695-2-1
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	11.3 cm
Package 1 Width	13.2 cm
Package 1 Length	10.0 cm
Package 1 Weight	906.0 g
Unit Type of Package 2	S02
Number of Units in Package 2	6
Package 2 Height	15.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	5.754 kg
Contractual warranty
Warranty (in months)	18
