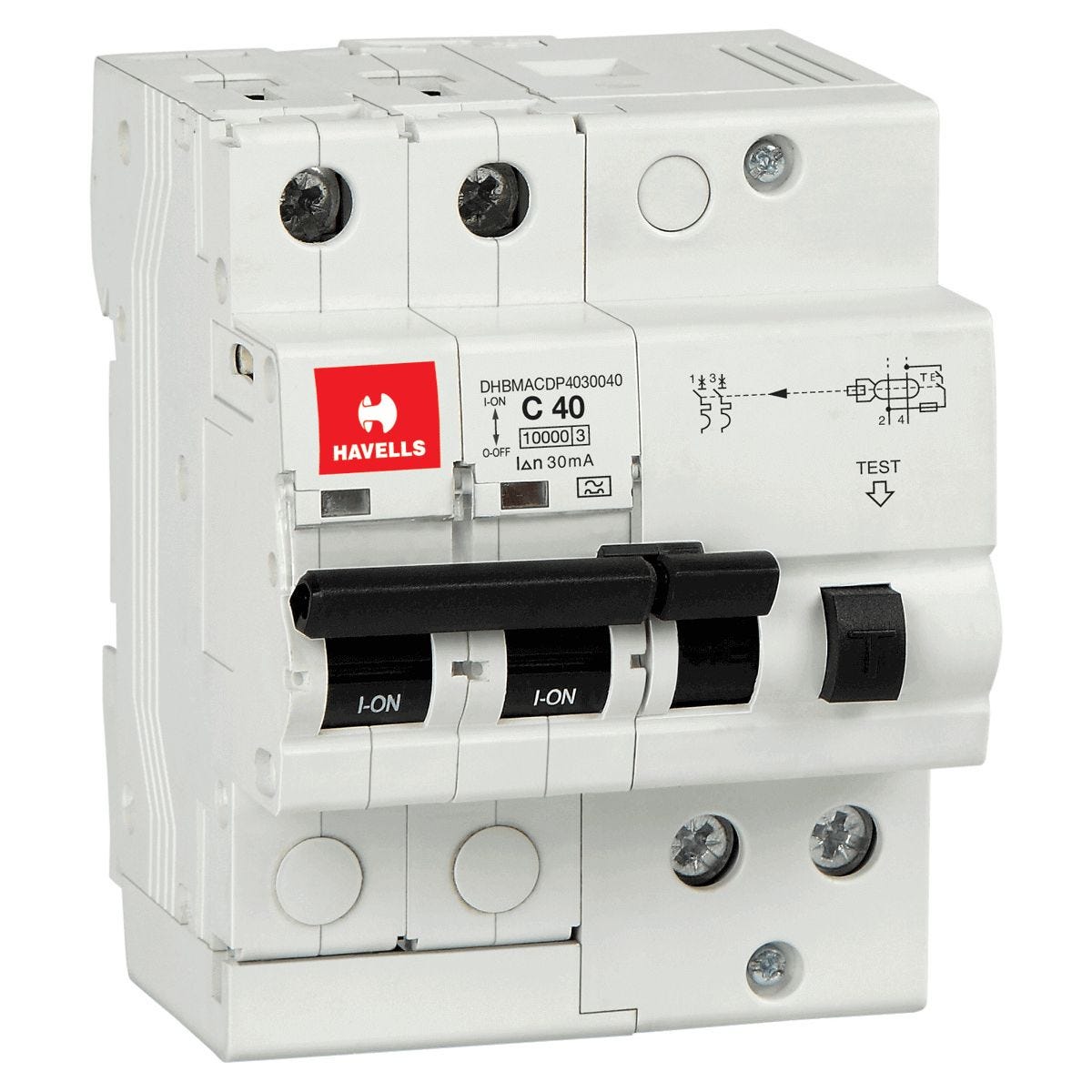

Havells DHBMACDP4030040 RCBO ‘A’ Type SPN 2M 30mA – 40A
Key Features:
- Type: ‘A’ Class RCBO (Residual Current Breaker with Overcurrent)
- Poles: Single Pole + Neutral (SPN)
- Module Width: 2 Module (2M)
- Sensitivity: 30mA (High protection against electric shocks)
- Current Rating: 40A (Suitable for heavy load circuits)
- Breaking Capacity: 6kA (Reliable protection against short circuits)
- Voltage Rating: 230V AC
- Standards: Complies with IEC 61009-1
- Brand: Havells (Premium quality electrical components)
Applications:
- Protection against earth leakage currents
- Protection against overload and short circuits
- Ideal for residential and commercial installations
- Suitable for lighting and power circuits
Technical Specifications:
| Parameter | Specification |
|---|---|
| Product Code | DHBMACDP4030040 |
| Type | A |
| Number of Poles | 1P+N (SPN) |
| Rated Current | 40A |
| Rated Residual Operating Current | 30mA |
| Rated Voltage | 230V AC |
| Breaking Capacity | 6kA |
| Module Size | 2 Module |
| Standards | IEC 61009-1 |
| Brand | Havells |
Why Choose This RCBO?
- Combines MCB and RCCB functions in one device
- Compact design saves space in distribution boards
- High-quality construction for durability
- Prevents electrical accidents and equipment damage
- Easy installation in standard DIN rail panels
Package Includes:
- 1 x Havells RCBO A Type 40A 30mA
