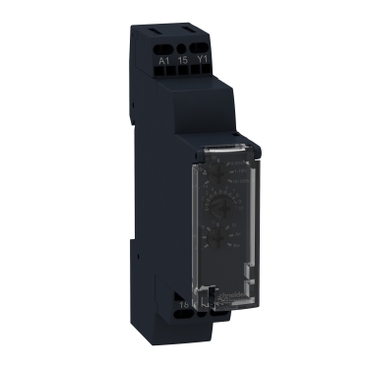

RE10RMMU | 17.5MM TIMER RELAY 4 FUNCTION ABCH (FOR INDUSTRIAL CONSUMER) – Schneider Electric

Name: Schneider Electric RE10RMMU 17.5mm Timer Relay
Brand: Schneider Electric
SKU: RE10RMMU
Price: 1376.32 INR
Availability: InStock

SKU: RE10RMMU

Original price was: ₹2,992.00.Current price is: ₹1,376.32. Excl. GST

In stock

14 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Looking for the RE10RMMU | 17.5MM TIMER RELAY 4 FUNCTION ABCH (FOR INDUSTRIAL CONSUMER)? This genuine Schneider Electric relay from the Harmony Relay range is built for motor control and switching, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include IP20 terminal block:. Order part number RE10RMMU from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	RE10RMMU
Category	Relay
Main
Range of product	Harmony Relay
Discrete output type	Relay
Product or component type	Modular timing relay
Component name	RE11R
Time delay type	D H B Ht Ac Bw C Di At A
Time delay range	10…100 h 0.1…1 s 1…10 h 6…60 s 1…10 s 1…10 min 6…60 min
[Us] rated supply voltage	24 V DC 24…240 V AC 50/60 Hz
nominal output current	8 A
Complementary
Contacts type and composition	1 C/O
Contacts material	AgNi (cadmium free)
Width pitch dimension	17.5 mm
Control type	Selector switch front panel
Voltage range	0.85…1.1 Us
Connections – terminals	Screw terminals, 2 x 1.5 mm² without cable end
Housing material	Polycarbonate
Repeat accuracy	+/- 0.5 % conforming to IEC 61812-1
Temperature drift	+/- 0.05 %/°C
Voltage drift	+/- 0.2 %/V
Setting accuracy of time delay	+/- 10 % of full scale at 25 °C conforming to IEC 61812-1
Minimum pulse duration	100 ms with load in parallel 30 ms
Reset time	100 ms on de-energisation
On-load factor	100 %
Power consumption in VA	32 VA at 240 V
Power consumption in W	0.6 W at 24 V 1.5 W at 240 V
minimum switching current	10 mA
Maximum switching current	8 A
Maximum switching voltage	250 V
breaking capacity	2000 VA
breaking capacity	80 W
Electrical durability	100000 cycles at 8 A, 250 V for resistive load
Mechanical durability	5000000 cycles
[Uimp] rated impulse withstand voltage	5 kV for 1.2…50 µs conforming to IEC 60664-1 5 kV for 1.2…50 µs conforming to IEC 61812-1
Marking	CE
Creepage distance	4 kV/3 conforming to IEC 60664-1
Mounting support	35 mm symmetrical mounting rail conforming to EN 50022
Local signalling	LED indicator green, flashing for timing in progress LED indicator green, steady for relay energised, no timing in progress LED indicator green, blinking for relay energised, no timing in progress (except functions Di-D)
Product weight	0.06 kg
Compatibility code	RE10
Environment
Immunity to microbreaks	10 ms
Dielectric strength	2.5 kV for 1 mA/1 minute at 50 Hz conforming to IEC 61812-1
Standards	IEC 60669-2-3 EN 50082-1/2 EN 50081-1/2 IEC 61812-1
Directives	93/68/EEC – low voltage directive 73/23/EEC – low voltage directive 89/336/EEC – electromagnetic compatibility
Product certifications	CSA GL cULus
Ambient air temperature for storage	-30…60 °C
Ambient air temperature for operation	-20…60 °C
IP degree of protection	IP20 terminal block: conforming to IEC 60529 IP40 housing: conforming to IEC 60529 IP50 front panel: conforming to IEC 60529
Vibration resistance	0.35 mm (f= 10…55 Hz) conforming to IEC 60068-2-6
Relative humidity	93 % without condensation conforming to IEC 60068-2-3
Electromagnetic compatibility	Electrostatic discharge – test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 Electrostatic discharge – test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test – test level: 10 V/m level 3 (80 MHz…1 GHz) conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test – test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test – test level: 2 kV level 3 (direct) conforming to IEC 61000-4-4 Surge immunity test – test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5 Surge immunity test – test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5 Conducted RF disturbances – test level: 10 V (0.15…80 MHz) conforming to IEC 61000-4-6 Immunity to microbreaks and voltage drops – test level: 30 % (10 ms) conforming to IEC 61000-4-11 Immunity to microbreaks and voltage drops – test level: 60 % (100 ms) conforming to IEC 61000-4-11 Immunity to microbreaks and voltage drops – test level: 95 % (5 s) conforming to IEC 61000-4-11 Conducted and radiated emissions class B group 1 conforming to EN 55022
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8.4 cm
Package 1 Width	2.5 cm
Package 1 Length	8 cm
Package 1 Weight	84.5 g
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IEC 60947-5-1 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: How do I test the RE10RMMU relay in the field without a signal source?

A: Most Schneider Electric relays can be manually forced using the test button (if fitted) — this mechanically closes the relay contacts without energising the coil, allowing functional testing of the controlled circuit. For coil testing, use a multimeter to measure coil resistance (typically 500–2000Ω for AC coils at rated voltage) and compare with datasheet values.

Q: Can the RE10RMMU relay be mounted on a DIN rail socket for easy replacement?

A: This Schneider Electric relay typically requires direct panel or DIN rail wiring. For applications requiring frequent relay replacement, consider the plug-in relay variant of this series with a matching socket base.
