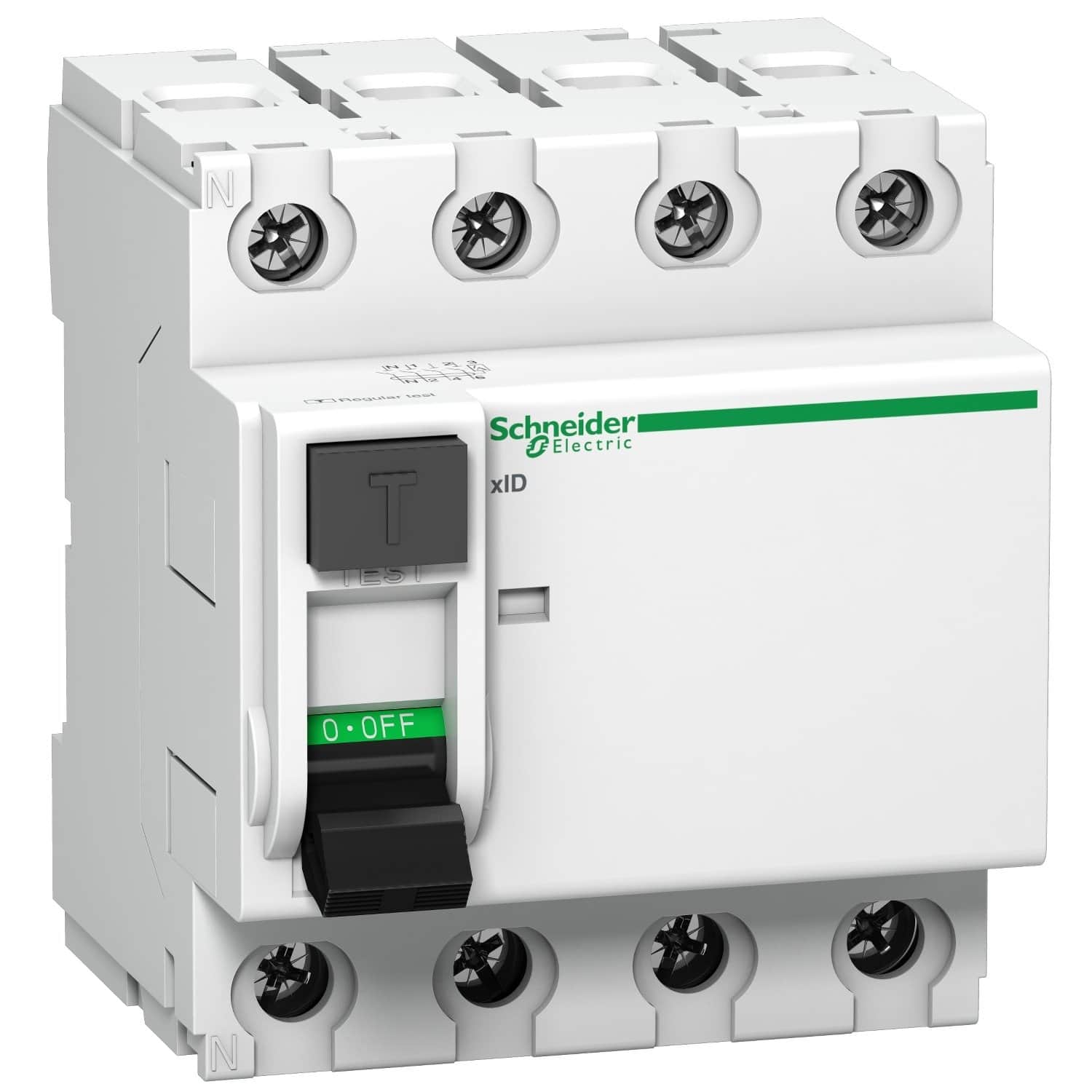

A9N16252 | Acti 9 xID Residual Circuit Breaker

Product Overview

The A9N16252 is a high-performance residual circuit breaker from Schneider Electric’s Acti 9 xID series. Designed for safety and reliability, this device is ideal for protecting electrical installations against residual currents, ensuring the safety of people and equipment.

Key Features

• Rated Current: 25 A
• Number of Poles: 4P (4 Poles)
• Residual Current Sensitivity: 300 mA
• Class: AC (for sinusoidal residual currents)
• Type: Instantaneous
• Mounting: DIN rail mounting
• Standards Compliance: IEC/EN 61008-1, IEC/EN 61009-1
• Breaking Capacity: High breaking capacity for reliable protection
• Compact Design: Space-saving and easy to install
• Indicator: Visual indication of fault conditions
• Test Button: Integrated test button for regular functionality checks

Applications

The A9N16252 is suitable for a wide range of applications, including:

• Residential buildings
• Commercial and industrial installations
• Electrical distribution boards
• Protection against electric shock and fire hazards

Technical Specifications

Safety and Compliance

The A9N16252 complies with international safety standards, ensuring reliable protection and performance. It is designed to detect and interrupt residual currents, preventing electric shocks and fire hazards.

Installation and Maintenance

Installation is straightforward with DIN rail mounting. Regular testing using the integrated test button ensures the device remains functional and reliable over time.

Conclusion

The A9N16252 is a robust and reliable residual circuit breaker, offering advanced protection for electrical installations. Its compact design, high performance, and compliance with safety standards make it an excellent choice for both residential and industrial applications.
