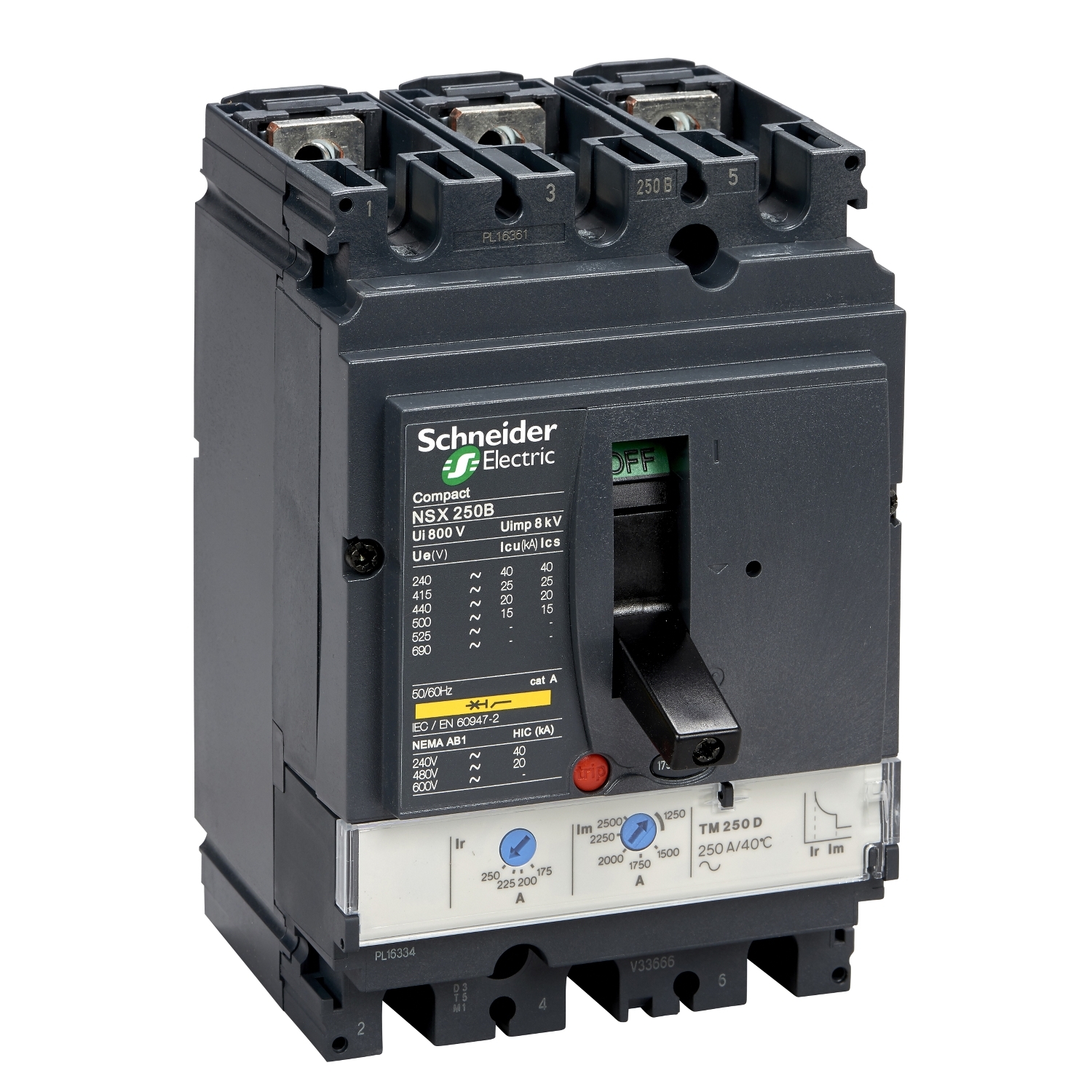

LV431111 | Compact NSX250B Circuit Breaker

Product Overview

The Compact NSX250B is a high-performance circuit breaker designed by Schneider Electric for reliable protection and control of electrical circuits. It is suitable for a wide range of applications, including industrial, commercial, and infrastructure projects.

Key Features

• Model: Compact NSX250B
• Rated Current: 200 A
• Breaking Capacity: 25 kA at 415 VAC
• Trip Unit: TMD (Thermal Magnetic Trip Unit)
• Number of Poles: 3 poles
• Mounting Type: 3D (Fixed Version)
• Voltage Rating: 415 VAC
• Standards Compliance: IEC 60947-2, IEC 60947-4-1
• Protection Functions: Overload and short-circuit protection
• Terminal Type: Screw-type terminals
• Operating Temperature: -25°C to +70°C
• Mechanical Durability: Up to 20,000 operations
• Electrical Durability: Up to 10,000 operations
• Dimensions: Compact design for space-saving installation
• Color: Grey

Applications

The Compact NSX250B is ideal for use in:

• Motor protection
• Distribution boards
• Industrial control panels
• Commercial buildings
• Data centers

Benefits

• High breaking capacity ensures reliable protection
• Compact design saves space in electrical panels
• Thermal magnetic trip unit provides precise protection
• Durable construction for long-lasting performance
• Easy installation and maintenance

Additional Information

For more details, technical specifications, or support, please visit the official Schneider Electric website or contact your local distributor.
