Product Description – C25B42D250

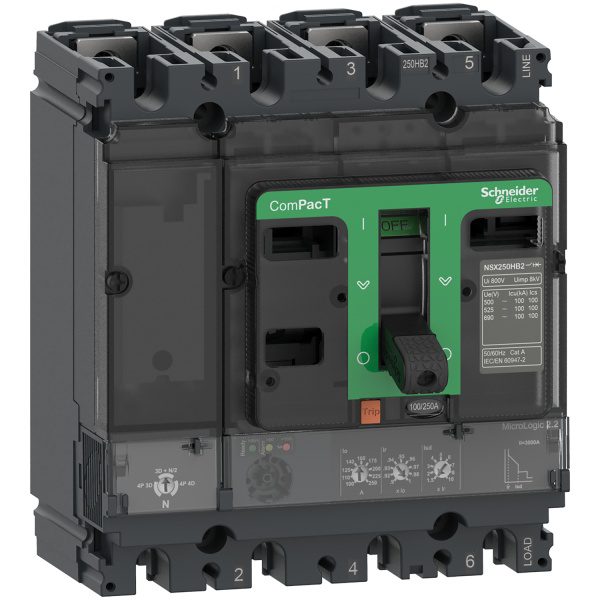

Circuit Breaker – ComPacT NSX250B

Manufacturer: Schneider Electric

Model: C25B42D250

Type: Circuit Breaker

Series: ComPacT NSX

Rated Current: 250A

Breaking Capacity: 25kA at 415V AC

Number of Poles: 4 Poles

Trip Unit: MicroLogic 2.2

Voltage Rating: 415V AC

Application: Suitable for industrial and commercial applications, providing reliable protection for electrical circuits.

Features:

• High Breaking Capacity: 25kA at 415V AC ensures reliable protection in case of short circuits.
• MicroLogic 2.2 Trip Unit: Provides advanced protection features, including overload and short-circuit protection.
• 4-Pole Design: Ensures comprehensive protection for three-phase systems with neutral.
• Compact Design: Space-saving design suitable for tight installations.
• Easy Installation: Designed for quick and easy installation with minimal downtime.
• Durability: Robust construction ensures long-term reliability and performance.
• Compatibility: Compatible with a wide range of Schneider Electric accessories and systems.
• Safety: Meets international safety standards, ensuring safe operation in various environments.

Applications:

• Industrial plants
• Commercial buildings
• Data centers
• Power distribution systems
• Renewable energy systems

Standards Compliance:

• IEC 60947-2
• IEC 60947-4-1
• UL 489
• CSA C22.2 No. 5

Dimensions:

• Width: 144mm
• Height: 180mm
• Depth: 85mm

Weight: Approximately 5.5kg

Environmental Conditions:

• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +85°C
• Humidity: Up to 95% non-condensing

Warranty: Standard manufacturer warranty applies.

Additional Information: For more details, refer to the product datasheet or contact Schneider Electric support.
