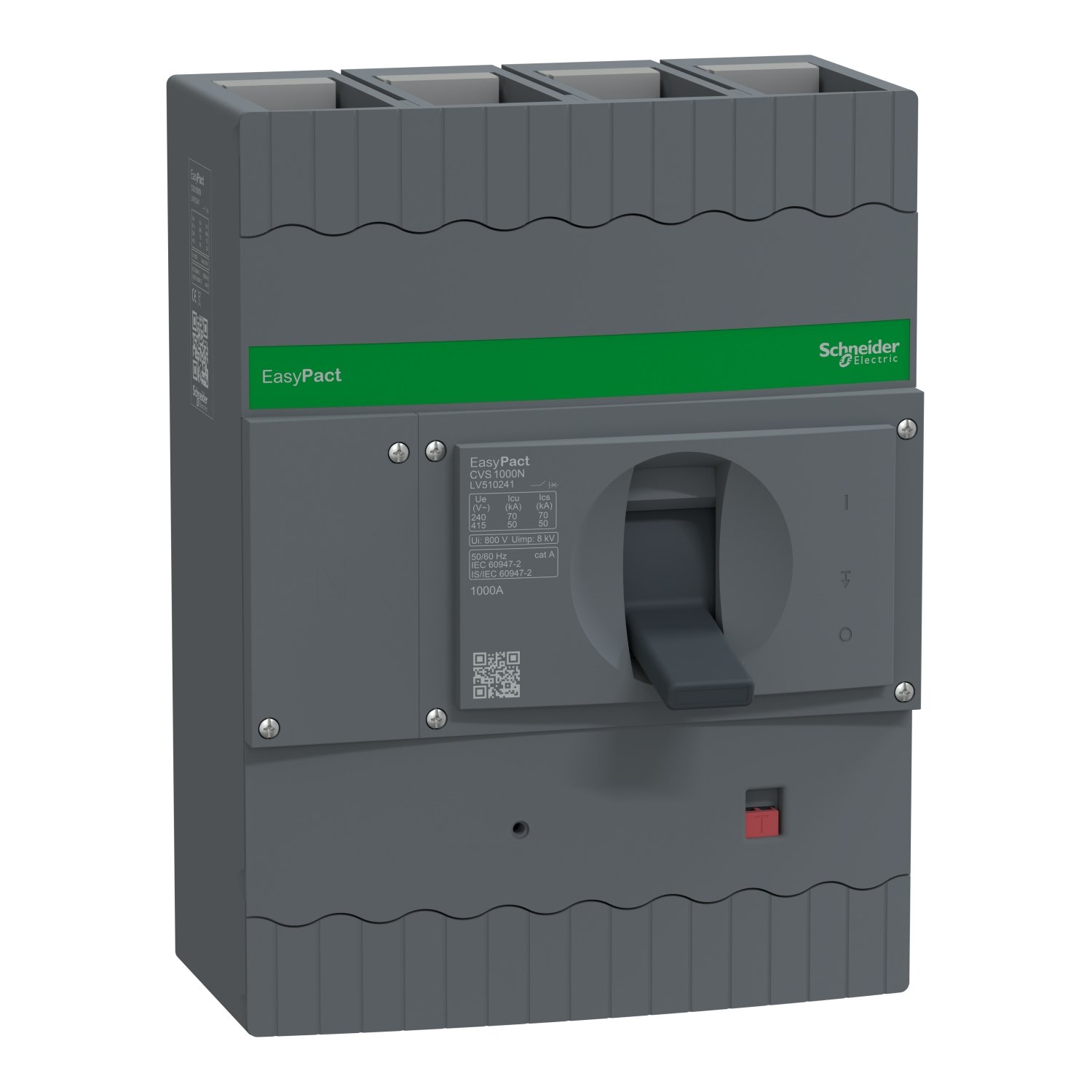

LV510241 | Circuit Breaker, EasyPact CVS1000N

Product Overview

The LV510241 is a high-performance circuit breaker from Schneider Electric’s EasyPact CVS1000N series. Designed for industrial and commercial applications, this circuit breaker offers reliable protection and advanced features to ensure the safety and efficiency of electrical systems.

Key Features

• Model: EasyPact CVS1000N
• Rated Current: 1000A
• Number of Poles: 4P (4 Poles)
• Breaking Capacity: 50kA at 415VAC
• Tripping Unit: ETS 2.3 (Electronic Trip Unit)
• Voltage Rating: 415VAC
• Mounting: Fixed
• Standards Compliance: IEC 60947-2
• Protection Functions: Overload, Short Circuit, Ground Fault
• Communication Capability: Optional communication modules for remote monitoring and control
• Environmental Conditions: Suitable for operation in temperatures ranging from -5°C to +40°C
• Mechanical Durability: High mechanical endurance with up to 20,000 operations
• Electrical Durability: High electrical endurance with up to 10,000 operations at rated current

Applications

The EasyPact CVS1000N circuit breaker is ideal for use in a variety of applications, including:

• Industrial plants
• Commercial buildings
• Data centers
• Power distribution systems
• Renewable energy systems

Benefits

• Enhanced safety with advanced protection features
• High breaking capacity for reliable performance in demanding environments
• Flexible communication options for integration into modern control systems
• Robust construction for long-lasting durability
• Compliance with international standards for quality and safety

Dimensions and Weight

• Width: 144 mm
• Height: 240 mm
• Depth: 100 mm
• Weight: Approximately 10 kg

Warranty

Schneider Electric offers a standard warranty of 24 months from the date of purchase, covering manufacturing defects and workmanship.

Support and Documentation

For technical support, user manuals, and additional documentation, visit the official Schneider Electric website or contact their customer service team.
