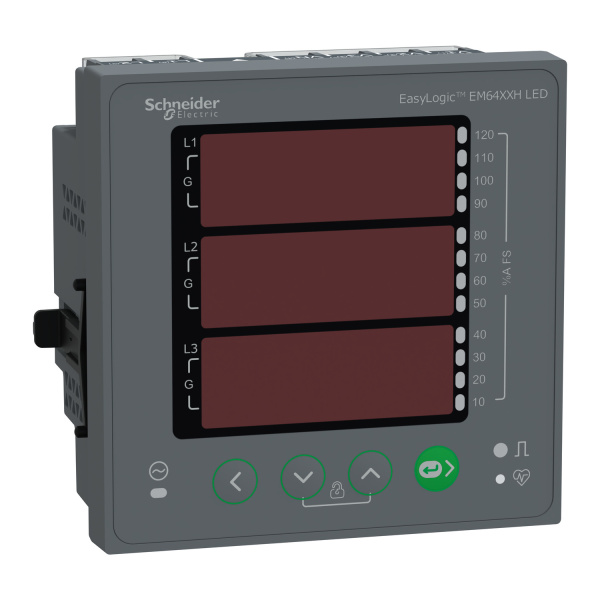

METSEEM6438HCL10RS | CONZERV EM6438H DUAL P&E RS485 CL1.0 – Schneider Electric
Product Overview
The METSEEM6438HCL10RS is a high-performance energy meter from Schneider Electric’s CONZERV series. It is designed for accurate measurement and monitoring of electrical parameters in industrial, commercial, and residential applications. This dual power and energy meter with RS485 communication is compliant with Class 1.0 accuracy standards, ensuring reliable and precise energy management.
Key Features
- Dual Power & Energy Measurement: Measures both active and reactive energy, as well as power parameters, providing comprehensive energy data.
- RS485 Communication: Equipped with an RS485 interface for seamless integration with energy management systems and SCADA.
- Class 1.0 Accuracy: Complies with IEC 62053-21 standards, ensuring high accuracy in energy measurement.
- Wide Voltage Range: Supports a wide input voltage range, making it suitable for various electrical systems.
- Multi-Tariff Support: Capable of handling multiple tariff structures, enabling efficient energy cost management.
- LCD Display: Features a clear LCD display for easy reading of measured parameters and energy data.
- Modbus Protocol: Supports Modbus RTU protocol for easy integration with automation systems.
- Compact Design: Compact and robust design for easy installation in control panels or distribution boards.
- Event Logging: Records energy consumption and power quality events for detailed analysis and troubleshooting.
- Tamper Detection: Includes tamper detection features to ensure data integrity and prevent unauthorized access.
Applications
The METSEEM6438HCL10RS is ideal for use in:
- Industrial plants
- Commercial buildings
- Residential complexes
- Data centers
- Renewable energy systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Accuracy Class | Class 1.0 (IEC 62053-21) |
| Voltage Range | 230V AC ±20% |
| Current Range | 5A to 100A (via CT) |
| Communication | RS485, Modbus RTU |
| Display | LCD with backlight |
| Dimensions | 96mm x 96mm x 65mm |
| Mounting | DIN rail or panel mount |
| Operating Temperature | -10°C to +55°C |
| Protection Class | IP51 |
Warranty and Support
Schneider Electric offers a standard warranty period for this product. For technical support and warranty claims, please contact Schneider Electric’s customer service or authorized distributors.
