METSEEM6459HCL10NC | CONZERV EM6459H VAF PF DPM NO COM CL 1.0 – Schneider Electric

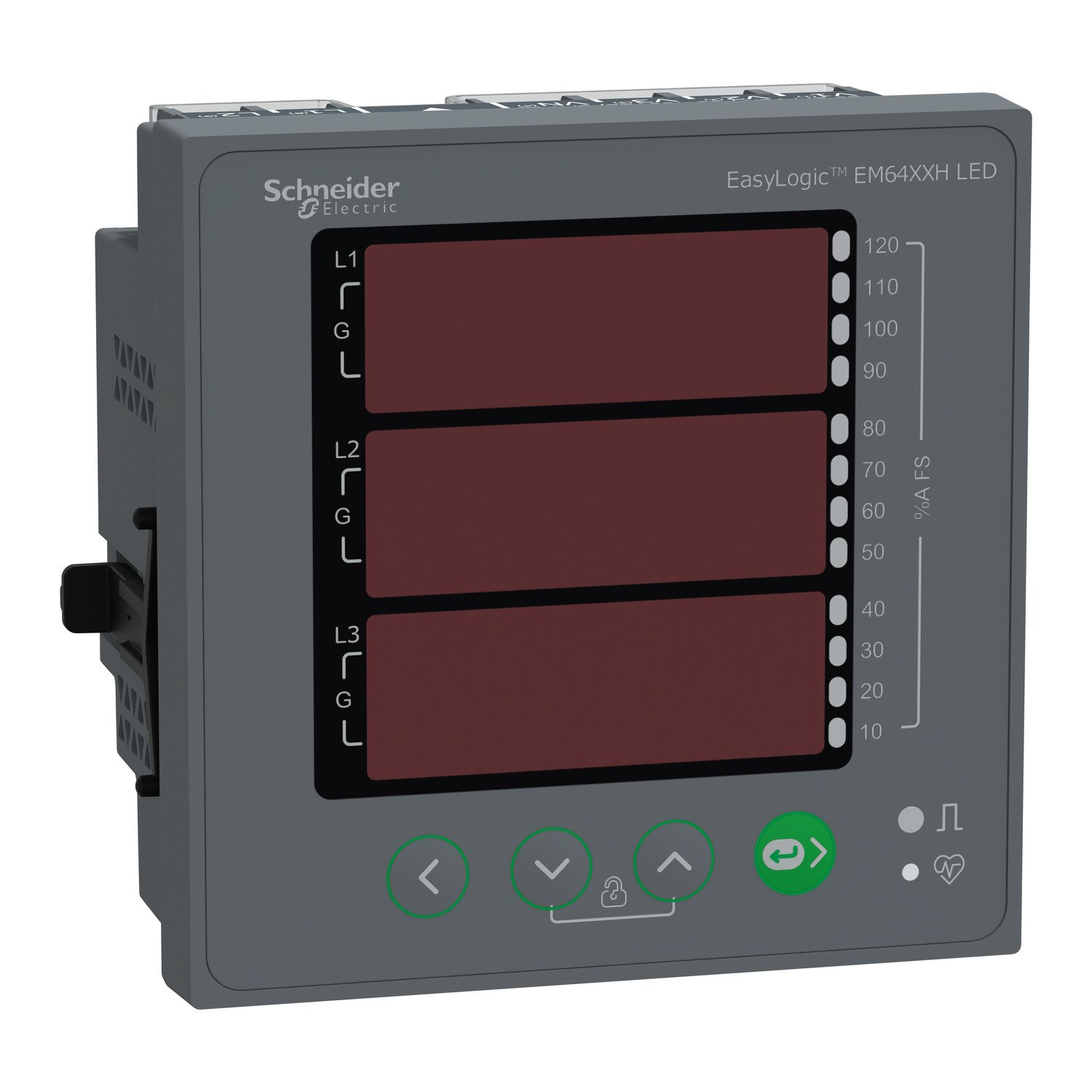

Name: Schneider Electric EM6459H VAF PF DPM Meter | METSEEM6459HCL10NC
Brand: Schneider Electric
SKU: METSEEM6459HCL10NC
Price: 3510.78 INR
Availability: InStock

SKU: METSEEM6459HCL10NC

Original price was: ₹8,359.00.Current price is: ₹3,510.78. Excl. GST

In stock

11 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

The Schneider Electric METSEEM6459HCL10NC is a power & energy meter from the EasyLogic range, engineered for accurate electrical measurement and monitoring in demanding Indian and international installations. Key ratings include 5 A, IP51 front:. Buy the METSEEM6459HCL10NC | CONZERV EM6459H VAF PF DPM NO COM CL 1.0 online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	METSEEM6459HCL10NC
Category	Power & Energy Meter
Main
Range	EasyLogic
Product name	EasyLogic EM64XXH NC
Device short name	EM6459H
Product or component type	VAF PF meter
Complementary
Device application	Power monitoring Power factor control Load control
Type of measurement	Current Voltage Frequency Power factor RPM
Metering type	Frequency Phase currents Power factor and displacement PF (signed, four quadrant) Unbalance current Percentage of load Calculated neutral current Unbalance voltage Rotation speed Average voltage Vavg Average current Iavg Voltage U21, U32, U13, V1, V2, V3
Counter functions	Power interruption ON hour counting Power outage counting
[Us] rated supply voltage	44…277 V AC 45…65 Hz 44…277 V DC
Network frequency	50 Hz 60 Hz
[In] rated current	5 A 1 A
type of network	3P 1P + N 3P + N 2P 2P + N
Maximum power consumption in VA	4 VA at 240 V between phase and neutral
Maximum power consumption in W	2 W at 240 V
Display type	7 segments LED
Display colour	Red
Messages display capacity	3 fields of 4 characters
Display digits	12 digit(s) – 14.2 mm in height
Communication of data	Revolution speed All counters Percentage of load Reading of measurements
Tamperproof of settings	Protected by access code
Sampling rate	32 samples/cycle
Measurement current	5…6000 mA
Signal	Voltage (impedance 5 MOhm)4 x Current 0.005…10 A (impedance 0.3 MOhm)6 x
Measurement voltage	46…277 V AC 50…60 Hz between phase and neutral 80…480 V AC 50…60 Hz between phases 277…999000 V AC 50…60 Hz with external VT
Frequency measurement range	45…65 Hz
Measurement accuracy	Frequency +/- 0.05 % Power factor +/- 0.01 Current +/- 1 % Voltage +/- 1 %
Number of outputs	0
Demand intervals	1 s
Local signalling	Green LED: activity Red LED: output signal 1…9999000 pulse/ k_h (kWh, kVAh, kVARh)
Material	Polycarbonate
Flame retardance	V-0 conforming to UL 94
Mounting mode	Flush-mounted
Mounting support	Framework
fixing mode	By clamp
Provided equipment	Installation guide
Installation category	III
Type of installation	Indoor installation
Measurement category	Category III 35…480 V
Electrical insulation class	Class II
Connections – terminals	Current circuit: screw clamp terminals (bottom) 2.08…3.31 mm² cable(s) Voltage circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s) Control circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s)
Tightening torque	Current circuit: 0.9…1 N.m Philips No 2 screwdriver Voltage circuit: 0.9…1 N.m Philips No 2 screwdriver Control circuit: 0.9…1 N.m Philips No 2 screwdriver
Wire stripping length	Current circuit: 3.68 mm Voltage circuit: 7 mm Control circuit: 7 mm Communication: 7 mm
Standards	IEC 61010-1:ed. 3 UL 61010-1:ed. 3
Product certifications	CE conforming to IEC 61010-1 CULus conforming to UL 61010-1 CULus conforming to CSA C22.2 No 61010-1 C-Tick
Width	96 mm
Depth	Outside : 13 mm Panel : 49 mm
Height	96 mm
Product weight	300 g
Environment
Electromagnetic compatibility	Electrostatic discharge conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 Surge immunity test conforming to IEC 61000-4-5 Conducted RF disturbances conforming to IEC 61000-4-6 Magnetic field at power frequency conforming to IEC 61000-4-8 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 Emission tests conforming to FCC part 15 class A Emission tests conforming to FCC part 15 Subpart C Emission tests conforming to FCC part 15 Subpart E
Overvoltage category	III
IP degree of protection	IP51 front: conforming to IEC 60529 IP30 body: conforming to IEC 60529
Relative humidity	5…95 % at 50 °C
Pollution degree	2
Ambient air temperature for operation	-10…60 °C
Ambient air temperature for storage	-20…70 °C
Operating altitude	<= 2000 m
service life	7 year(s)
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	4.88 cm
Package 1 Width	9.6 cm
Package 1 Length	9.6 cm
Package 1 Weight	0.25 kg
Unit Type of Package 2	S03
Number of Units in Package 2	18
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	4.5 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
