LC1E0601M7 | Easy TeSys Contactor

Product Description

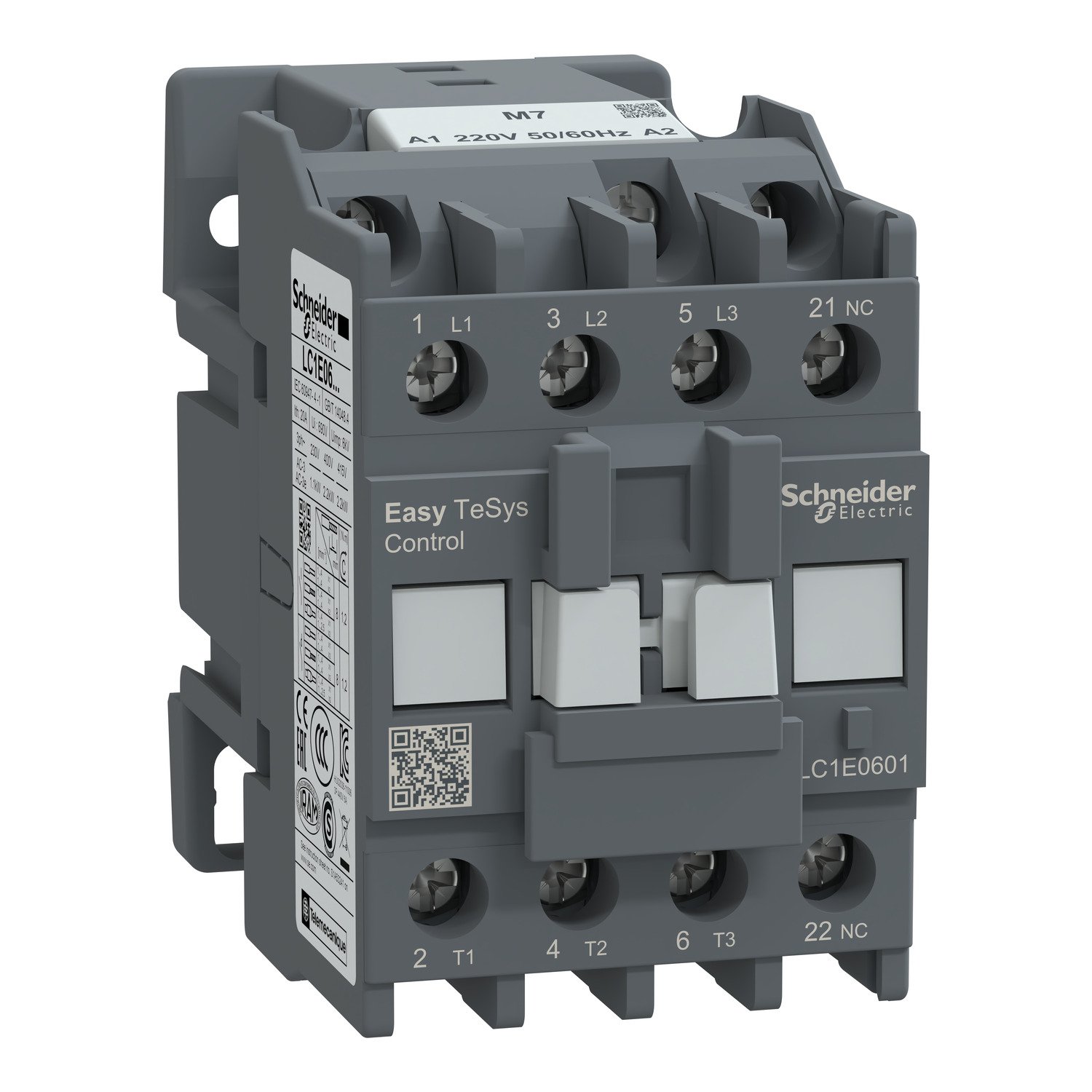

The LC1E0601M7 is a 3-pole (3 NO) contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching and control of electrical loads. It is suitable for AC-3 applications and operates at voltages up to 440 V with a current rating of 6 A. The contactor features a 220 V AC coil, making it ideal for a wide range of industrial and commercial applications.

Key Features

• Type: Contactor
• Series: Easy TeSys
• Number of Poles: 3 (3 Normally Open – NO)
• Rated Operational Voltage (Ue): ≤ 440 V AC
• Rated Operational Current (Ie): 6 A (AC-3)
• Coil Voltage: 220 V AC
• Application Category: AC-3 (Squirrel cage motors: starting, switching off)
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Mounting: Screw mounting or snap-on mounting
• Terminal Type: Screw terminals
• Dimensions: Compact design for space-saving installation
• Standards Compliance: IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14
• Environmental Protection: IP20 (finger-safe protection)
• Operating Temperature Range: -25°C to +60°C
• Weight: Lightweight for easy handling

Applications

The LC1E0601M7 contactor is widely used in:

• Motor control applications
• HVAC systems
• Lighting control
• Industrial automation
• Power distribution systems

Advantages

• High reliability and durability
• Easy installation and maintenance
• Compact and space-saving design
• Compatible with a wide range of accessories
• Complies with international standards for safety and performance

Additional Resources

For more details, refer to the Schneider Electric website or the product datasheet.
