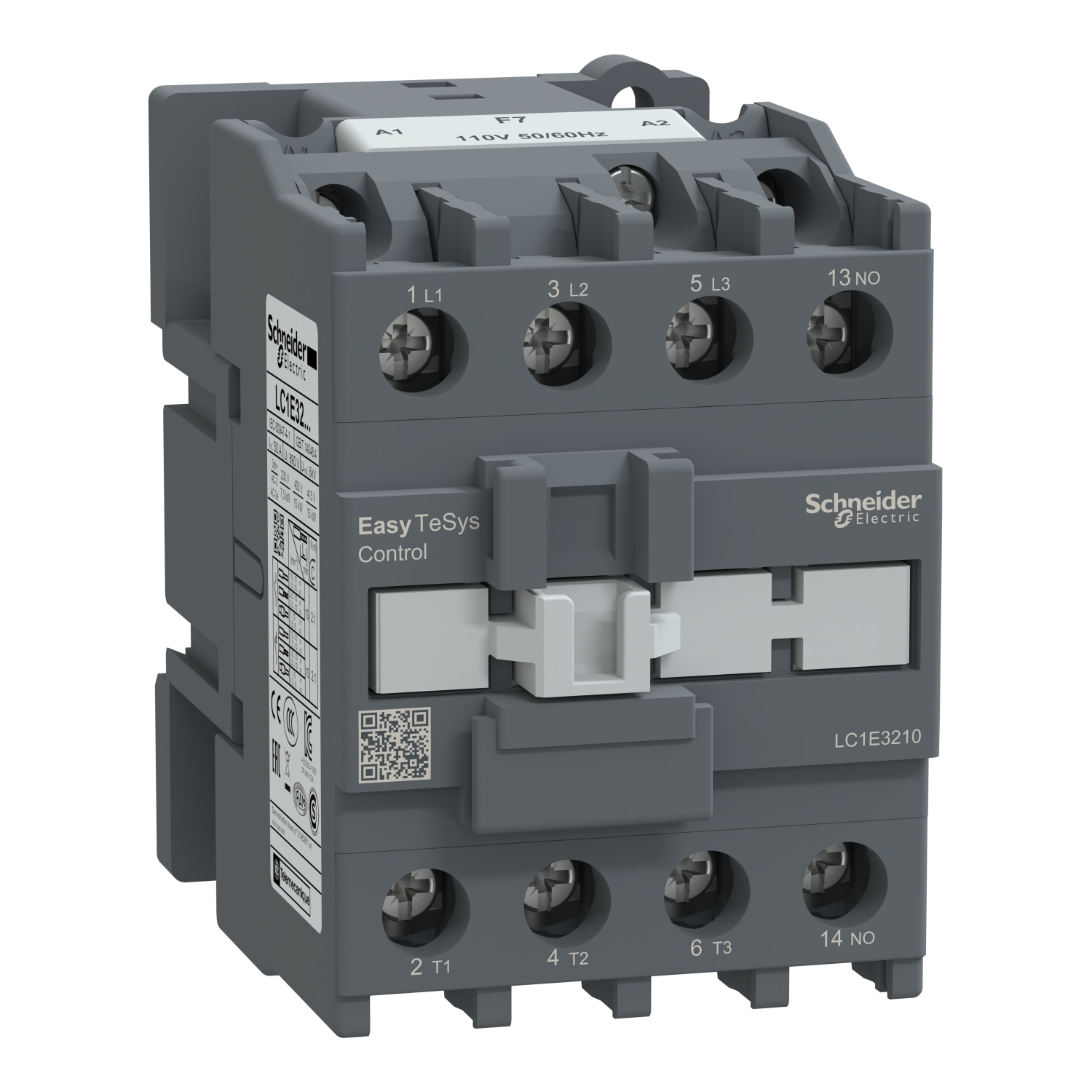

LC1E3210F7 | Easy TeSys Contactor

Product Description

The LC1E3210F7 is a 3-pole contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching of electrical loads. It is suitable for AC-3 applications and operates at voltages up to 440 V with a current rating of 32 A. The contactor features a 110 V AC coil, making it ideal for a wide range of industrial and commercial applications.

Key Features

• Type: Contactor
• Series: Easy TeSys
• Number of Poles: 3 (3 NO – Normally Open)
• Rated Operational Voltage (Ue): Up to 440 V AC
• Rated Operational Current (Ie): 32 A
• Utilization Category: AC-3 (Squirrel cage motors: starting, switching off)
• Coil Voltage: 110 V AC
• Mounting: Screw mounting
• Terminal Type: Screw terminals
• Mechanical Durability: High mechanical endurance
• Electrical Durability: High electrical endurance
• Environmental Compliance: RoHS compliant
• Standards: IEC/EN 60947-4-1, UL 60947-4-1

Applications

The LC1E3210F7 contactor is widely used in various applications, including:

• Motor control in industrial machinery
• HVAC systems
• Pump control
• Lighting control
• Power distribution systems

Additional Information

This contactor is designed for easy installation and maintenance, ensuring reliable performance in demanding environments. Its compact design and robust construction make it a versatile choice for a wide range of electrical control applications.

Disclaimer

Specifications are subject to change without notice. Please refer to the official Schneider Electric documentation for the most accurate and up-to-date information.
