LAETSD EasyPact TVS time delay on delay 1 NO 1 NC Schneider Electric cpb100444 1500x1500
Click to enlarge

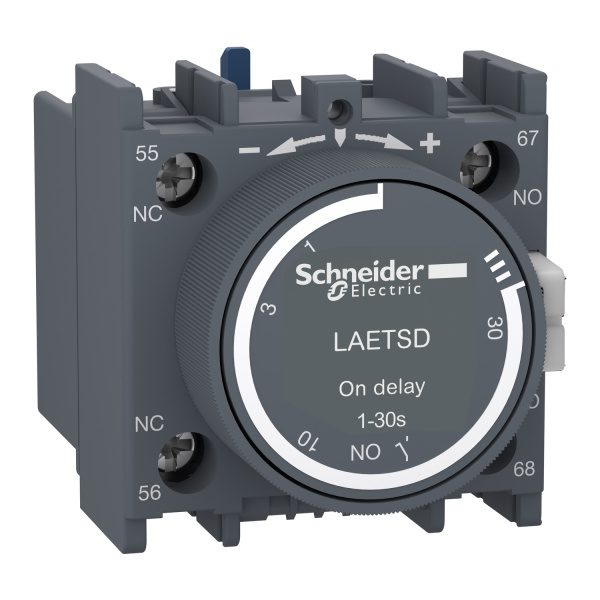

LAETSD | EasyPact TVS – time delay – on delay – 1 NO + 1 NC – Schneider Electric

SKU: LAETSD

Original price was: ₹5,940.00.Current price is: ₹5,049.00. Excl. GST

In stock

In stock

My Electric Support Online · Mon–Sat 9am–6pm IST
Product enquiry
Order on WhatsApp SKU: LAETSD

Same-day dispatch · GST invoice available

12 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-57%

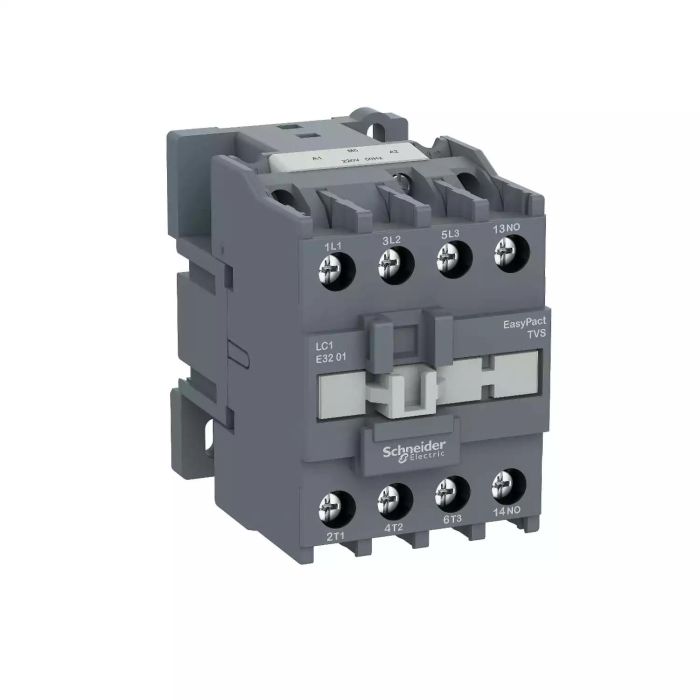

LC1E3210M5 | 3P CONTACTOR TESYS E 1NO 15KW 400V AC3 2 – Schneider Electric

Schneider Electric
Original price was: ₹9,045.00.Current price is: ₹3,889.35. Excl. GST
Add to basket
SKU: LC1E3210M5
LC1E2510M5 Easy TeSys contactor 3P 3 NO AC-3 lc1e2510m5 image 1500x1500
-57%

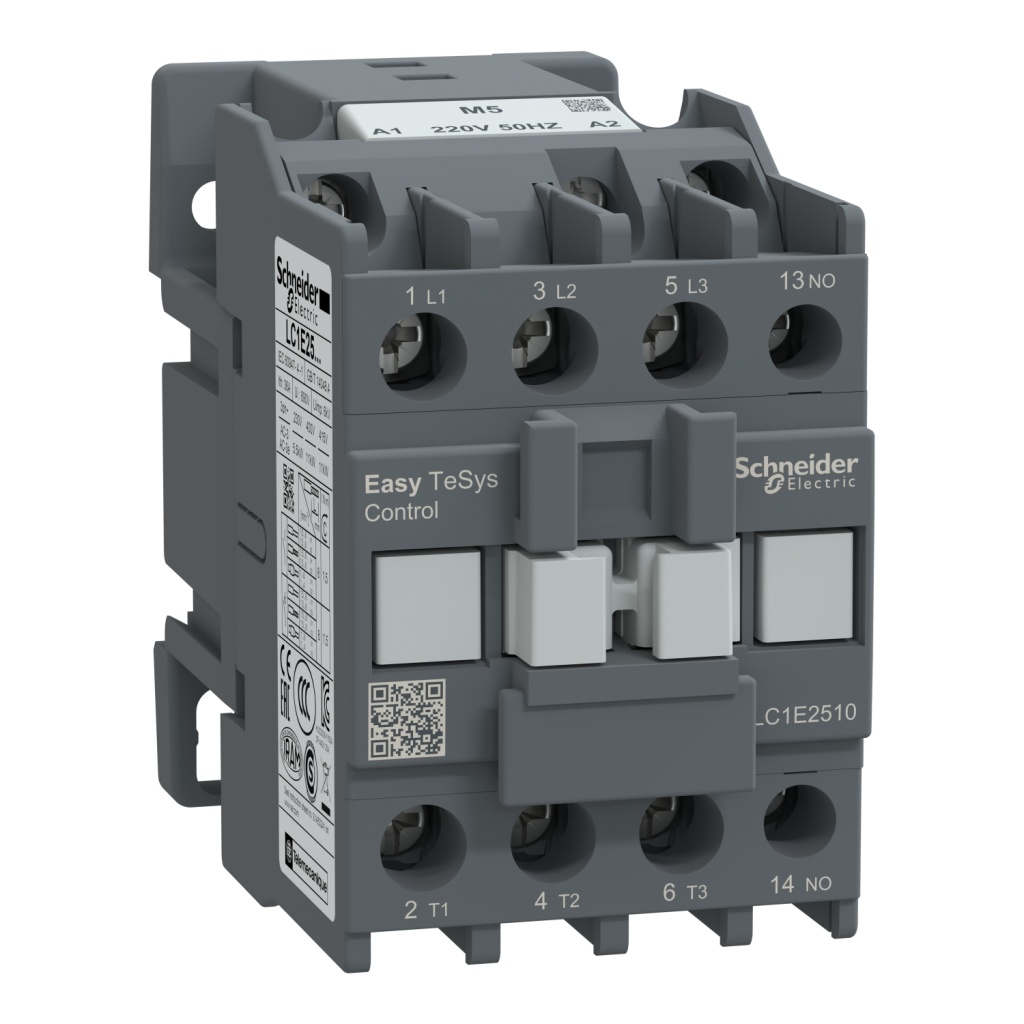

LC1E2510M5 | Easy TeSys contactor 3P(3 NO) – AC-3 – <= 440 V 25A - 220 V AC coil - Schneider Electric

Schneider Electric
Original price was: ₹4,625.00.Current price is: ₹1,988.75. Excl. GST
Add to basket
SKU: LC1E2510M5
LC1E2510M7 Easy TeSys contactor 3P 3 NO AC-3 lc1e2510m7 image 1500x1500
-60%

LC1E2510M7 | Easy TeSys contactor 3P(3 NO) – AC-3 – <= 440 V 25A - 220 V AC coil - Schneider Electric

Schneider Electric
Original price was: ₹4,315.00.Current price is: ₹1,726.00. Excl. GST
Add to basket
SKU: LC1E2510M7

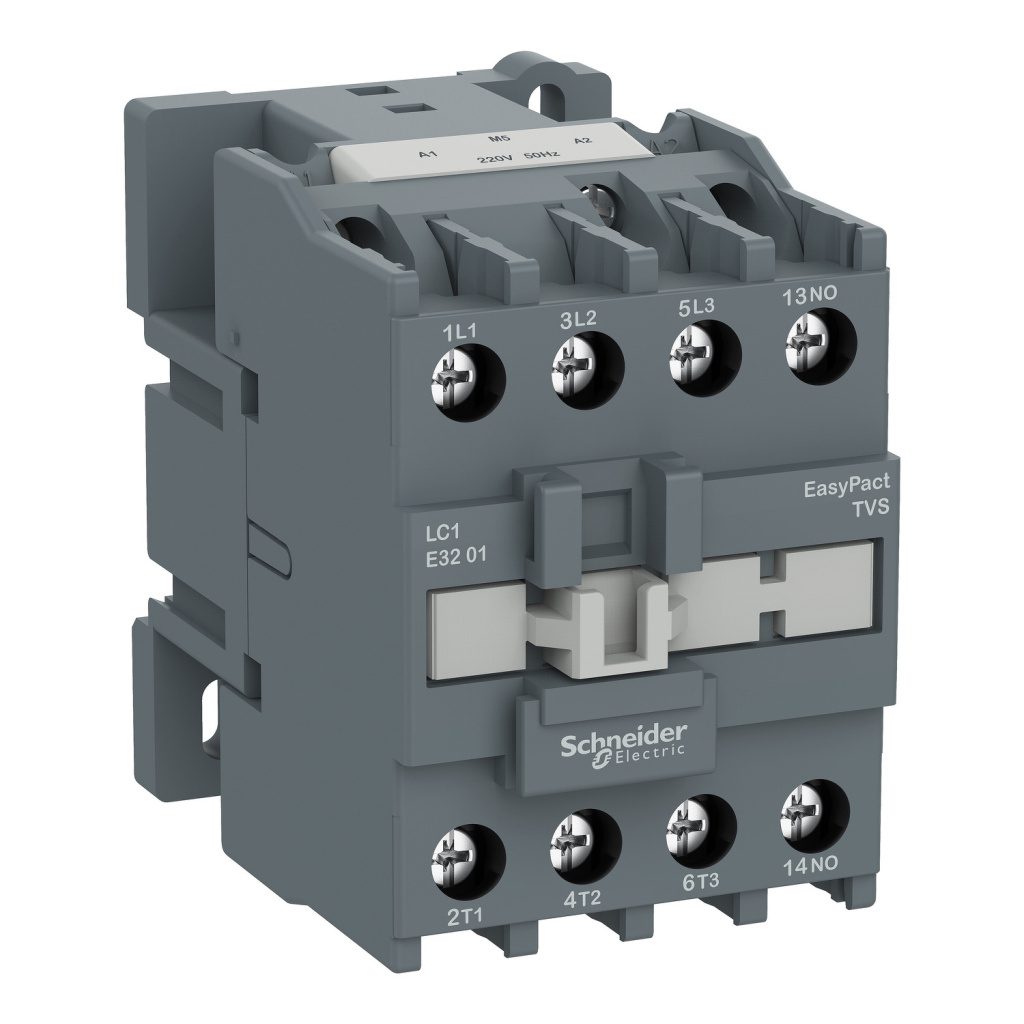

LC1E3801E5 Easy TeSys contactor 3P 3 NO AC-3 cpb100418 1500x1500
-60%

LC1E3210M7 | Easy TeSys contactor 3P(3 NO) – AC-3 – <= 440 V 32A - 220 V AC coil - Schneider Electric

Schneider Electric
Original price was: ₹9,045.00.Current price is: ₹3,618.00. Excl. GST
Add to basket
SKU: LC1E3210M7
-57%

LC1E2501M5 | 3P CONTACTOR TESYS E 1NC 11KW 400V AC3 2 – Schneider Electric

Schneider Electric
Original price was: ₹4,625.00.Current price is: ₹1,988.75. Excl. GST
Add to basket
SKU: LC1E2501M5

    The Schneider Electric LAETSD is a contactor accessory from the Easy TeSys range, engineered for motor control and switching in demanding Indian and international installations. Key ratings include <= 690 V, IP20. Buy the LAETSD | EasyPact TVS - time delay - on delay - 1 NO + 1 NC online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

    📋 Technical Specifications

    Product
    BrandSchneider Electric
    Part Number / SKULAETSD
    CategoryContactor Accessory
    Main
    RangeEasy TeSys
    Range of productEasy TeSys Control
    Product or component typeTime delay auxiliary
    Device applicationSignalling
    Device short nameLAET
    Mounting locationFront
    Auxiliary contacts operationOn-delay contact
    Complementary
    Range compatibilityEasyPact EasyPact TVS LC1E
    Pole contact composition1 NO + 1 NC
    [Ui] rated insulation voltage690 V – for control circuit conforming to IEC 60947-5-1
    [Ue] rated operational voltage<= 690 V
    [Ith] conventional free air thermal current8 A (at 60 °C)
    Irms rated making capacity140 A AC conforming to IEC 60947-5-1
    [Icw] rated short-time withstand current100 A – 1 s
    120 A – 500 ms
    140 A – 100 ms
    Protection typeGG fuse 10 A
    Mechanical durability10 Mcycles
    Minimum switching current5 mA
    minimum switching voltage17 V
    Non-overlap time1.5 ms on energisation no overlap between NC and NO contact
    1.5 ms on de-energisation no overlap between NC and NO contact
    Time delay range1…30 s
    Insulation resistance> 10 MOhm
    Connections – terminalsControl circuit: screw clamp terminals 1 1 mm² – external diameter: 6 mm – cable stiffness: solid or flexible with cable end
    Control circuit: screw clamp terminals 1 1 mm² – external diameter: 6 mm – cable stiffness: solid or flexible without cable end
    Control circuit: screw clamp terminals 2 2.5 mm² – external diameter: 6 mm – cable stiffness: solid or flexible with cable end
    Control circuit: screw clamp terminals 2 2.5 mm² – external diameter: 6 mm – cable stiffness: solid or flexible without cable end
    Product weight0.06 kg
    ColourGrey (RAL 7011)
    Environment
    StandardsEN/IEC 60947-1
    EN/IEC 60947-5-1
    GB/T 14048.1
    GB/T 14048.5
    EN/IEC 60335-1:Clause 30.2
    EN/IEC 60335-2-40:Annex JJ
    Product certificationsCB Scheme
    CCC
    CE
    EAC
    IP degree of protectionIP20 conforming to IEC 60529
    Protective treatmentTH conforming to IEC 60068
    Ambient air temperature for operation-5…55 °C
    Ambient air temperature for storage-60…80 °C
    Operating altitude3000 m without derating
    Environmental characteristicStandard environment
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height6.500 cm
    Package 1 Width5.200 cm
    Package 1 Length4.800 cm
    Package 1 Weight82.000 g
    Unit Type of Package 2S03
    Number of Units in Package 2140
    Package 2 Height30.000 cm
    Package 2 Width30.000 cm
    Package 2 Length40.000 cm
    Package 2 Weight12.097 kg
    Contractual warranty
    Warranty (in months)18

    ⚡ Key Features

    • Genuine Schneider Electric OEM accessory — manufactured to the same specification and tested to the same standards as the parent device; ensures mechanical and electrical compatibility that third-party alternatives cannot guarantee.
    • Auxiliary contact block (OF type) — 1 NO + 1 NC contacts mirror the main contact position; wired to PLC for run/trip feedback, indicator lamps, or interlocking with upstream devices.
    • 1 NO + 1 NC contact arrangement — extends the switching capacity of the parent device for PLC feedback, interlocking, or additional signalling circuits.
    • Direct clip-on or screw-mount to parent device — fits without panel modification or additional wiring between the accessory and main device; field-retrofittable.
    • Manufactured to IEC 60947 (tested as part of the parent device certification) — complies with the applicable Indian BIS and IEC international standards for this product category.
    • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
    • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
    • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
    • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

    🔗 Compatible Products & Accessories

    The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

    LC1E2510M7LC1E2510M5LC1E3210M5LC1E3210M7LC1E2501M5

    ❓ Frequently Asked Questions

    Q: What does the 1 NO + 1 NC contact configuration on the LAETSD mean?

    A: This device has both Normally Open (NO) and Normally Closed (NC) contacts. NO contacts close when the device operates (energised/tripped); NC contacts open. This allows both start-interlock and stop-interlock circuits from a single device.
