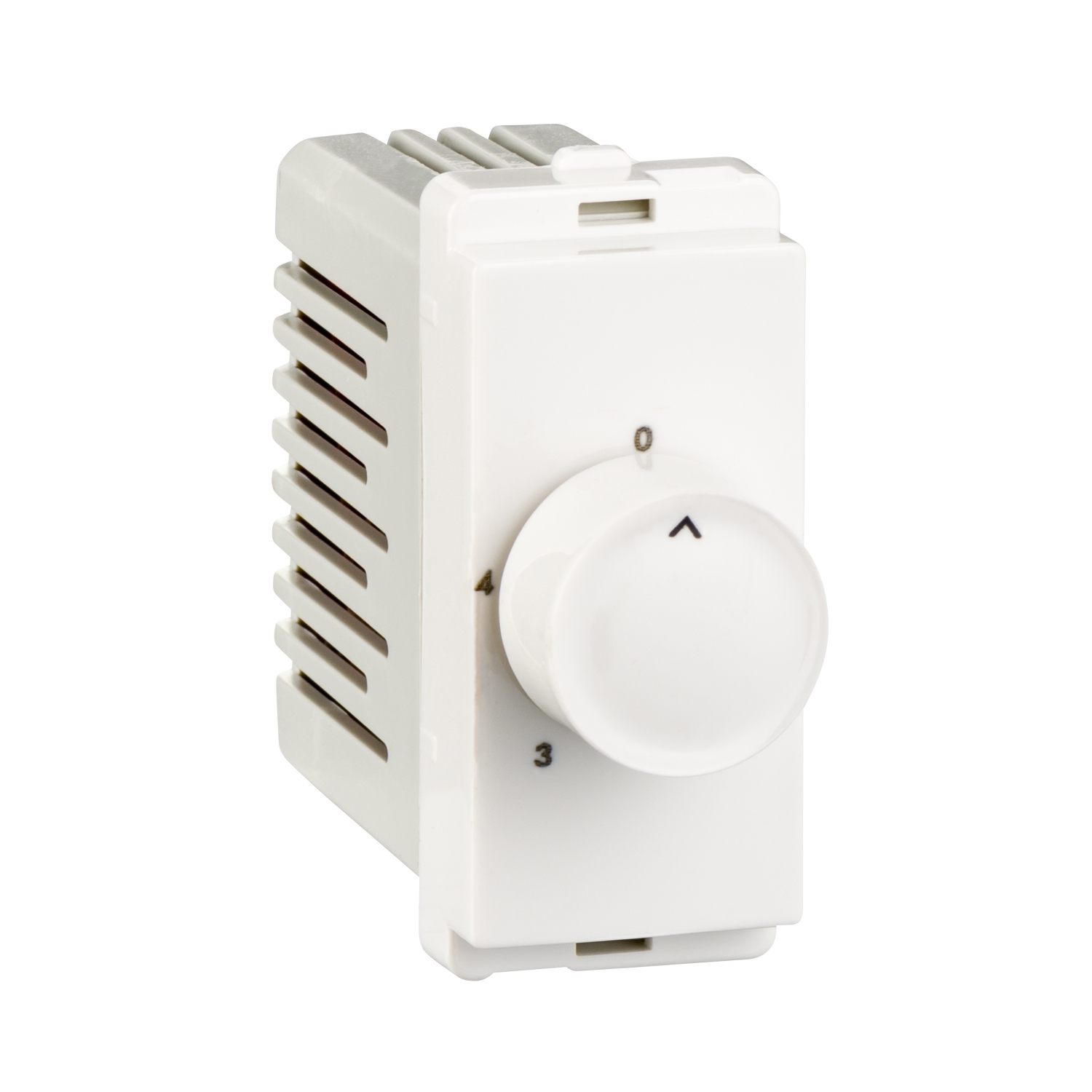

P3100 | Fan regulator, Livia, step type, 1 module, white – Schneider Electric

Name: Schneider Electric P3100 Livia Step Fan Regulator
Brand: Schneider Electric
SKU: P3100
Price: 293.88 INR
Availability: InStock

SKU: P3100

Original price was: ₹948.00.Current price is: ₹293.88. Excl. GST

In stock

11 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Looking for the P3100 | Fan regulator, Livia, step type, 1 module, white? This genuine Schneider Electric ceiling fan from the Livia range is built for efficient lighting and comfort, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 220…240 V AC, IP20. Order part number P3100 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	P3100
Category	Ceiling Fan
Main
Range	Livia
Product or component type	Fan controller
Device application	Fan speed controller
Device presentation	Mechanism with central plate
Main colour tint	White
Targeted channel	Do it yourself
Complementary
[Ue] rated operational voltage	220…240 V AC
Network frequency	50 Hz
Power range	80 W
Material	PC (polycarbonate)
Connections – terminals	Screw type terminals
Device mounting	Flush
Mounting support	Wall mounted
fixing mode	Snap-fitted
Width	22.7 mm
Height	54.4 mm
Depth	63 mm
Embedding depth	44.8 mm
Product weight	38 g
Colour tint	White (RAL 9003)
Environment
Environmental characteristic	Indoor use
IP degree of protection	IP20
IK degree of protection	IK02
Ambient air temperature for operation	-5…35 °C
Relative humidity	10…95 %
Standards	IS 11037
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	1 cm
Package 1 Width	1 cm
Package 1 Length	1 cm
Package 1 Weight	40 g
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	7.4 cm
Package 2 Width	11.6 cm
Package 2 Length	22.6 cm
Package 2 Weight	420 g
Unit Type of Package 3	CAR
Number of Units in Package 3	300
Package 3 Height	34.2 cm
Package 3 Width	36.6 cm
Package 3 Length	46.2 cm
Package 3 Weight	13.74 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: How many single-pole MCBs can be installed in the P3100 with 1 modules?

A: With 1 modules available, the P3100 can accommodate that many standard 17.5mm-pitch single-pole devices. Multi-pole MCBs occupy proportionally more space: 2P = 2 modules, 3P = 3 modules, 4P = 4 modules. Mixed configurations (e.g. one 2P RCCB + remaining SP MCBs) can be planned using the module count.
