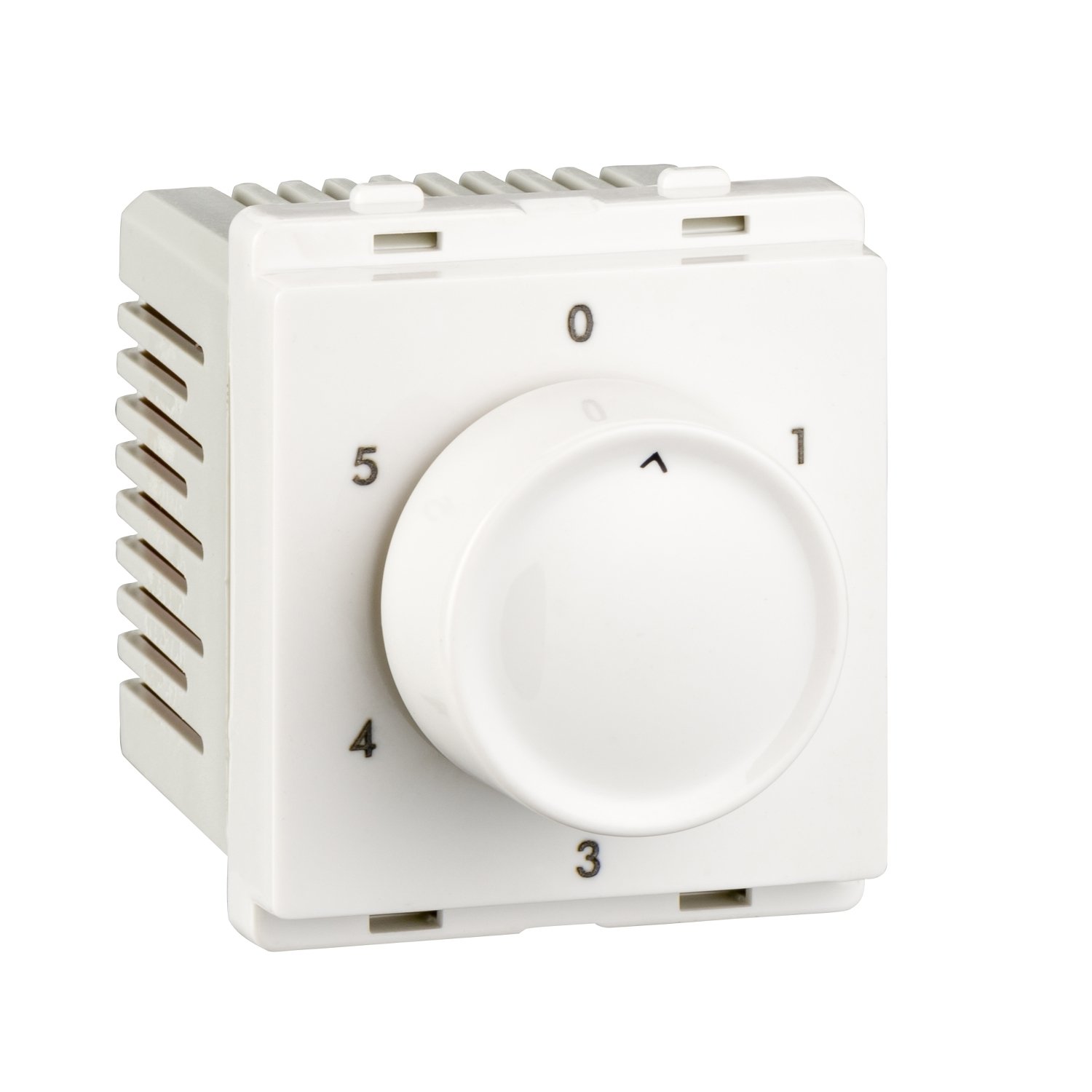

P3200 | Fan regulator, Livia, step type, 2 module, white – Schneider Electric

Name: Schneider Electric P3200 Livia 2-Module Step Fan Regulator
Brand: Schneider Electric
SKU: P3200
Price: 361.92 INR
Availability: InStock

SKU: P3200

Original price was: ₹1,131.00.Current price is: ₹361.92. Excl. GST

In stock

15 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Sourced through authorised channels, the Schneider Electric P3200 ceiling fan from the Livia range delivers dependable performance for efficient lighting and comfort. Key ratings include 220…240 V AC, IP20. myelectric.in stocks the P3200 | Fan regulator, Livia, step type, 2 module, white for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	P3200
Category	Ceiling Fan
Main
Range	Livia
Product or component type	Fan controller
Device application	Fan speed controller
Device presentation	Mechanism with central plate
Main colour tint	White
Targeted channel	Do it yourself
Complementary
[Ue] rated operational voltage	220…240 V AC
Network frequency	50 Hz
Power range	120 W
Material	PC (polycarbonate)
Connections – terminals	Screw type terminals
Device mounting	Flush
Mounting support	Wall mounted
fixing mode	Snap-fitted
Width	45.2 mm
Height	54.4 mm
Depth	64.3 mm
Embedding depth	42.6 mm
Product weight	56 g
Colour tint	White (RAL 9003)
Environment
Environmental characteristic	Indoor use
IP degree of protection	IP20
IK degree of protection	IK02
Ambient air temperature for operation	-5…35 °C
Relative humidity	10…95 %
Standards	IS 11037
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.2 cm
Package 1 Width	7.6 cm
Package 1 Length	8.2 cm
Package 1 Weight	60 g
Unit Type of Package 2	BB1
Number of Units in Package 2	6
Package 2 Height	7.4 cm
Package 2 Width	11.6 cm
Package 2 Length	22.4 cm
Package 2 Weight	400 g
Unit Type of Package 3	CAR
Number of Units in Package 3	120
Package 3 Height	33.8 cm
Package 3 Width	24.4 cm
Package 3 Length	45.8 cm
Package 3 Weight	8.84 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: How many single-pole MCBs can be installed in the P3200 with 2 modules?

A: With 2 modules available, the P3200 can accommodate that many standard 17.5mm-pitch single-pole devices. Multi-pole MCBs occupy proportionally more space: 2P = 2 modules, 3P = 3 modules, 4P = 4 modules. Mixed configurations (e.g. one 2P RCCB + remaining SP MCBs) can be planned using the module count.
