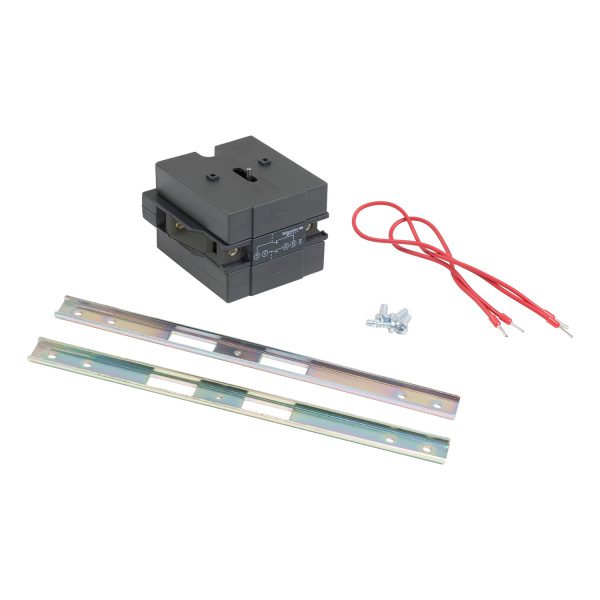

LA9D11502 – Mechanical and Electrical Interlock, TeSys D Reversing & Changeover, 2 Contactors LC1D115-D150 – Schneider Electric
Product Overview
The LA9D11502 is a mechanical and electrical interlock kit designed for use with TeSys D reversing and changeover applications. It includes two contactors, LC1D115-D150, ensuring safe and reliable operation in motor control circuits. This product is ideal for applications requiring the reversal of motor direction or changeover between two power sources.
Key Features
- Mechanical and Electrical Interlock: Ensures that both contactors cannot be energized simultaneously, preventing short circuits and enhancing safety.
- TeSys D Series: Part of the TeSys D range, known for its robust design and reliable performance in motor control applications.
- Reversing & Changeover Functionality: Suitable for applications requiring motor direction reversal or switching between two power sources.
- 2 Contactors Included: Comes with two LC1D115-D150 contactors, rated for 115A to 150A, ensuring compatibility with a wide range of motor sizes.
- Compact Design: Space-saving design for easy installation in control panels.
- High Durability: Built to withstand harsh industrial environments, ensuring long service life.
- Easy Installation: Simple and quick installation process with clear instructions provided.
- Compliance: Meets international standards for safety and performance, ensuring reliable operation.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Mechanical and Electrical Interlock Kit |
| Series | TeSys D |
| Application | Reversing & Changeover |
| Number of Contactors | 2 |
| Contactor Model | LC1D115-D150 |
| Rated Current | 115A to 150A |
| Voltage Rating | Up to 690V AC |
| Frequency | 50/60 Hz |
| Mounting Type | DIN Rail or Panel Mount |
| Dimensions | Compact design, specific dimensions available in the product manual |
| Weight | Approximately 2.5 kg (varies based on configuration) |
| Compliance | IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14 |
Applications
The LA9D11502 is suitable for a wide range of industrial applications, including:
- Motor control circuits requiring direction reversal
- Changeover between two power sources
- Industrial machinery and equipment
- Conveyor systems
- Pump control systems
- HVAC systems
Safety Information
Always follow the manufacturer’s installation and operation guidelines. Ensure that the product is installed by a qualified professional to avoid any risk of electrical hazards.
Warranty
Schneider Electric offers a standard warranty on this product. Refer to the warranty terms and conditions provided with the product or on the Schneider Electric website for more details.
Contact Information
For further information, technical support, or to place an order, please contact Schneider Electric or visit their official website.
