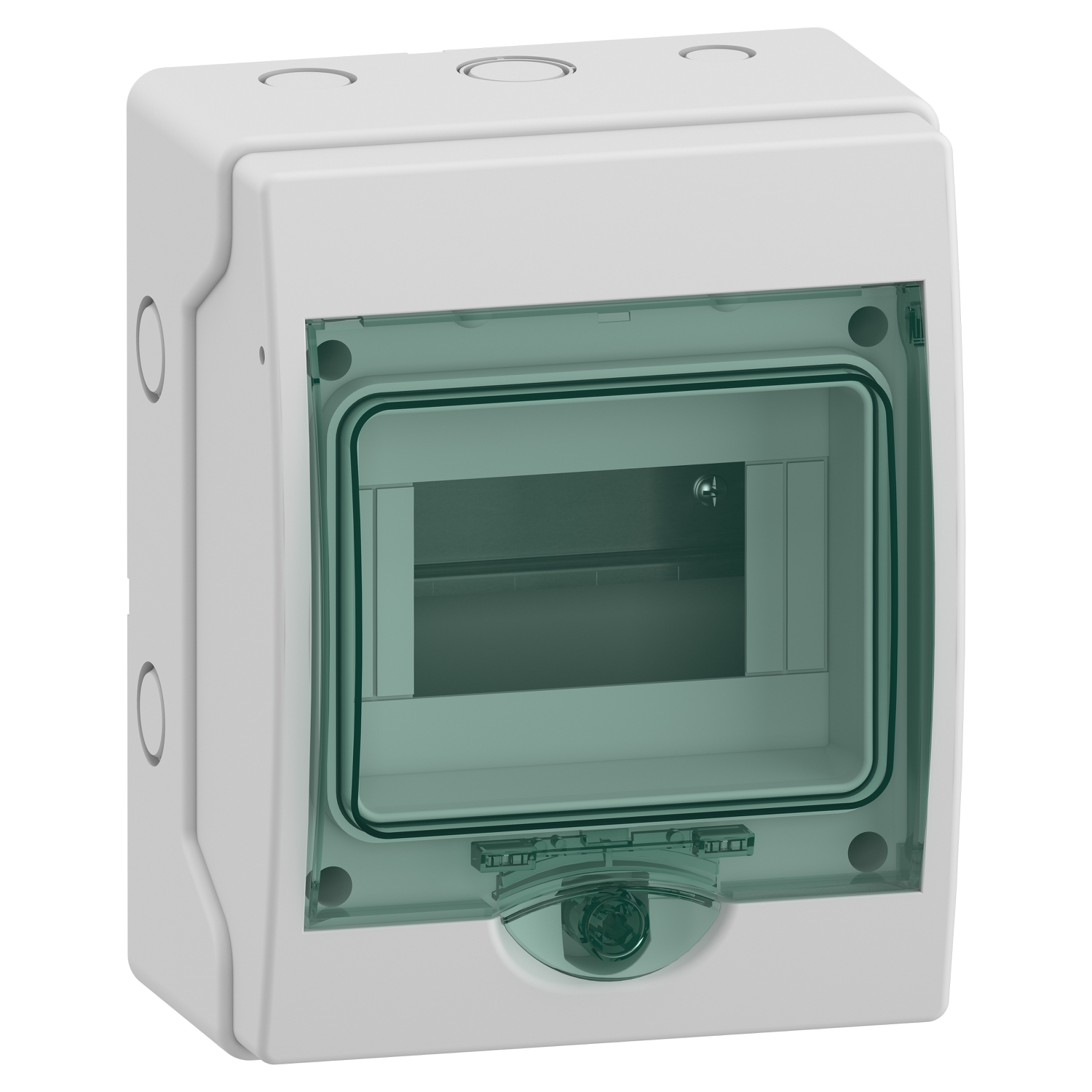

Looking for the mini Kaedra – for modular device – 1 openings – 6 modules – 2 terminal blocks? This genuine Schneider Electric modular enclosure from the Mureva range is built for safe and organised power distribution, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 63 A, IP65. Order part number 13442 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	13442
Category	Modular Enclosure
Main
Range	Mureva
Product name	Mureva Enclosure
Product or component type	Weatherproof enclosure
enclosure type	Mini enclosure for modular device
Mounting plate description	Without mounting plate
Complementary
Enclosure mounting	Surface
9 mm pitches	12
Number of 18 mm modules per row	6
Total number of 18 mm modules	6
Number of horizontal rows	1
Electrical insulation class	Double insulation Class II
Provided equipment	1 marking kit 2 terminal block 4 holes
Type of front cover	Transparent
Power dissipation in W	11 W
[In] rated current	63 A
Type of rail	DIN
Number of pre-cutouts PG ISO	3
Number of terminal blocks	2 earth / neutral (screw connection) with 4 outgoers
Distribution block outgoers	4 x 10 mm² 4 x 16 mm²
Locking options description	Optional keylock
Enclosure material	Self-extinguishing polymer
Width	159 mm
Height	200 mm
Depth	112 mm
Internal depth	56 mm
Colour	Door: transparent green Enclosure: light grey (RAL 7035)
Environment
Standards	IEC 60670-1 IEC 60670-24 EN 50262 IEC 60695-2-1
Fire resistance	650 °C conforming to IEC 60695-2-1
IP degree of protection	IP65 conforming to IEC 60529
IK degree of protection	IK09 conforming to EN 50102
Environmental characteristics (UV)	UV resistant: class 3 conforming to ISO 4582:2010 Ultraviolet degradation test conforming to ISO 4892-2:2013
Overvoltage category	II
Ambient air temperature for operation	-25…60 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	11.000 cm
Package 1 Width	16.000 cm
Package 1 Length	20.000 cm
Package 1 Weight	599.000 g
Unit Type of Package 2	BB1
Number of Units in Package 2	7
Package 2 Height	22.000 cm
Package 2 Width	34.000 cm
Package 2 Length	40.500 cm
Package 2 Weight	4.569 kg
Unit Type of Package 3	P12
Number of Units in Package 3	168
Package 3 Height	80.000 cm
Package 3 Width	80.000 cm
Package 3 Length	120.000 cm
Package 3 Weight	120.360 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

6 modules — accommodates this number of standard 17.5mm DIN rail modules (MCBs, RCCBs, RCBOs) plus busbars and neutral terminal blocks.
35mm DIN rail and neutral busbar pre-fitted — ready to accept MCBs, RCCBs, RCBOs, and surge protection devices directly from the box with no additional mounting hardware.
Knock-out cable entry points on top, bottom, and sides — accommodate PVC conduit, steel conduit, trunking, or direct cable entry without drilling the enclosure body.
Flame-retardant thermoplastic construction (UL 94 V-0) — self-extinguishes within 10 seconds; does not propagate flame in the event of internal fault or external fire exposure.
Tamper-resistant door design with IP40 rated front face
Manufactured to IEC 61439-3 / IS 8623 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

1394713940

❓ Frequently Asked Questions

Q: How many single-pole MCBs can be installed in the 13442 with 6 modules?

A: With 6 modules available, the 13442 can accommodate that many standard 17.5mm-pitch single-pole devices. Multi-pole MCBs occupy proportionally more space: 2P = 2 modules, 3P = 3 modules, 4P = 4 modules. Mixed configurations (e.g. one 2P RCCB + remaining SP MCBs) can be planned using the module count.
