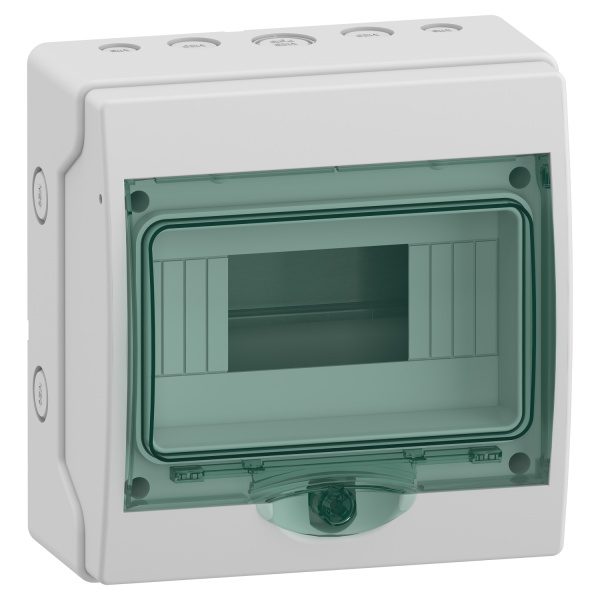

13443 | mini Kaedra – for modular device – 1 openings – 8 modules – 4 terminal blocks – Schneider Electric

Name: Schneider Electric Mini Kaedra 8 Modules 1 Opening | myelectric.in
Brand: Schneider Electric
SKU: 13443
Price: 3646.76 INR
Availability: OutOfStock

SKU: 13443

Original price was: ₹7,013.00.Current price is: ₹3,646.76. Excl. GST

Out of stock

20 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-46%

13947 | KIT DE PLOMBAGE – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: 13947

Sourced through authorised channels, the Schneider Electric 13443 modular enclosure from the Mureva range delivers dependable performance for safe and organised power distribution. Key ratings include 63 A, IP65. myelectric.in stocks the mini Kaedra – for modular device – 1 openings – 8 modules – 4 terminal blocks for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	13443
Category	Modular Enclosure
Main
Range	Mureva
Product name	Mureva Enclosure
Product or component type	Weatherproof enclosure
enclosure type	Mini enclosure for modular device
Mounting plate description	Without mounting plate
Complementary
Enclosure mounting	Surface
9 mm pitches	16
Number of 18 mm modules per row	8
Total number of 18 mm modules	8
Number of horizontal rows	1
Electrical insulation class	Class II Double insulation
Provided equipment	1 marking kit 4 terminal block 4 holes
Type of front cover	Transparent
Power dissipation in W	15 W
[In] rated current	63 A
Type of rail	DIN
Number of pre-cutouts PG ISO	5
Number of terminal blocks	4 earth / neutral (screw connection) with 4 outgoers
Distribution block outgoers	8 x 10 mm² 8 x 16 mm²
Locking options description	Optional keylock
Enclosure material	Self-extinguishing polymer
Width	195 mm
Height	200 mm
Depth	112 mm
Internal depth	56 mm
Colour	Door: transparent green Enclosure: light grey (RAL 7035)
Environment
Standards	IEC 60670-1 IEC 60670-24 EN 50262 IEC 60695-2-1
Fire resistance	650 °C conforming to IEC 60695-2-1
IP degree of protection	IP65 conforming to IEC 60529
IK degree of protection	IK09 conforming to EN 50102
Environmental characteristics (UV)	UV resistant: class 3 conforming to ISO 4582:2010 Ultraviolet degradation test conforming to ISO 4892-2:2013
Overvoltage category	II
Ambient air temperature for operation	-25…60 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	6.000 cm
Package 1 Width	24.500 cm
Package 1 Length	26.000 cm
Package 1 Weight	750.000 g
Unit Type of Package 2	CAR
Number of Units in Package 2	6
Package 2 Height	22.000 cm
Package 2 Width	34.500 cm
Package 2 Length	40.000 cm
Package 2 Weight	4.880 kg
Unit Type of Package 3	P12
Number of Units in Package 3	144
Package 3 Height	80.000 cm
Package 3 Width	80.000 cm
Package 3 Length	120.000 cm
Package 3 Weight	122.000 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

8 modules — accommodates this number of standard 17.5mm DIN rail modules (MCBs, RCCBs, RCBOs) plus busbars and neutral terminal blocks.
35mm DIN rail and neutral busbar pre-fitted — ready to accept MCBs, RCCBs, RCBOs, and surge protection devices directly from the box with no additional mounting hardware.
Knock-out cable entry points on top, bottom, and sides — accommodate PVC conduit, steel conduit, trunking, or direct cable entry without drilling the enclosure body.
Flame-retardant thermoplastic construction (UL 94 V-0) — self-extinguishes within 10 seconds; does not propagate flame in the event of internal fault or external fire exposure.
Cable management channels integrated in base
Manufactured to IEC 61439-3 / IS 8623 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

1394713940

❓ Frequently Asked Questions

Q: How many single-pole MCBs can be installed in the 13443 with 8 modules?

A: With 8 modules available, the 13443 can accommodate that many standard 17.5mm-pitch single-pole devices. Multi-pole MCBs occupy proportionally more space: 2P = 2 modules, 3P = 3 modules, 4P = 4 modules. Mixed configurations (e.g. one 2P RCCB + remaining SP MCBs) can be planned using the module count.
