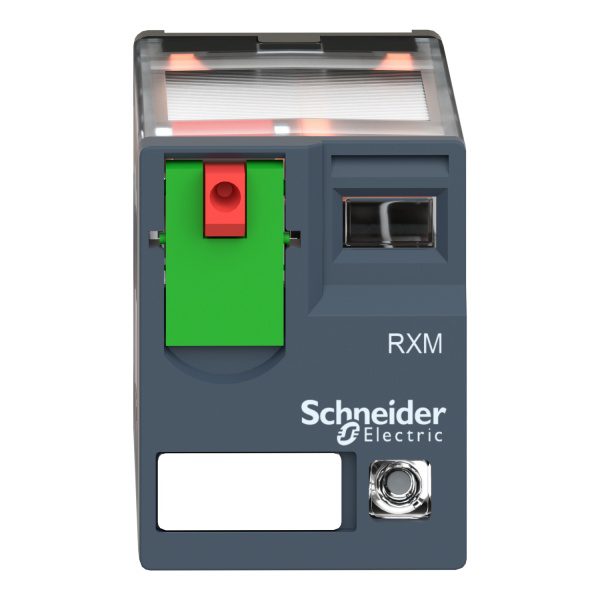

Miniature Plug-in Relay – RXM4AB2B7
Product Overview
The RXM4AB2B7 is a high-quality miniature plug-in relay manufactured by Schneider Electric. Designed for reliable performance in various applications, this relay is ideal for control circuits, automation systems, and industrial machinery.
Key Features
- Current Rating: 6 A
- Contact Configuration: 4 CO (4 Changeover Contacts)
- Coil Voltage: 24 V AC
- LED Indicator: Built-in LED for visual status indication
- Compact Design: Miniature size for space-saving installation
- Plug-in Type: Easy installation and replacement
- High Reliability: Durable construction for long service life
- Wide Applications: Suitable for control panels, HVAC systems, and more
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Current | 6 A |
| Contact Configuration | 4 CO |
| Coil Voltage | 24 V AC |
| Power Consumption | 1.2 W |
| Mechanical Life | 10,000,000 operations |
| Electrical Life | 100,000 operations |
| Operating Temperature | -40°C to +70°C |
| Dimensions | 29 mm x 12.5 mm x 36 mm |
| Weight | Approx. 50 g |
Applications
The RXM4AB2B7 relay is widely used in:
- Industrial control systems
- Building automation
- HVAC systems
- Lighting control
- Power distribution
Benefits
- Enhanced safety with LED status indication
- Easy installation and maintenance
- Compact design saves space in control panels
- Reliable performance in harsh environments
Ordering Information
Product Code: RXM4AB2B7
Manufacturer: Schneider Electric
Compliance and Standards
This product complies with international standards, including:
- IEC 60947-4-1
- UL 508
- CSA C22.2 No. 14
Warranty
Schneider Electric offers a standard warranty of 2 years for this product, subject to terms and conditions.
