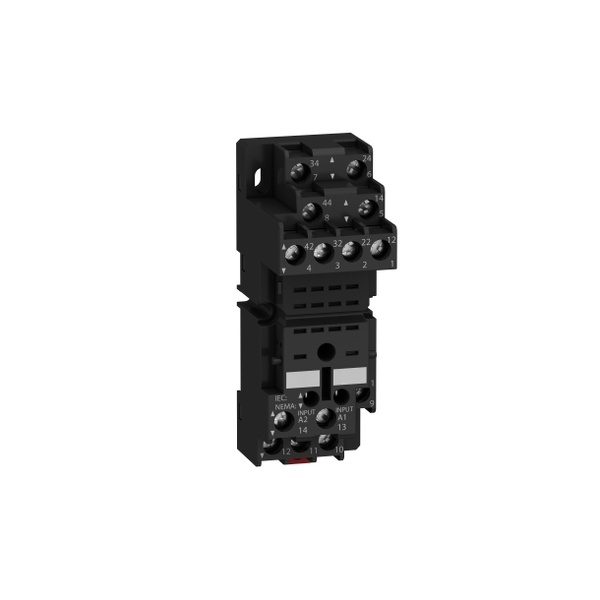

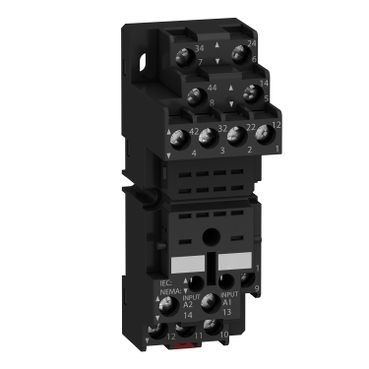

    RXZE2M114 | Socket, mixed contact, relay type RXM2 RXM4, screw clamp terminals, 250 V AC – Schneider Electric

    SKU: RXZE2M114

    Original price was: ₹470.00.Current price is: ₹258.50. Excl. GST

    In stock

    In stock

    10 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Additional Addons/Accessories

    RXM2AB2P7 Miniature plug-in relay, 12 A, 2 CO, LED, 230 V AC Schneider Electric rxm2ab2x7 right 1500x1500
    -45%

    RXM2AB2P7 | Miniature plug-in relay, 12 A, 2 CO, LED, 230 V AC – Schneider Electric

    Schneider Electric
    Original price was: ₹936.00.Current price is: ₹514.80. Excl. GST
    Add to basket
    SKU: RXM2AB2P7
    -54%

    RXM4AB1P7 | MINIATURE RELAY 4C/O 230VAC – Schneider Electric

    Schneider Electric
    Original price was: ₹1,142.00.Current price is: ₹525.32. Excl. GST
    Add to basket
    SKU: RXM4AB1P7
    -49%

    RXZR335 | Maintaining clamp RXM sockets plastic – Schneider Electric

    Schneider Electric
    Original price was: ₹74.00.Current price is: ₹37.74. Excl. GST
    Add to basket
    SKU: RXZR335
    -54%

    RXM040W | DIODE 6-250VDC FOR RXZE SOCKET – Schneider Electric

    Schneider Electric
    Original price was: ₹219.00.Current price is: ₹100.74. Excl. GST
    Add to basket
    SKU: RXM040W
    -54%

    RXM041BN7 | Protect RC circuit RPZ RXZ sockets 24V – Schneider Electric

    Schneider Electric
    Original price was: ₹236.00.Current price is: ₹108.56. Excl. GST
    Add to basket
    SKU: RXM041BN7
    -54%

    RXM2AB1E7 | Miniature Plug-In Relay, 12 A, 2 Co, 48 V Ac – Schneider Electric

    Schneider Electric
    Original price was: ₹936.00.Current price is: ₹430.56. Excl. GST
    Add to basket
    SKU: RXM2AB1E7
    -54%

    RXM4AB1E7 | Miniature Plug-In Relay, 6 A, 4 Co, 48 V Ac – Schneider Electric

    Schneider Electric
    Original price was: ₹1,174.00.Current price is: ₹540.04. Excl. GST
    Add to basket
    SKU: RXM4AB1E7
    -54%

    RXM4AB1BD | MINIATURE RELAY 4C/O 24VDC – Schneider Electric

    Schneider Electric
    Original price was: ₹1,120.00.Current price is: ₹515.20. Excl. GST
    Add to basket
    SKU: RXM4AB1BD
    -54%

    RXM2AB1BD | MINIATURE RELAY 2C/O 24VDC – Schneider Electric

    Schneider Electric
    Original price was: ₹900.00.Current price is: ₹414.00. Excl. GST
    Add to basket
    SKU: RXM2AB1BD
    RXZ400 metal maintaining clamp for miniature relay socket RXZ Schneider Electric rxz
    -45%

    RXZ400 | metal maintaining clamp – for miniature relay socket RXZ – Schneider Electric

    Schneider Electric
    Original price was: ₹77.00.Current price is: ₹42.35. Excl. GST
    Add to basket
    SKU: RXZ400

      Sourced through authorised channels, the Schneider Electric RXZE2M114 relay socket from the Harmony Electromechanical Relays range delivers dependable performance for motor control and switching. Key ratings include < 250 V, IP20. myelectric.in stocks the RXZE2M114 | Socket, mixed contact, relay type RXM2 RXM4, screw clamp terminals, 250 V AC for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

      📋 Technical Specifications

      Product
      BrandSchneider Electric
      Part Number / SKURXZE2M114
      CategoryRelay Socket
      Main
      Range of productHarmony Electromechanical Relays
      Harmony Timer Relays
      Product compatibilityPlug-in relay RXM with 2 C/O contact
      Plug-in relay RXM with 4 C/O contact
      Plug-in relay REXL with 2 C/O contact
      Plug-in relay REXL with 4 C/O contact
      Plug-in relay 782H with 4 C/O contact
      Device short nameRXZ
      [Ith] conventional free air thermal current10 A
      Product or component typeSocket
      Contacts type and composition4 C/O
      Complementary
      [Ue] rated operational voltage< 250 V conforming to IEC
      < 300 V conforming to UL
      Connections – terminalsScrew clamp terminals, 1 x 0.34…1 x 1 mm² (AWG 22…AWG 17) flexible with cable end
      Screw clamp terminals, 2 x 0.34…2 x 1 mm² (AWG 22…AWG 17) flexible with cable end
      Screw clamp terminals, 1 x 0.5…1 x 1.5 mm² (AWG 20…AWG 16) solid without cable end
      Screw clamp terminals, 2 x 0.5…2 x 1.5 mm² (AWG 20…AWG 16) solid without cable end
      Shape of pinFlat
      Tightening torque< 1 N.m for M3 screw(s)
      Fixing modeBy screw (panel)
      Clip-on (35 mm symmetrical DIN rail)
      Wire stripping length8 mm
      Contact terminal arrangementMixed
      [Uimp] rated impulse withstand voltage4 kV
      Overvoltage categoryIII
      Pollution degree3
      Sale per indivisible quantity10
      Width30 mm
      Product weight0.051 kg
      Environment
      IP degree of protectionIP20 conforming to IEC 60529
      Dielectric strength2500 V
      StandardsIEC 61984
      Product certificationsUL
      CSA
      Lloyd’s
      MarkingCE
      Ambient air temperature for storage-40…85 °C
      Ambient air temperature for operation-40…55 °C
      Packing Units
      Unit Type of Package 1PCE
      Number of Units in Package 11
      Package 1 Height2.600 cm
      Package 1 Width3.100 cm
      Package 1 Length7.000 cm
      Package 1 Weight56.000 g
      Unit Type of Package 2BB1
      Number of Units in Package 210
      Package 2 Height7.600 cm
      Package 2 Width8.900 cm
      Package 2 Length15.500 cm
      Package 2 Weight600.000 g
      Unit Type of Package 3S03
      Number of Units in Package 3200
      Package 3 Height30.000 cm
      Package 3 Width30.000 cm
      Package 3 Length40.000 cm
      Package 3 Weight12.449 kg
      Contractual warranty
      Warranty (in months)18

      ⚡ Key Features

      • Manufactured to IEC 60947-5-1 — complies with the applicable Indian BIS and IEC international standards for this product category.
      • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
      • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
      • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
      • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

      🔗 Compatible Products & Accessories

      The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

      RXM2AB1BDRXM2AB1E7RXM2AB2P7RXM4AB1BDRXM4AB1E7RXM4AB1P7RXM040WRXM041BN7RXZR335RXZ400

      ❓ Frequently Asked Questions

      Q: Can the RXZE2M114 relay be mounted on a DIN rail socket for easy replacement?

      A: Yes. The RXZE2M114 is a plug-in relay designed for use with a matching relay socket (check RXZ or equivalent series), enabling tool-free relay replacement without disturbing control wiring. Label the socket wiring clearly to enable fast field replacement.

      Q: How do I test the RXZE2M114 relay in the field without a signal source?

      A: Most Schneider Electric relays can be manually forced using the test button (if fitted) — this mechanically closes the relay contacts without energising the coil, allowing functional testing of the controlled circuit. For coil testing, use a multimeter to measure coil resistance (typically 500–2000Ω for AC coils at rated voltage) and compare with datasheet values.
