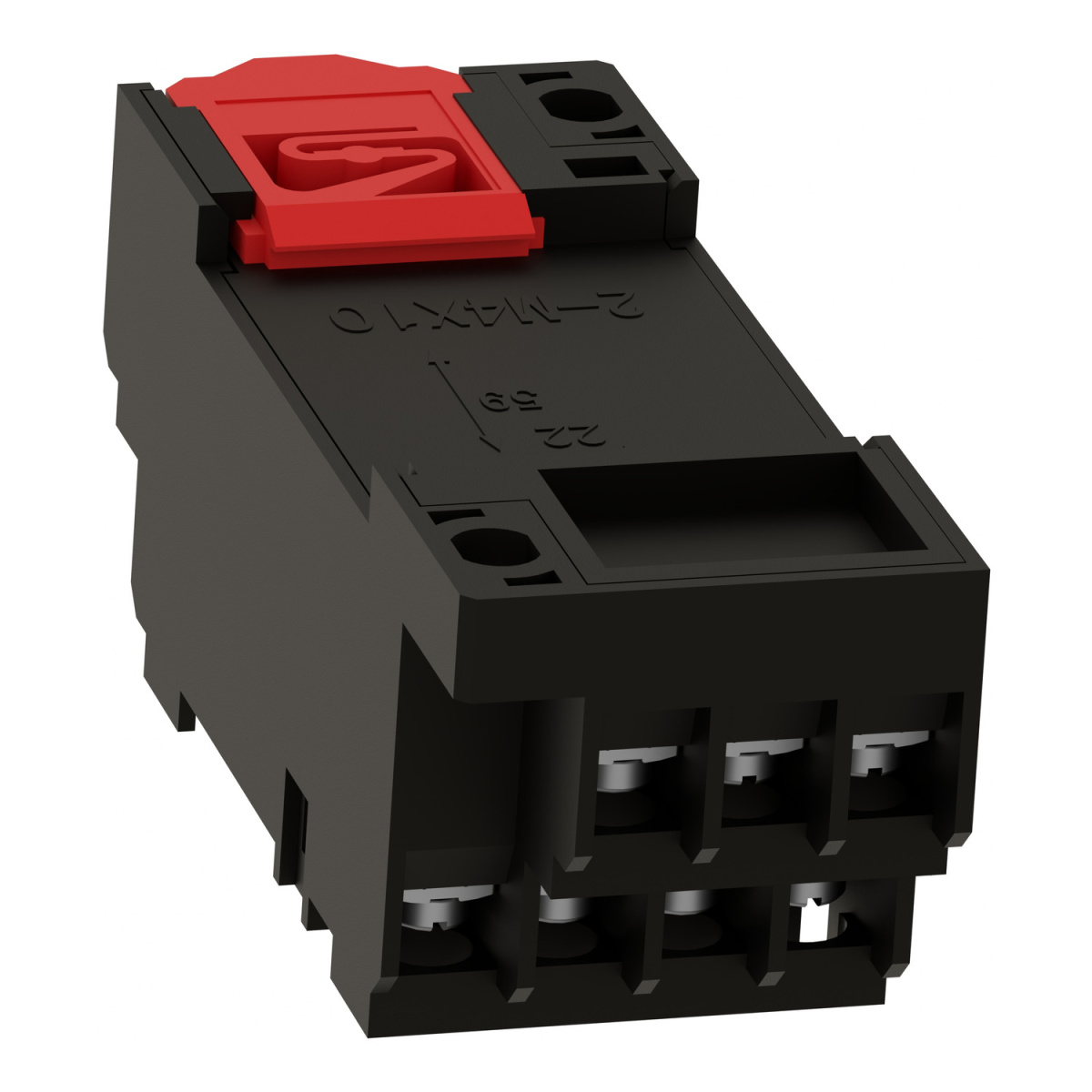

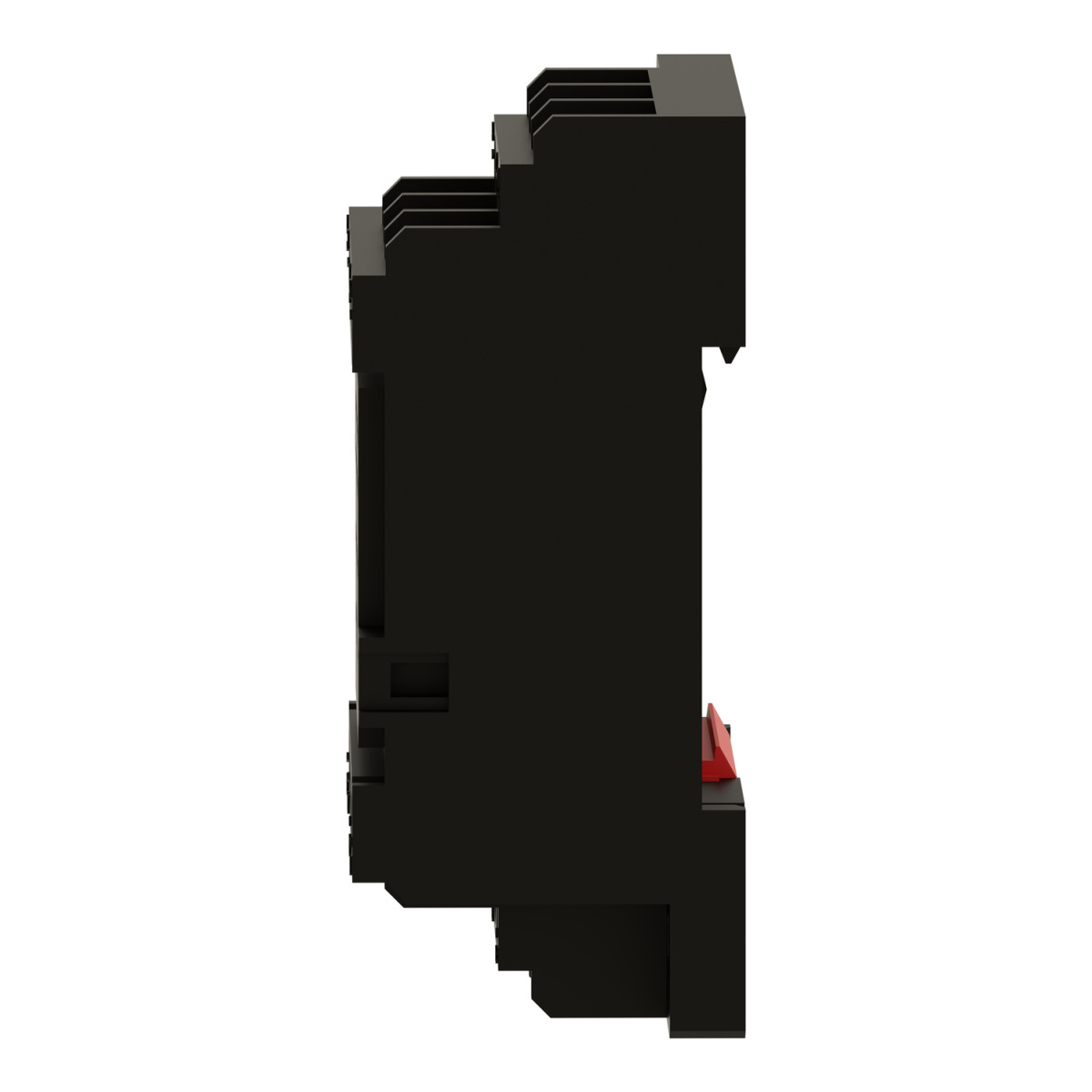

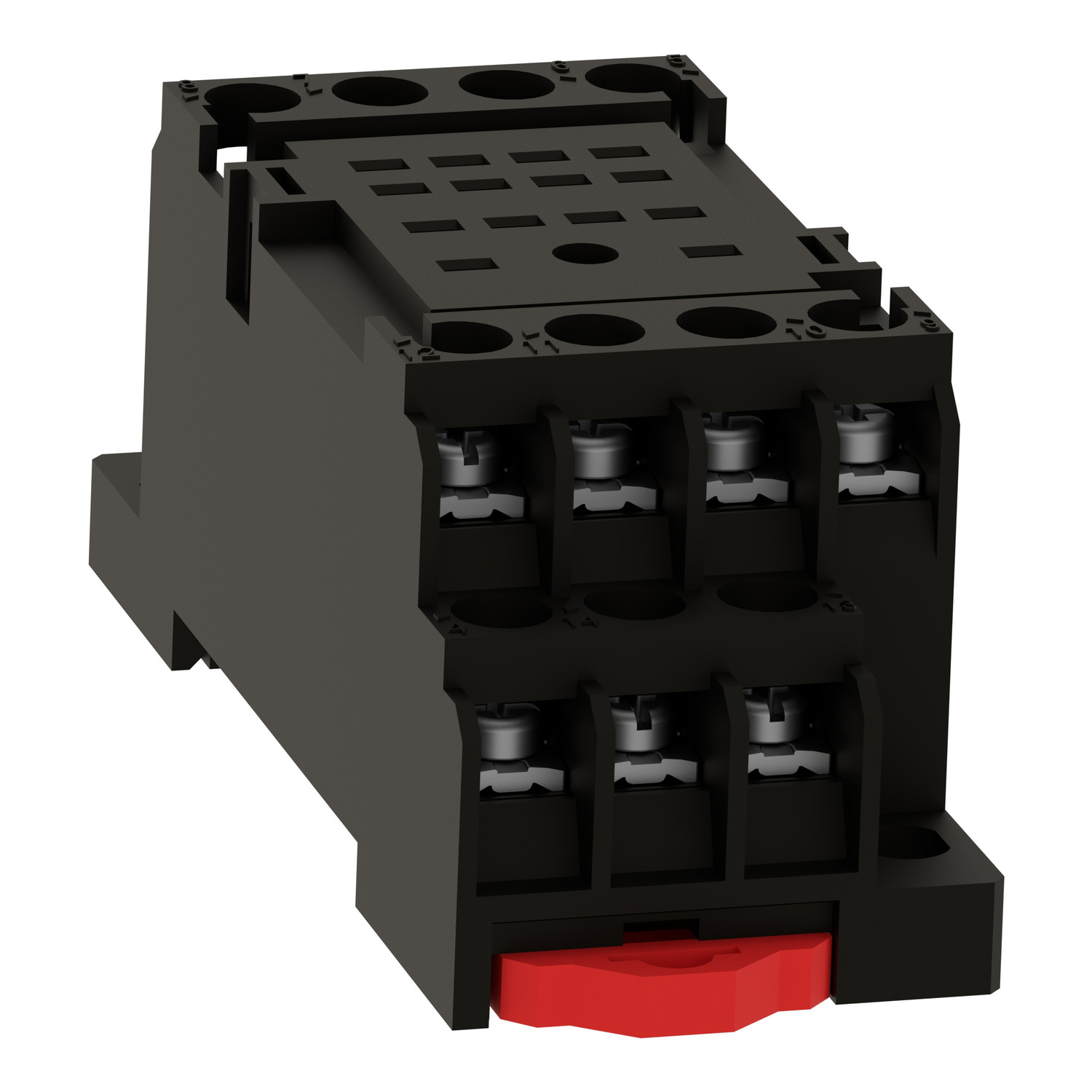

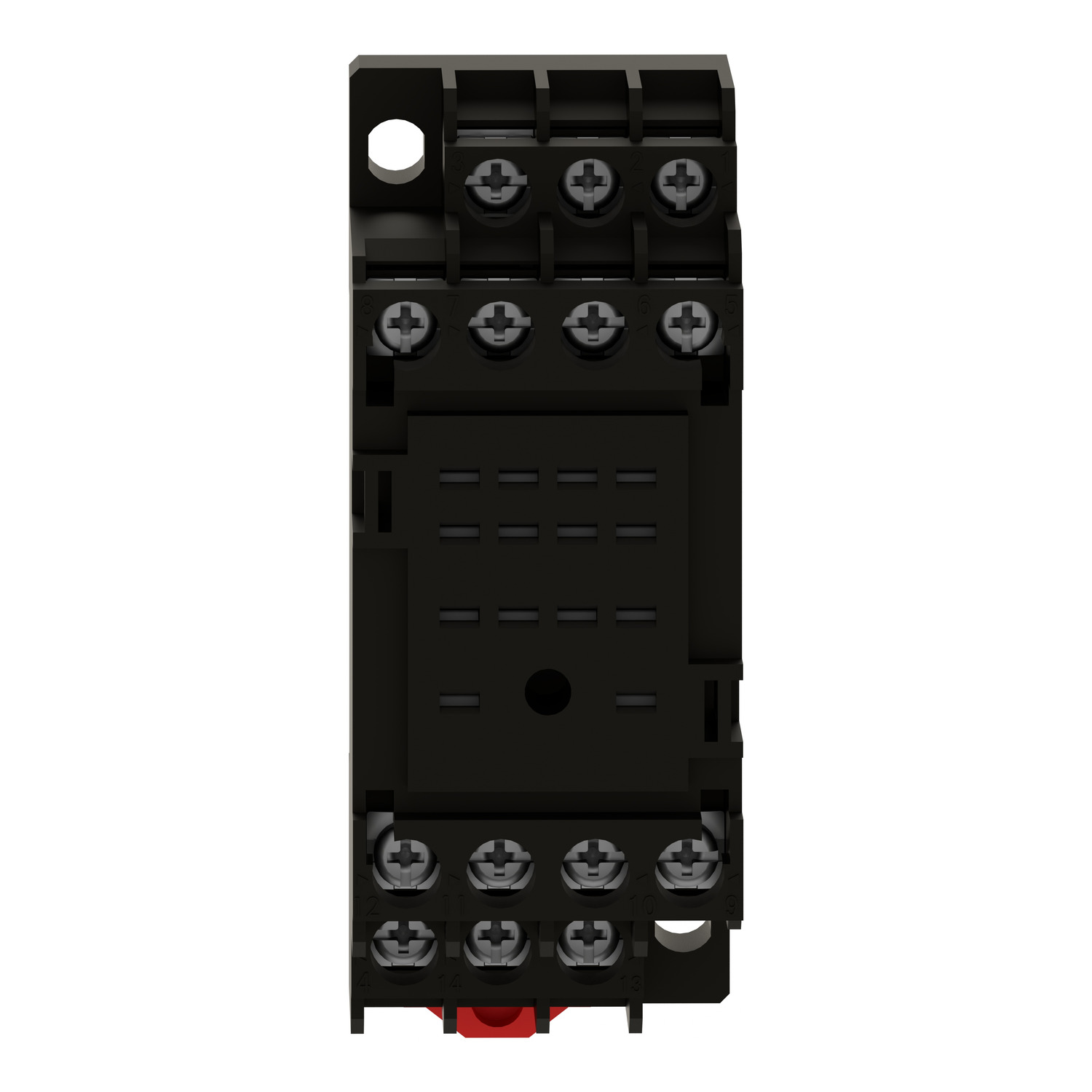

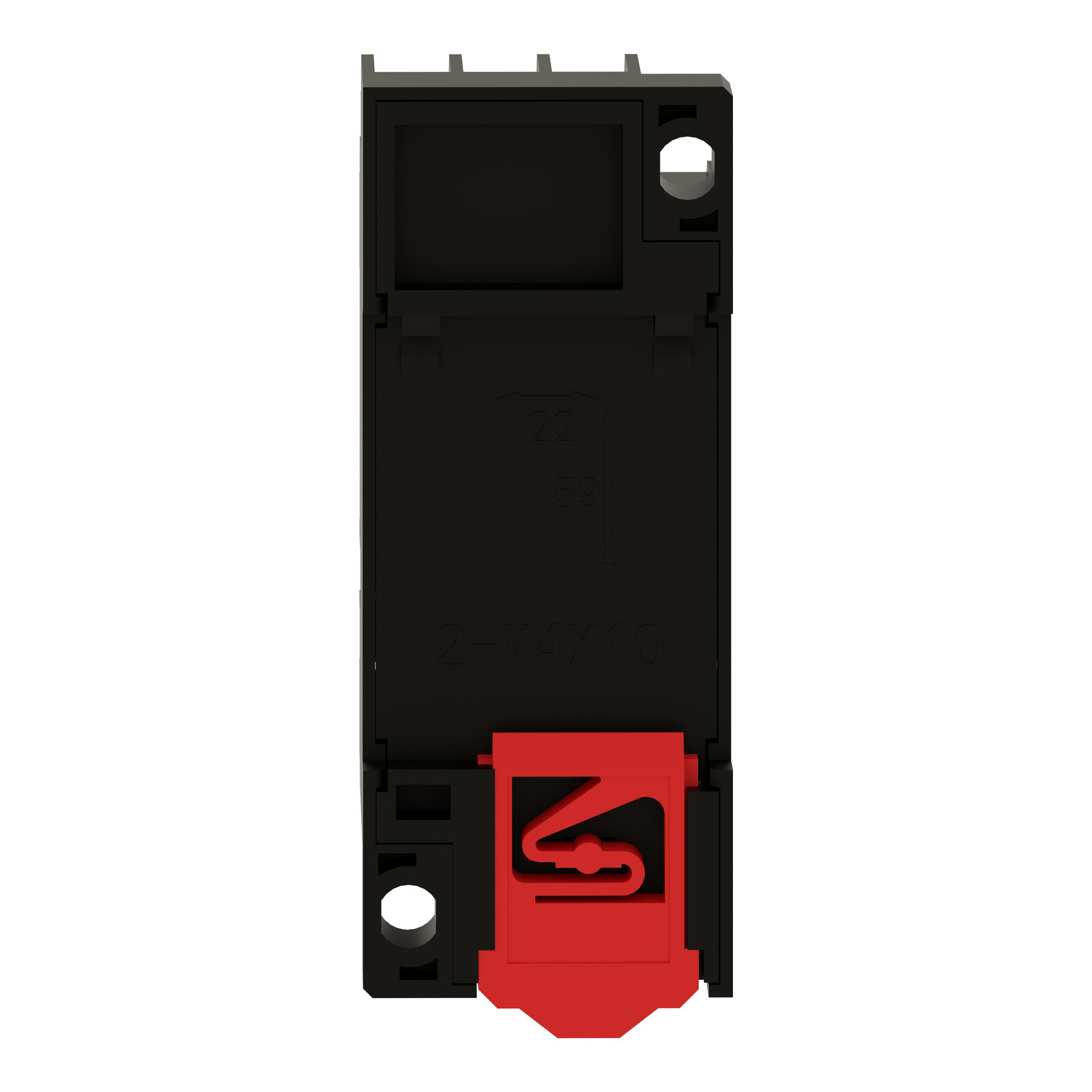

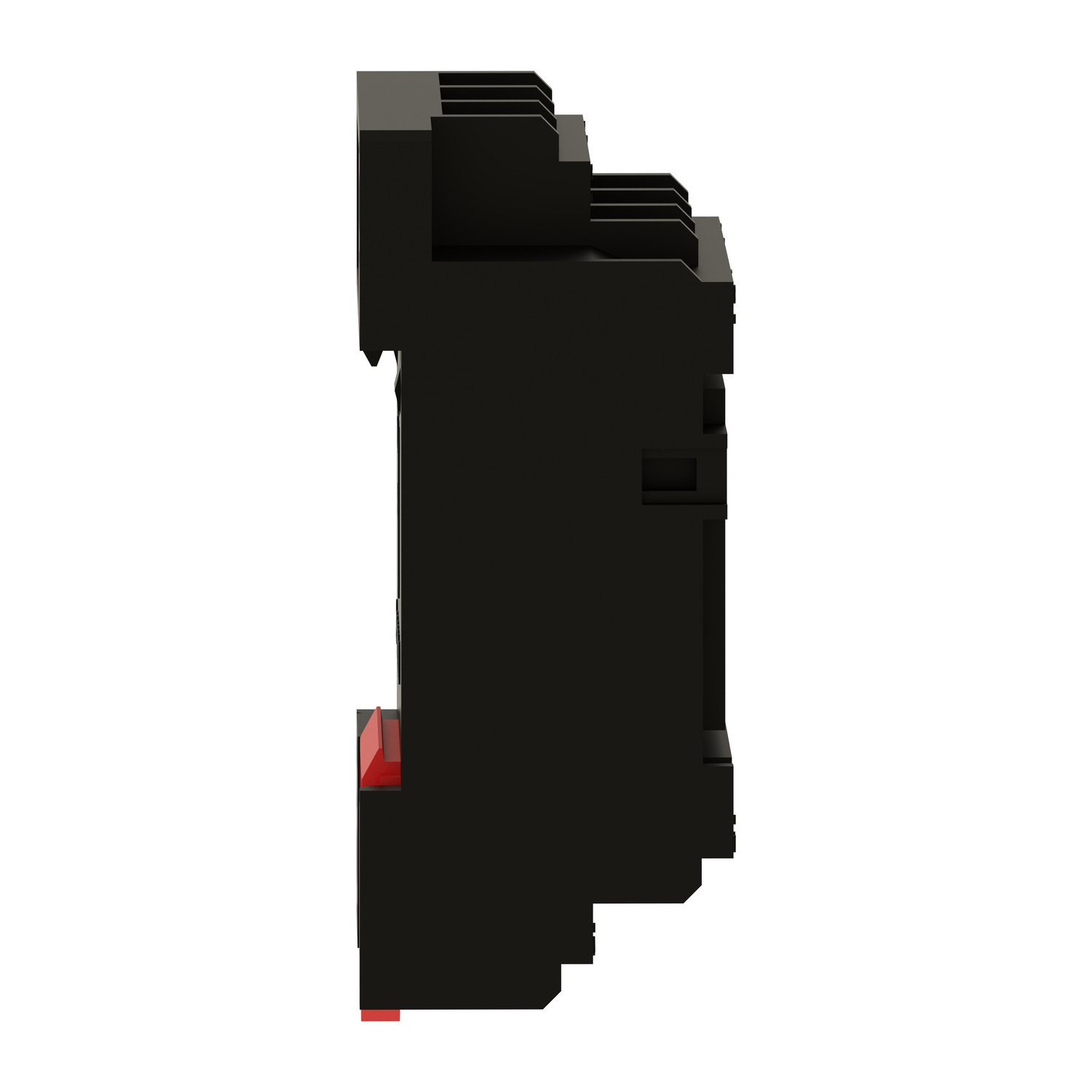

RXZE1M4C | socket RXZ -mixed contact – 7 A – 250 V – screw clamp – for relay RXM2.., RXM4.. – Schneider Electric

Name: Schneider Electric RXZE1M4C Socket for RXM Relays
Brand: Schneider Electric
SKU: RXZE1M4C
Price: 210.10 INR
Availability: InStock

SKU: RXZE1M4C

Original price was: ₹382.00.Current price is: ₹210.10. Excl. GST

In stock

17 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Looking for the RXZE1M4C | socket RXZ -mixed contact – 7 A – 250 V – screw clamp – for relay RXM2.., RXM4..? This genuine Schneider Electric relay socket from the Harmony Electromechanical Relays range is built for motor control and switching, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 7 A, 250 V AC. Order part number RXZE1M4C from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	RXZE1M4C
Category	Relay Socket
Main
Range of product	Harmony Electromechanical Relays
Product compatibility	Plug-in relay RXM with 2 C/O contact Plug-in relay RXM with 4 C/O contact
Device short name	RXZ
[Ith] conventional free air thermal current	7 A 20 A + 0.5 ms per user registered
Product or component type	Socket
Contacts type and composition	4 C/O
Complementary
[Ue] rated operational voltage	250 V AC conforming to IEC
Connections – terminals	Screw clamp terminals, 1 x 0.2…1 x 1.0 mm² (AWG 24…AWG 17) flexible with cable end Screw clamp terminals, 2 x 0.2…2 x 1.0 mm² (AWG 24…AWG 17) flexible with cable end Screw clamp terminals, 1 x 0.5…1 x 1.5 mm² (AWG 20…AWG 16) solid without cable end Screw clamp terminals, 2 x 0.5…2 x 1.5 mm² (AWG 20…AWG 16) solid without cable end
Tightening torque	< 0.8 N.m for M3 screw(s)
Fixing mode	By screw (panel) Clip-on (35 mm symmetrical DIN rail)
Contact terminal arrangement	Mixed
[Uimp] rated impulse withstand voltage	4 kV
Overvoltage category	III
Pollution degree	3
Sale per indivisible quantity	10
Width	29 mm
Product weight	0.053 kg
Environment
Dielectric strength	2500 V
Standards	IEC 61984 CE UL 508
Marking	CE
Ambient air temperature for storage	-55…85 °C
Ambient air temperature for operation	-40…55 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.9 cm
Package 1 Width	3.1 cm
Package 1 Length	7.5 cm
Package 1 Weight	0.052 kg
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	6.8 cm
Package 2 Width	8.0 cm
Package 2 Length	14.9 cm
Package 2 Weight	0.541 kg
Unit Type of Package 3	S03
Number of Units in Package 3	270
Package 3 Height	30.0 cm
Package 3 Width	30.0 cm
Package 3 Length	40.0 cm
Package 3 Weight	14.9 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IEC 60947-5-1 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: What is the significance of the 7 A rating on the RXZE1M4C?

A: The 7 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: Can the RXZE1M4C relay be mounted on a DIN rail socket for easy replacement?

A: Yes. The RXZE1M4C is a plug-in relay designed for use with a matching relay socket (check RXZ or equivalent series), enabling tool-free relay replacement without disturbing control wiring. Label the socket wiring clearly to enable fast field replacement.

Q: How do I test the RXZE1M4C relay in the field without a signal source?

A: Most Schneider Electric relays can be manually forced using the test button (if fitted) — this mechanically closes the relay contacts without energising the coil, allowing functional testing of the controlled circuit. For coil testing, use a multimeter to measure coil resistance (typically 500–2000Ω for AC coils at rated voltage) and compare with datasheet values.
