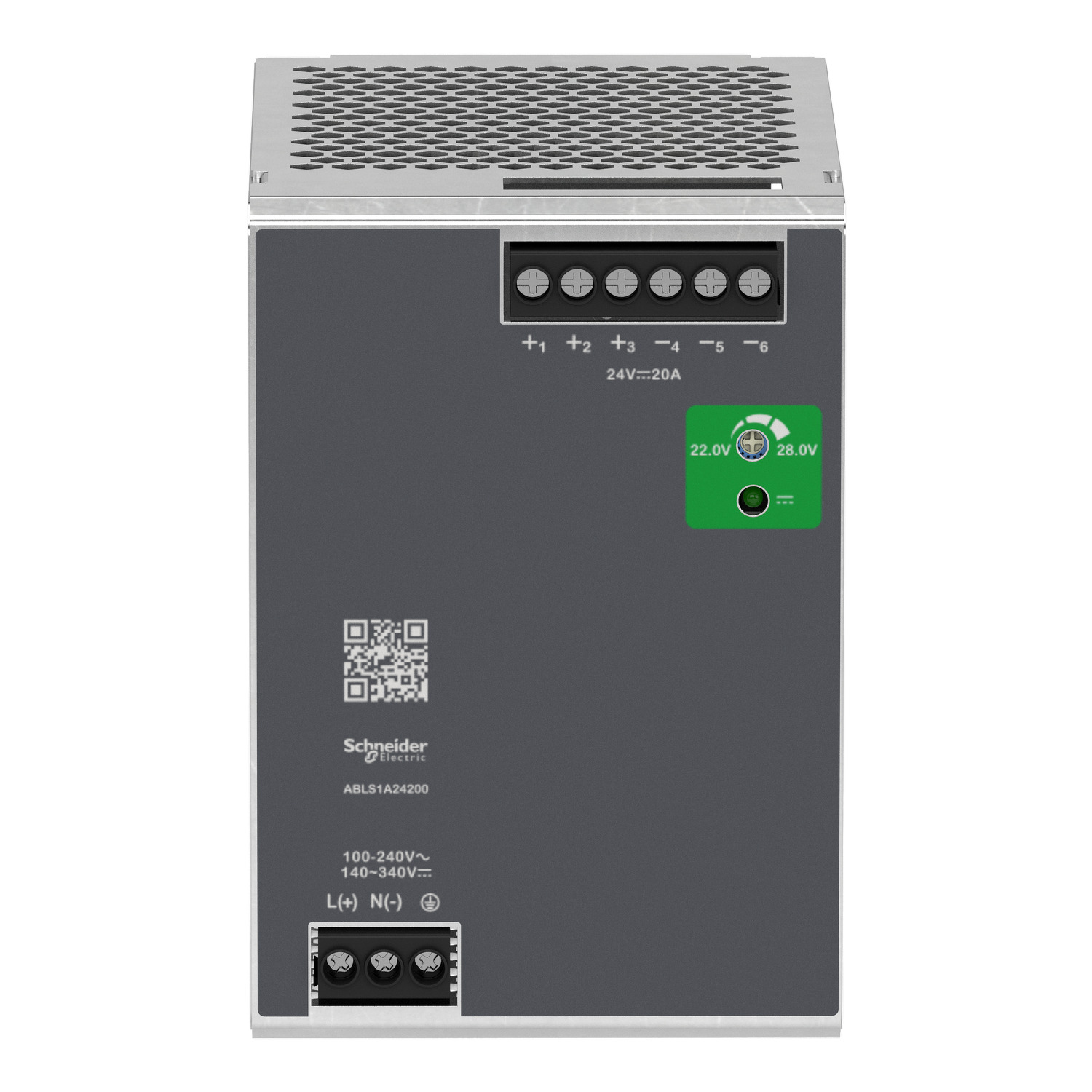

ABLS1A24200 – Regulated Power Supply
Overview
The ABLS1A24200 is a high-performance regulated power supply designed by Schneider Electric. It is optimized for single-phase applications and provides a stable 24V DC output with a maximum current of 20A. This power supply is ideal for industrial automation, control systems, and other applications requiring reliable and efficient power conversion.
Key Features
- Input Voltage: 100 to 240V AC, single phase
- Output Voltage: 24V DC
- Output Current: 20A
- Efficiency: High efficiency design for reduced energy consumption
- Protection: Overload, overvoltage, and short-circuit protection
- Cooling: Convection cooling for silent operation
- Mounting: DIN rail mounting for easy installation
- Operating Temperature: -25°C to +70°C
- Safety Standards: Complies with international safety standards (IEC/EN 60950-1, UL 508)
- Dimensions: Compact design for space-saving installation
- Certifications: CE, UL, and cULus listed
Applications
The ABLS1A24200 is suitable for a wide range of applications, including:
- Industrial automation systems
- Control panels
- Machinery and equipment
- Building automation
- Process control systems
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage Range | 100-240V AC |
| Output Voltage | 24V DC |
| Output Current | 20A |
| Power Rating | 480W |
| Efficiency | Up to 93% |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 |
| Weight | Approx. 1.5 kg |
Warranty
This product comes with a standard warranty of 2 years from the date of purchase, covering manufacturing defects and faults.
