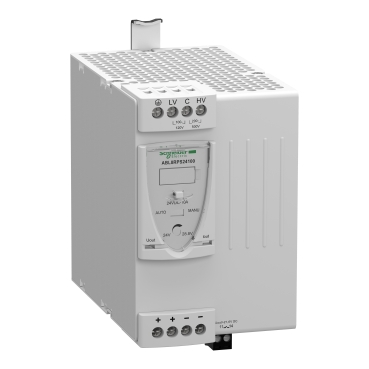

ABL8RPS24100 – Regulated SMPS

Manufacturer: Schneider Electric

The ABL8RPS24100 is a high-performance regulated Switch Mode Power Supply (SMPS) designed for industrial applications. It provides a stable and reliable 24V DC output with a maximum current of 10A, making it suitable for powering a wide range of devices and systems.

Key Features:

• Input Voltage Range: 100..500 V AC (1 or 2-phase)
• Output Voltage: 24 V DC
• Output Current: 10 A
• Power Rating: 240 W
• Efficiency: High efficiency, typically >90%
• Protection Features: Overload, short-circuit, and overvoltage protection
• Cooling Method: Convection cooling (no fan required)
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +85°C
• Safety Standards: Complies with IEC/EN 60950-1, UL 508, and CSA C22.2 No. 107.1
• EMC Compliance: Meets EN 55011 Class A, EN 61000-6-2, and EN 61000-6-4
• Dimensions: Compact design with dimensions of 125 x 124 x 115 mm (W x H x D)
• Weight: Approximately 1.5 kg
• Mounting: DIN rail mounting (TS35/7.5 or 15)
• Terminals: Screw terminals for easy and secure connections
• LED Indicators: Power ON and fault indication

Applications:

The ABL8RPS24100 is ideal for use in various industrial environments, including:

• Automation systems
• Control panels
• Machinery and equipment
• Process control systems
• Telecommunications
• Renewable energy systems

Benefits:

• Reliable and stable power supply for critical applications
• Wide input voltage range for versatile use
• High efficiency reduces energy consumption and heat generation
• Robust protection features ensure safe operation
• Compact and lightweight design for easy installation
• Compliance with international safety and EMC standards

Warranty:

Schneider Electric offers a standard warranty of 2 years for the ABL8RPS24100, ensuring peace of mind and reliable performance.

Support:

For technical support, product documentation, or additional information, please visit the official Schneider Electric website or contact their customer service team.
