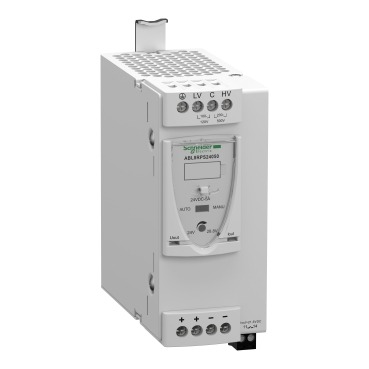

ABL8RPS24050 | regulated SMPS – 1 or 2-phase – 100..500 V – 24 V – 5 A – Schneider Electric

Name: Schneider Electric ABL8RPS24050 24V 5A Regulated SMPS
Brand: Schneider Electric
SKU: ABL8RPS24050
Price: 18055.70 INR
Availability: InStock

SKU: ABL8RPS24050

Original price was: ₹27,778.00.Current price is: ₹18,055.70. Excl. GST

In stock

10 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-55%

GV2RT06 | GV2 MOTOR CB HIGH INRUSH 1-1.6A TOGGLE – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: GV2RT06

-36%

ABL8BUF24400 | BUFFER MODULE 40A – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: ABL8BUF24400

-36%

ABL8DCC05060 | DC/DC MODULE 5V 6A – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: ABL8DCC05060

-27%

M9F22202 | Multi9 C60SP 2P C 2A 10kA 480Y/277V MCB – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: M9F22202

-36%

ABL8DCC12020 | DC/DC MODULE 12V 2A – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: ABL8DCC12020

-36%

ABL8PRP24100 | Modicon Power Supply,Selectivity Mod.Univ – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: ABL8PRP24100

-36%

ABL8RED24400 | REDONDANCY MODULE 40A. – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: ABL8RED24400

Sourced through authorised channels, the Schneider Electric ABL8RPS24050 dc power supply / smps from the Modicon Power Supply range delivers dependable performance for stable DC control power. Key ratings include 5 A, IP20. myelectric.in stocks the ABL8RPS24050 | regulated SMPS – 1 or 2-phase – 100..500 V – 24 V – 5 A for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	ABL8RPS24050
Category	DC Power Supply / SMPS
Main
Range of product	Modicon Power Supply
Product or component type	Power supply
Power supply type	Regulated switch mode
Nominal input voltage	100…120 V AC single phase, terminal(s): N-L1 200…500 V AC phase to phase, terminal(s): L1-L2
Rated power in W	120 W
Output voltage	24 V DC
Power supply output current	5 A
Permissible temporary current boost	1.5 x In (for 4 s)
Anti-harmonic filter	Low frequency harmonic currents
Complementary
Input voltage limits	85…132 V AC 170…550 V AC
Inrush current	30 A
Power factor	0.51 at 240 V AC 0.59 at 120 V AC
Efficiency	87 %
Output voltage adjustment	24…28.8 V adjustable
Power dissipation in W	15.5 W
Provided equipment	Power factor correction filter conforming to IEC 61000-3-2
Output protection type	Against overload, protection technology: manual or automatic reset Against overvoltage, protection technology: 30…32 V, manual reset Against short-circuits, protection technology: manual or automatic reset Against undervoltage, protection technology: tripping if U < 21.6 V Thermal, protection technology: automatic reset
Connections – terminals	Removable screw terminal block: 2 x 2.5 mm², for diagnostic relay Screw type terminals: 3 x 0.5…3 x 4 mm², (AWG 22…AWG 12) for input connection Screw type terminals: 1 x 0.5…1 x 4 mm², (AWG 22…AWG 12) for input ground connection Screw type terminals: 4 x 0.5…4 x 4 mm², (AWG 22…AWG 12) for output connection Screw type terminals: 1 x 0.5…1 x 4 mm², (AWG 22…AWG 12) for output ground connection
Status LED	1 LED (green and red) output voltage 1 LED (green, red and orange) output current
Depth	125 mm
Height	143 mm
Width	56 mm
Product weight	0.7 kg
Output coupling	Parallel Series
Marking	CE
Mounting support	35 x 15 mm symmetrical DIN rail 35 x 7.5 mm symmetrical DIN rail
Operating position	Vertical
Supply	SELV conforming to IEC 60950-1 SELV conforming to IEC 60204-1 SELV conforming to IEC 60364-4-41
Dielectric strength	3500 V with between input and ground 4000 V with between input and output 500 V with between output and ground
Environment
Standards	CSA C22.2 No 60950-1 UL 508 EN/IEC 62368-1
Product certifications	CCSAus EAC KC RCM UL
Environmental characteristic	EMC conforming to IEC 61000-6-1 EMC conforming to IEC 61000-6-3 EMC conforming to EN 55024 EMC conforming to IEC 61000-6-4 EMC conforming to EN/IEC 61204-3 Safety conforming to IEC 60950-1 Safety conforming to EN/IEC 61204-3
Operating altitude	2000 m
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	50…60 °C with derating factor mounting position A < 2000 m -25…50 °C without derating mounting position A < 2000 m
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.800 cm
Package 1 Width	14.500 cm
Package 1 Length	16.500 cm
Package 1 Weight	906.000 g
Unit Type of Package 2	S06
Number of Units in Package 2	105
Package 2 Height	75.000 cm
Package 2 Width	60.000 cm
Package 2 Length	80.000 cm
Package 2 Weight	109.600 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Wide-range 100–500V AC input — works on Indian 230V AC, 110V AC international supply, and generator output without a voltage selector or rewiring.
5 A output current — sized to power a full PLC rack with I/O modules, solenoid coils, and indicator lamps from a single supply unit.
Electronic short-circuit and overload protection — output current-limits on fault and self-recovers automatically on fault clearance; no fuses to replace after a wiring short.
35mm DIN rail mounting (EN 60715) — snaps into the control panel rail alongside MCBs and terminal blocks; no separate bracket or drilling required.
Schneider Electric ABL8 series regulated power supply — designed for industrial control panel duty with built-in overvoltage protection on the output.
Manufactured to IEC 61204 (LV power supplies) — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

GB2CD08M9F22203GB2CD07M9F22202GV2RT06ABL8RED24400ABL8PRP24100ABL8BUF24400ABL8DCC12020ABL8DCC05060BVS240XDPDRBVS480XDPDR

❓ Frequently Asked Questions

Q: What is the significance of the 5 A rating on the ABL8RPS24050?

A: The 5 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: Is the ABL8RPS24050 compatible with both 110V and 230V AC mains supply?

A: Yes. The ABL8RPS24050 accepts a wide-range 100–500V AC input, making it compatible with Indian 230V AC single-phase supply, 110V AC international supply, and generator output which may fluctuate. No voltage selector switch is required — the universal-input switching design handles the full input range automatically, simplifying installation and reducing procurement variants.

Q: Can multiple ABL8RPS24050 units be connected in parallel to increase output current?

A: Standard SMPS units like the ABL8RPS24050 are not designed for direct parallel operation without active current-sharing circuitry. Connecting outputs in parallel without current sharing causes one unit to carry the full load while the other idles — leading to premature failure. For higher current requirements, use a single higher-rated PSU or use Schneider Electric-specified redundancy modules that manage load sharing and provide N+1 fault tolerance for critical applications.
