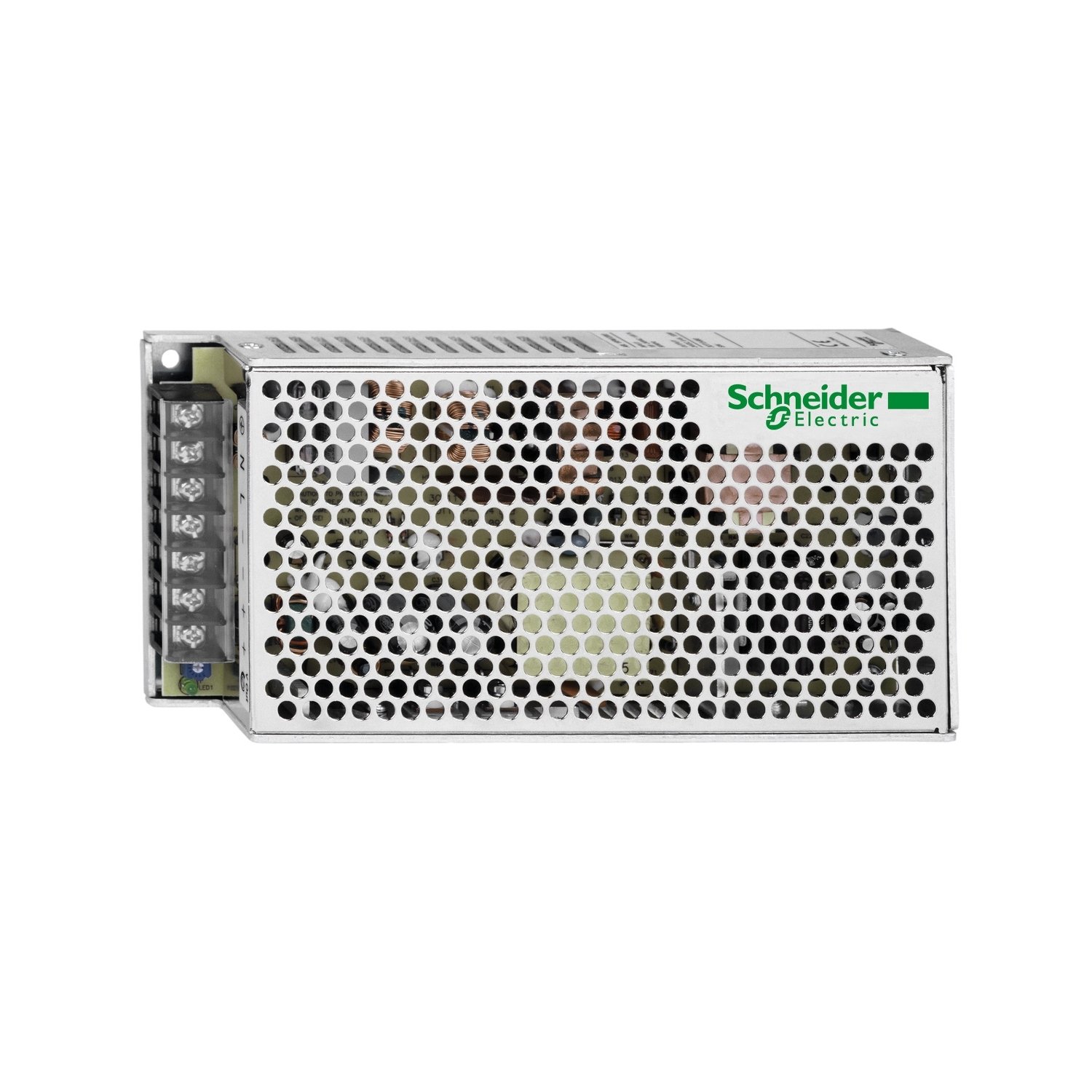

ABL1REM24025 – Regulated SMPS
Product Overview
The ABL1REM24025 is a single-phase regulated Switched Mode Power Supply (SMPS) designed and manufactured by Schneider Electric. It is engineered to provide reliable and efficient power conversion for a wide range of industrial and commercial applications.
Key Features
- Input Voltage: 100..240 V AC
- Output Voltage: 24 V DC
- Power Rating: 60 W
- Efficiency: High efficiency design for reduced energy consumption
- Protection Features: Overload, short-circuit, and overvoltage protection
- Cooling Method: Natural convection cooling
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -40°C to +85°C
- Safety Standards: Compliant with international safety standards
- Mounting: DIN rail mounting for easy installation
- Dimensions: Compact design for space-saving installation
- Weight: Lightweight for easy handling
Applications
The ABL1REM24025 is suitable for a variety of applications, including:
- Industrial automation
- Control systems
- Machinery and equipment
- Building automation
- Telecommunications
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage Range | 100..240 V AC |
| Output Voltage | 24 V DC |
| Output Current | 2.5 A |
| Power Rating | 60 W |
| Efficiency | Up to 90% |
| Protection | Overload, short-circuit, overvoltage |
| Cooling | Natural convection |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Safety Standards | IEC/EN 60950-1, UL 60950-1 |
| Mounting | DIN rail |
| Dimensions (H x W x D) | 90 mm x 22.5 mm x 100 mm |
| Weight | Approx. 200 g |
Warranty
Schneider Electric offers a standard warranty period of 2 years for the ABL1REM24025 power supply unit, subject to the terms and conditions of the warranty policy.
Support
For technical support, product documentation, and additional resources, please visit the official Schneider Electric website or contact their customer service team.
