LC1D80BD | TeSys D Contactor

Product Description

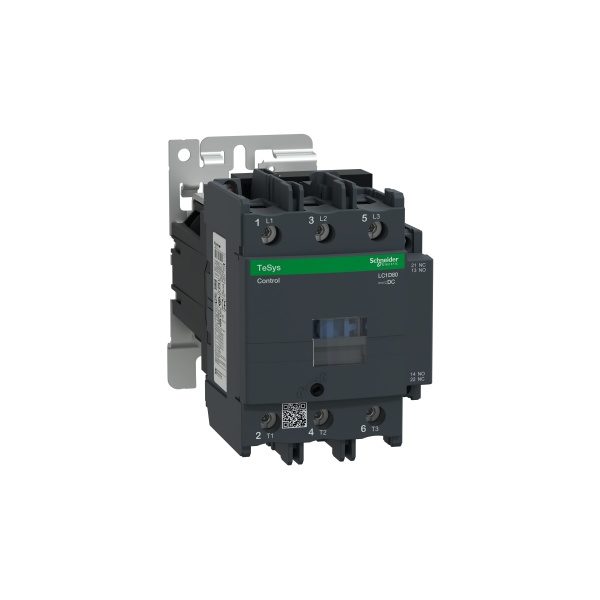

The LC1D80BD is a TeSys D contactor manufactured by Schneider Electric. It is designed for controlling three-phase motors and other heavy-duty applications. This contactor is part of the TeSys D range, known for its reliability, durability, and ease of use.

Key Features

• Type: 3P (3 NO) – Three poles with three normally open contacts.
• Rated Current: 80 A for AC-3 applications.
• Voltage Rating: Suitable for voltages up to 440 V AC.
• Coil Voltage: 24 V DC standard coil.
• Application: Ideal for motor control, HVAC systems, and industrial automation.
• Mounting: Easy to install with screw or snap-on mounting options.
• Durability: High mechanical and electrical endurance.
• Safety: Complies with international standards for safety and performance.
• Accessories: Compatible with a wide range of Schneider Electric accessories for enhanced functionality.

Technical Specifications

Applications

The LC1D80BD contactor is widely used in various industrial and commercial applications, including:

• Motor control for pumps, fans, and compressors.
• HVAC systems for heating, ventilation, and air conditioning.
• Industrial automation and machinery control.
• Power distribution and control panels.

Compliance and Standards

The LC1D80BD contactor complies with the following international standards:

• IEC 60947-4-1
• UL 508
• CSA C22.2 No. 14
• CE Marking

Additional Resources

For more detailed information, including installation guides and technical datasheets, visit the official Schneider Electric website or contact their customer support.
