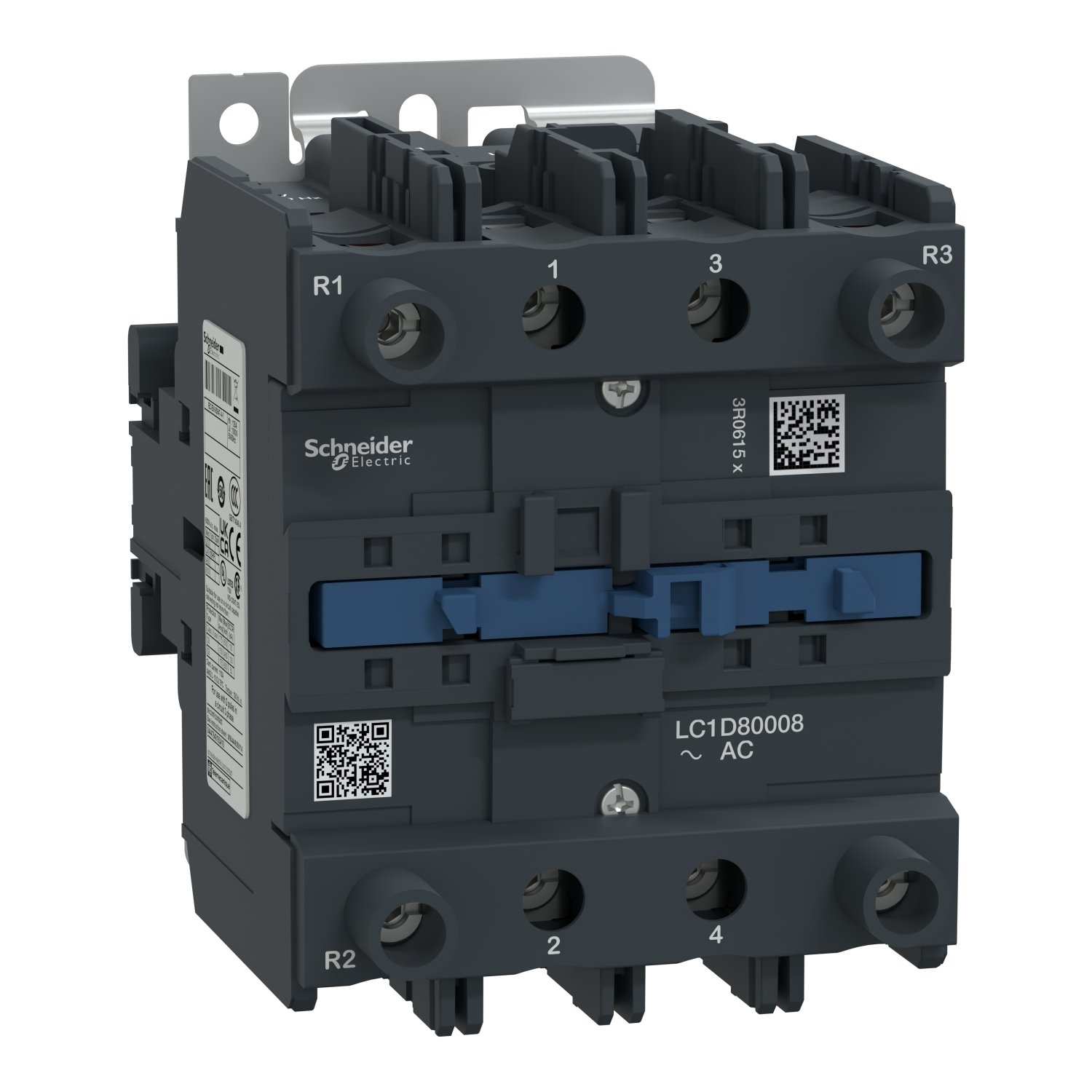

LC1D80008F7 | TeSys D Contactor
Product Description
The LC1D80008F7 is a TeSys D contactor manufactured by Schneider Electric. It is designed for controlling electrical circuits with high reliability and efficiency. This contactor is suitable for a wide range of industrial applications, offering robust performance and durability.
Key Features
- Type: TeSys D Contactor
- Poles: 4P (2 NO + 2 NC)
- Rated Operational Voltage (Ue): AC-1 ≤ 440 V
- Rated Operational Current (Ie): 125 A
- Coil Voltage: 110 V AC
- Frequency: 50/60 Hz
- Contact Configuration: 2 Normally Open (NO) + 2 Normally Closed (NC)
- Mounting: Screw mounting
- Terminal Type: Screw terminals
- Mechanical Durability: High mechanical endurance
- Electrical Durability: High electrical endurance
- Environmental Compliance: RoHS compliant
- Safety Standards: Complies with international safety standards
Applications
The LC1D80008F7 contactor is ideal for use in various industrial applications, including:
- Motor control
- Power distribution
- Heating systems
- Lighting control
- Automation systems
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Operational Power (P) | 55 kW at 400 V AC-3 |
| Rated Thermal Current (Ith) | 125 A |
| Rated Short-Time Withstand Current (Icw) | 10 kA for 1 second |
| Coil Power Consumption | Approx. 20 VA |
| Operating Temperature Range | -25°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Weight | Approx. 1.2 kg |
Additional Information
For more detailed information, including installation guidelines and safety precautions, please refer to the official Schneider Electric product documentation or contact their customer support.
