LC1DT60AE7 | TeSys D Contactor

Product Overview

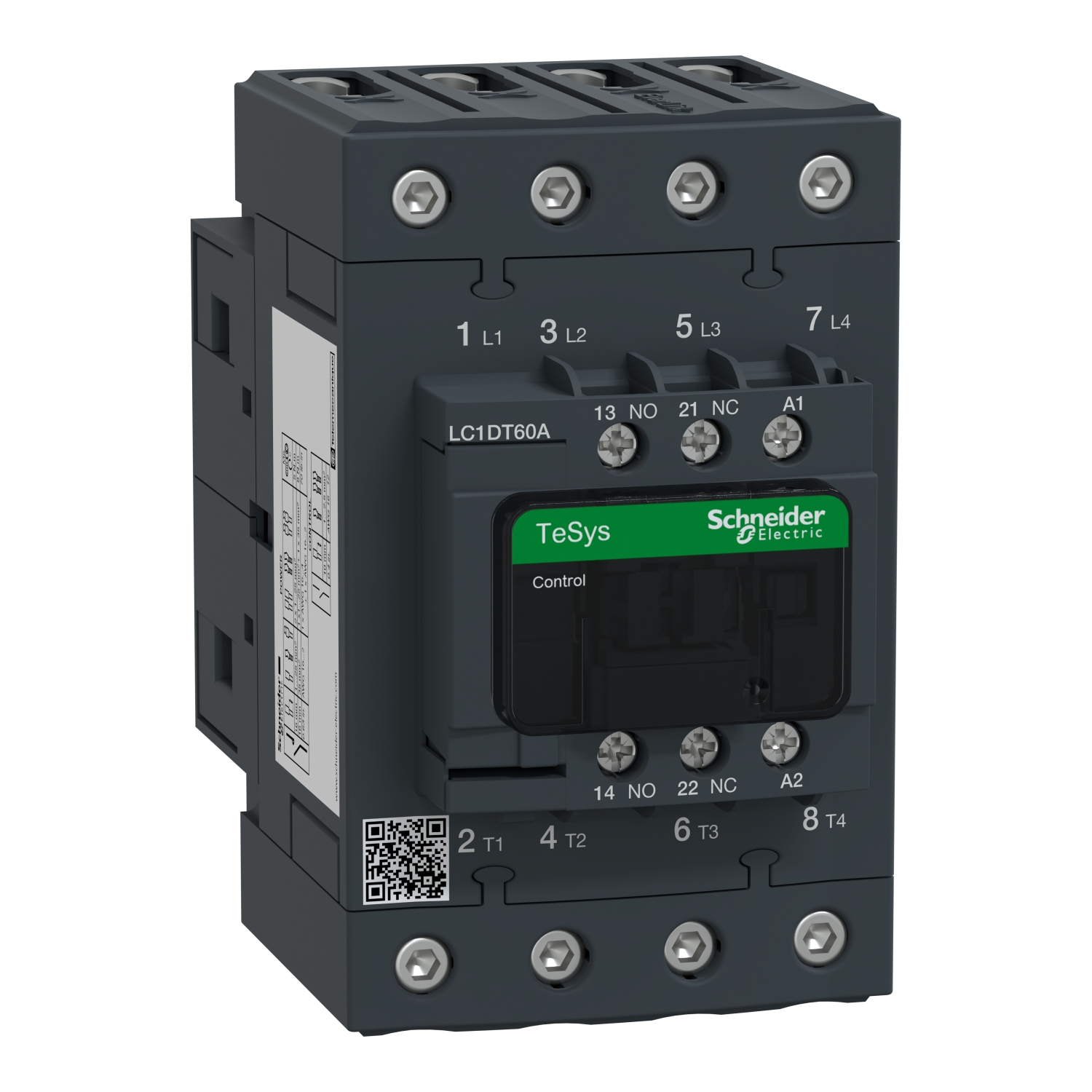

The LC1DT60AE7 is a TeSys D contactor manufactured by Schneider Electric. It is designed for controlling electrical circuits with a wide range of applications in industrial and commercial environments. This contactor is part of the TeSys D series, known for its reliability and durability.

Key Features

• Type: Contactor
• Number of Poles: 4P (4 Normally Open Contacts)
• Rated Operational Current (Ie): 60 A
• Rated Operational Voltage (Ue): ≤ 440 V AC
• Utilization Category: AC-1
• Coil Voltage: 48 V AC 50/60 Hz
• Mounting: Screw mounting or snap-on mounting
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Contact Material: Silver alloy
• Terminal Type: Screw terminals
• Environmental Compliance: RoHS compliant
• Standards: IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14

Applications

The LC1DT60AE7 contactor is suitable for a variety of applications, including:

• Motor control
• Heating systems
• Lighting control
• Power distribution
• Industrial automation

Dimensions and Weight

• Width: 55 mm
• Height: 98 mm
• Depth: 78 mm
• Weight: Approx. 0.5 kg

Accessories

Compatible accessories include:

• Auxiliary contacts
• Mechanical interlocks
• Time delay modules
• Surge suppressors

Warranty

Schneider Electric offers a standard warranty of 24 months from the date of purchase, subject to terms and conditions.

Safety Information

Ensure proper installation and maintenance by qualified personnel. Follow all local and international electrical codes and standards.
