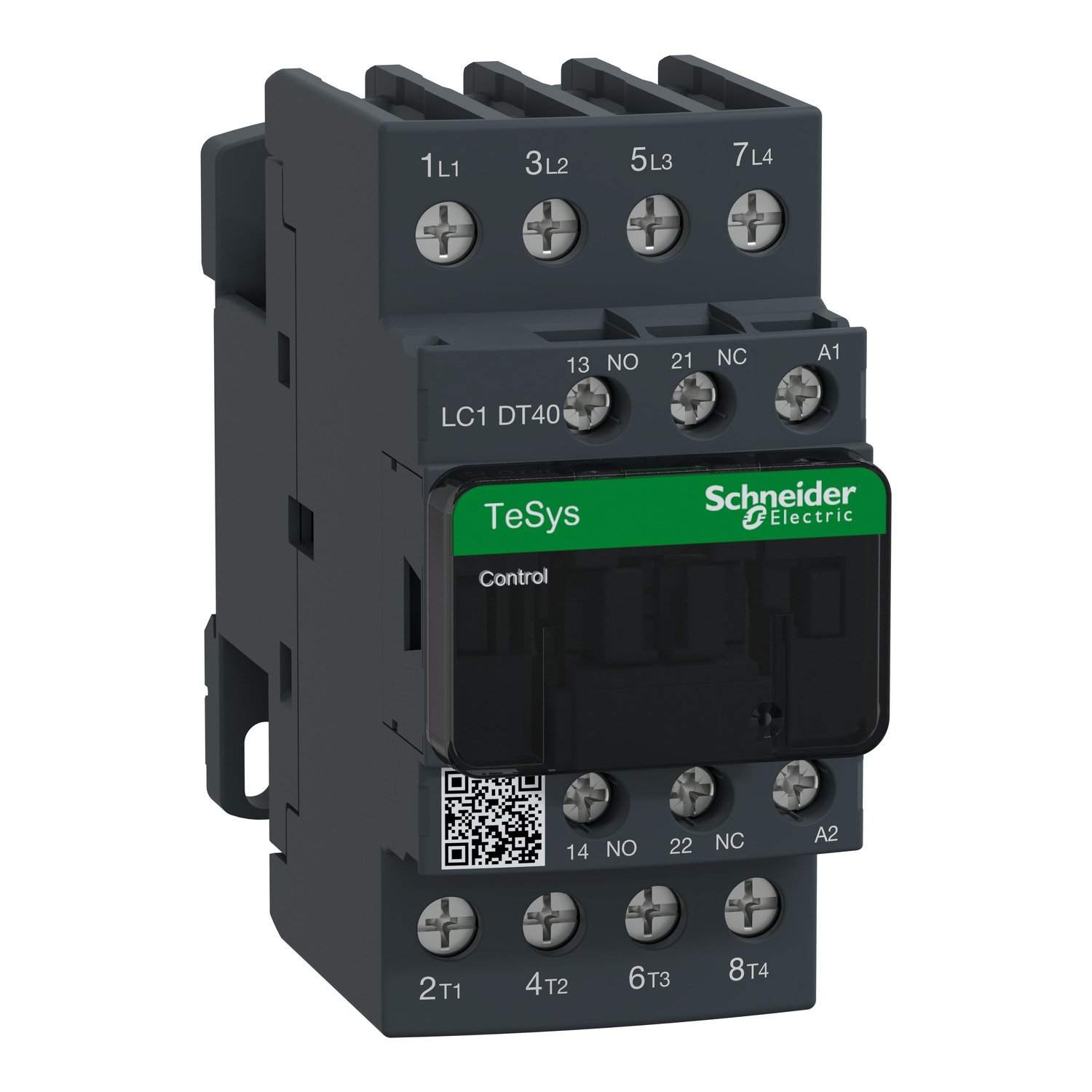

LC1DT40M7 | TeSys D Contactor

Product Overview

The LC1DT40M7 is a TeSys D contactor manufactured by Schneider Electric. It is designed for controlling electrical circuits with a wide range of applications in industrial and commercial environments. This contactor is part of the TeSys D series, known for its reliability and durability.

Key Features

• Type: Contactor
• Series: TeSys D
• Number of Poles: 4P (4 Normally Open Contacts)
• Rated Operational Voltage (Ue): ≤ 440 V AC
• Rated Operational Current (Ie): 40 A
• Coil Voltage: 220 V AC 50/60 Hz
• Utilization Category: AC-1
• Mounting: Screw Mounting
• Terminal Type: Screw Clamp
• Mechanical Durability: 10 million operations
• Electrical Durability: 1 million operations
• Ambient Temperature Range: -25°C to +60°C
• Protection Degree: IP20 (when mounted in an enclosure)
• Standards Compliance: IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14

Applications

The LC1DT40M7 contactor is suitable for a variety of applications, including:

• Motor control
• Heating control
• Lighting control
• Power distribution
• Industrial automation

Dimensions and Weight

• Width: 45 mm
• Height: 80 mm
• Depth: 73 mm
• Weight: Approx. 0.35 kg

Additional Information

The LC1DT40M7 contactor is designed for easy installation and maintenance. It features a compact design, making it suitable for use in space-constrained environments. The contactor is also compatible with a wide range of accessories, including auxiliary contacts, mechanical interlocks, and surge suppressors.

Contact Information

For more information or to purchase the LC1DT40M7 contactor, please contact Schneider Electric or an authorized distributor.
