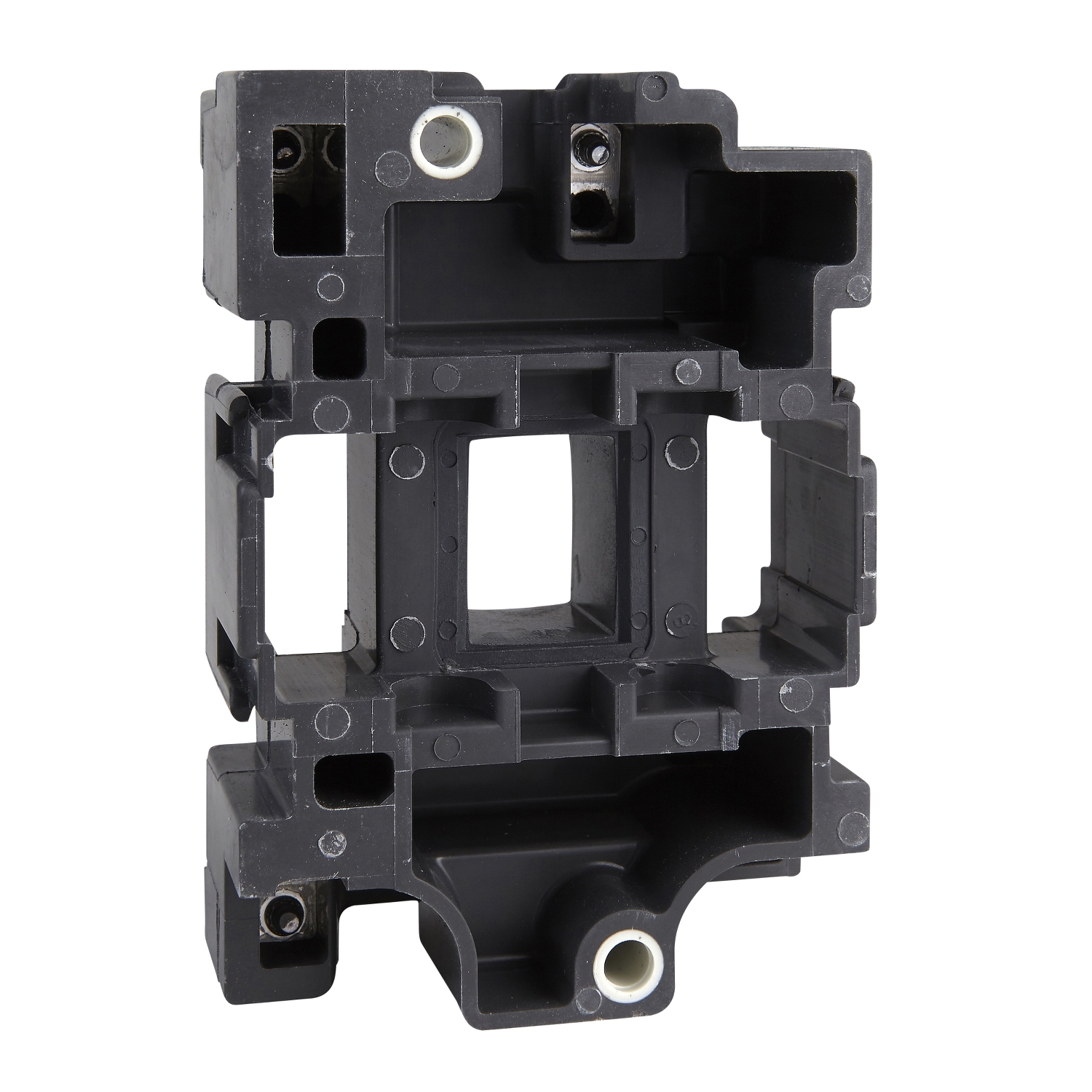

LX1D6M7 | TeSys D – contactor coil – LX1D6 – 220 V AC 50/60 Hz for 80 & 95 A contactor – Schneider Electric

SKU: LX1D6M7

Original price was: ₹9,355.00.Current price is: ₹5,425.90. Excl. GST

In stock

In stock

My Electric Support Online · Mon–Sat 9am–6pm IST
Product enquiry
Order on WhatsApp SKU: LX1D6M7

Same-day dispatch · GST invoice available

10 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

LC1DT40M7 TeSys D contactor 4P 4 NO AC-1 lc1dt40m7 image 1500x1500
-55%

LC1DT40M7 | TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 40 A - 220 V AC 50/60 Hz coil - Schneider Electric

Schneider Electric
Original price was: ₹11,220.00.Current price is: ₹5,049.00. Excl. GST
Add to basket
SKU: LC1DT40M7
LC1D80F7 TeSys D contactor 3P 3 NO AC-3 lc1d80f7 image web
-63%

LC1D80M7 | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 80 A - 220 V AC 50/60 Hz coil - Schneider Electric

Schneider Electric
Original price was: ₹43,210.00.Current price is: ₹15,987.70. Excl. GST
Add to basket
SKU: LC1D80M7
LC1D95M7 TeSys D contactor 3P 3 NO AC-3 lc1d95m7 image 1500x1500
-63%

LC1D95M7 | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 95 A - 220 V AC 50/60 Hz coil - Schneider Electric

Schneider Electric
Original price was: ₹45,005.00.Current price is: ₹16,651.85. Excl. GST
Add to basket
SKU: LC1D95M7
-55%

LC1D40M7 | 3P OLD CONT 22KW 1NO 1NC 220VAC COIL – Schneider Electric

Schneider Electric
Original price was: ₹34,360.00.Current price is: ₹15,462.00. Excl. GST
Add to basket
SKU: LC1D40M7
LC1D65008F5 TeSys D contactor 4P 2 NO 2 NC AC-1 lc1d65008m7 image 1500x1500
-58%

LC1D65008M7 | TeSys D contactor – 4P(2 NO + 2 NC) – AC-1 <= 440 V 80 A 220 V AC 50/60 Hz coil - Schneider Electric

Schneider Electric
Original price was: ₹62,135.00.Current price is: ₹26,096.70. Excl. GST
Add to basket
SKU: LC1D65008M7
LC1D80008F7 TeSys D contactor 4P 2 NO 2 NC AC-1 lc1d80008e7 image 1500x1500
-55%

LC1D80008M7 | TeSys D contactor – 4P(2 NO + 2 NC) – AC-1 <= 440 V 125 A 220 V AC 50/60 Hz coil - Schneider Electric

Schneider Electric
Original price was: ₹69,840.00.Current price is: ₹31,428.00. Excl. GST
Add to basket
SKU: LC1D80008M7
LC1D65M7 CONTACTOR 600VAC 65AMP IEC OPTIONS Schneider Electric row
-55%

LC1D65M7 | CONTACTOR 600VAC 65AMP IEC +OPTIONS – Schneider Electric

Schneider Electric
Original price was: ₹48,475.00.Current price is: ₹21,813.75. Excl. GST
Add to basket
SKU: LC1D65M7
LC1D40008M7 TeSys D contactor 4P 2 NO 2 NC AC-1 lc1d40008e7 image 1500x1500
-55%

LC1D40008M7 | TeSys D contactor – 4P(2 NO + 2 NC) – AC-1 <= 440 V 60 A 220 V AC 50/60 Hz coil - Schneider Electric

Schneider Electric
Original price was: ₹42,920.00.Current price is: ₹19,314.00. Excl. GST
Add to basket
SKU: LC1D40008M7
LC1D80004M7 4P CONTACTOR 125A AC-1 220VAC COIL Schneider Electric lc1d80004m7
-56%

LC1D80004M7 | 4P CONTACTOR 125A AC-1 220VAC COIL – Schneider Electric

Schneider Electric
Original price was: ₹64,455.00.Current price is: ₹28,360.20. Excl. GST
Add to basket
SKU: LC1D80004M7

    Looking for the LX1D6M7 | TeSys D – contactor coil – LX1D6 – 220 V AC 50/60 Hz for 80 & 95 A contactor? This genuine Schneider Electric contactor spare part from the TeSys range is built for motor control and switching, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 95 A, 220V AC. Order part number LX1D6M7 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

    📋 Technical Specifications

    Product
    BrandSchneider Electric
    Part Number / SKULX1D6M7
    CategoryContactor Spare Part
    Main
    RangeTeSys
    Product or component typeContactor coil
    Device short nameLX1D6
    Control circuit typeAC at 50/60 Hz
    [Uc] control circuit voltage220 V AC 50/60 Hz
    Average resistance102 Ohm at 20 °C
    Inductance of closed circuit6.7 H
    Product compatibilityLC1D40
    LC1D50
    LC1D65…D95
    Mechanical durability4 Mcycles
    Maximum operating rate3600 cyc/h 60 °C
    Complementary
    Coil technologyWithout built-in suppressor module
    Control circuit voltage limitsDrop-out: 0.3…0.6 Uc at 50/60 Hz (at <55 °C)
    Operational: 0.8…1.1 Uc at 50 Hz (at <55 °C)
    Operational: 0.85…1.1 Uc at 60 Hz (at <55 °C)
    Inrush power in VA245 VA 60 Hz cos phi 0.75 (at 20 °C)
    245 VA 50 Hz cos phi 0.75 (at 20 °C)
    Hold-in power consumption in VA26 VA 60 Hz cos phi 0.3 (at 20 °C)
    26 VA 50 Hz cos phi 0.3 (at 20 °C)
    Heat dissipation6…10 W at 50/60 Hz
    Environment
    Ambient air temperature for operation-5…60 °C
    Product weight0.28 kg
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height5.700 cm
    Package 1 Width9.500 cm
    Package 1 Length12.500 cm
    Package 1 Weight313.000 g
    Unit Type of Package 2S02
    Number of Units in Package 216
    Package 2 Height15.000 cm
    Package 2 Width30.000 cm
    Package 2 Length40.000 cm
    Package 2 Weight5.318 kg
    Contractual warranty
    Warranty (in months)18

    ⚡ Key Features

    • Genuine Schneider Electric OEM accessory — manufactured to the same specification and tested to the same standards as the parent device; ensures mechanical and electrical compatibility that third-party alternatives cannot guarantee.
    • Replacement contactor coil rated 220V AC — restores the original contactor to service at a fraction of the cost of a complete replacement.
    • Exact-fit replacement — same electrical and mechanical specification as the factory-fitted coil; no recalibration or adjustment of the contactor required after fitting.
    • Direct clip-on or screw-mount to parent device — fits without panel modification or additional wiring between the accessory and main device; field-retrofittable.
    • Manufactured to IEC 60947 (tested as part of the parent device certification) — complies with the applicable Indian BIS and IEC international standards for this product category.
    • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
    • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
    • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
    • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

    🔗 Compatible Products & Accessories

    The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

    LC1D80M7LC1D95M7LC1DT40M7LC1D80004M7LC1D40008M7LC1D40M7LC1D65008M7LC1D806M7LC1D80008M7LC1D50M7LC1D65M7LC2D80M7LC1D40004M7

    ❓ Frequently Asked Questions

    Q: Is the LX1D6M7 rated 95 A for AC-3 motor duty or AC-1 resistive duty?

    A: The 95 A rating of this Schneider Electric contactor applies to AC-3 duty (squirrel cage motor starting and running). For AC-1 (resistive/non-inductive) loads, the current can be up to ~1.3× the AC-3 rating. AC-4 (plugging/reversing) requires significant de-rating — consult the Schneider Electric selection table.

    Q: The LX1D6M7 has a coil voltage of 220V AC — what control supply is needed?

    A: This Schneider Electric device requires a 220V AC control supply connected to the coil terminals (A1 and A2). For AC coils, ensure the control circuit voltage is stable — voltage drops below 85% of rated coil voltage can cause chatter and coil overheating. Always fit a surge suppressor across the coil when switching with a PLC or solid-state relay.

    Q: How do I know the LX1D6M7 replacement coil matches my contactor?

    A: Match three things: (1) the contactor series and frame size stated for the LX1D6M7, (2) the coil voltage — the replacement must equal the control circuit voltage exactly, and (3) AC or DC supply type. Fitting a coil of the wrong voltage causes failure to pull in (too low) or coil burnout (too high). The original coil’s voltage is printed on its face — verify before ordering.

    Q: What causes a contactor coil to fail and need replacement like the LX1D6M7?

    A: The most common causes are: sustained undervoltage (coil hums and overheats while failing to seal the magnetic circuit), overvoltage, voltage spikes from nearby switching inductive loads, dust or rust on the magnet faces preventing full closure (coil draws inrush current continuously), and simple ageing of the insulation. If coils fail repeatedly, fit a surge suppressor and check the control supply voltage stability before fitting the new coil.
