    LXD1F7 | TeSys D – contactor coil – LXD1 – 110 V AC 50/60 Hz for 9… 38 A contactor – Schneider Electric

    SKU: LXD1F7

    Original price was: ₹2,390.00.Current price is: ₹1,314.50. Excl. GST

    Dispatch By : 2 Weeks

    Dispatch By : 2 Weeks

    10 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Additional Addons/Accessories

    LC1D188F7 TeSys D contactor 4P 2 NO 2 NC AC-1 lc1d188f7 image 1500x1500
    -55%

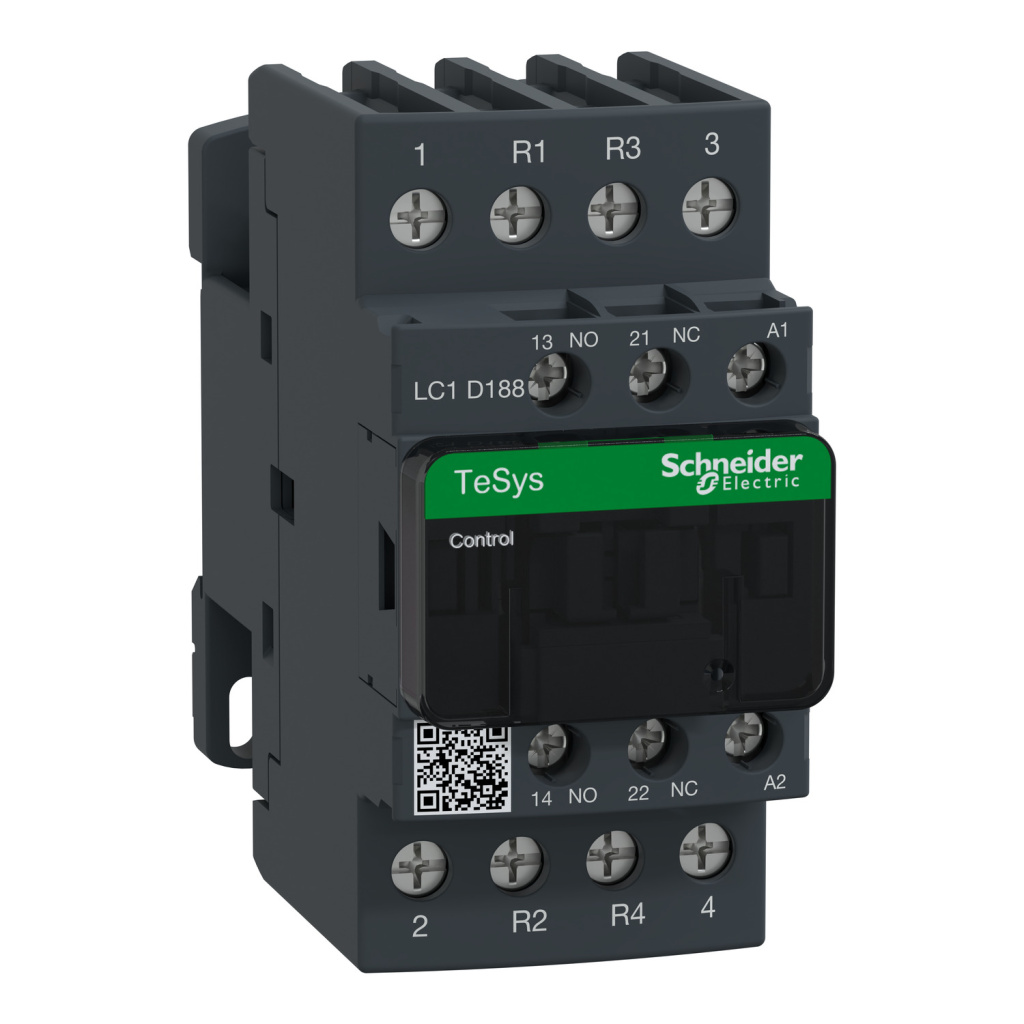

    LC1D188F7 | TeSys D contactor – 4P(2 NO + 2 NC) – AC-1 – <= 440 V 32 A - 110 V AC coil - Schneider Electric

    Schneider Electric
    Original price was: ₹9,830.00.Current price is: ₹4,423.50. Excl. GST
    Add to basket
    SKU: LC1D188F7
    LC1D25B7 TeSys D contactor 3P 3 NO AC-3 lc1d25 front 1500x1500
    -63%

    LC1D25F7 | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 25 A - 110 V AC coil - Schneider Electric

    Schneider Electric
    Original price was: ₹5,250.00.Current price is: ₹1,942.50. Excl. GST
    Add to basket
    SKU: LC1D25F7
    LC1D128F7 TeSys D contactor 4P 2 NO 2 NC AC-1 lc1d128f7 image 1500x1500
    -58%

    LC1D128F7 | TeSys D contactor – 4P(2 NO + 2 NC) – AC-1 – <= 440 V 25 A - 110 V AC coil - Schneider Electric

    Schneider Electric
    Original price was: ₹9,110.00.Current price is: ₹3,826.20. Excl. GST
    Add to basket
    SKU: LC1D128F7
    LC1D258F7 TeSys D contactor 4P 2 NO 2 NC AC-1 lc1d258f7 image 1500x1500
    -55%

    LC1D258F7 | TeSys D contactor – 4P(2 NO + 2 NC) – AC-1 – <= 440 V 40 A - 110 V AC coil - Schneider Electric

    Schneider Electric
    Original price was: ₹14,525.00.Current price is: ₹6,536.25. Excl. GST
    Add to basket
    SKU: LC1D258F7
    LC1D098F7 TeSys D contactor 4P 2 NO 2 NC AC-1 lc1d098f7 image 1500x1500
    -55%

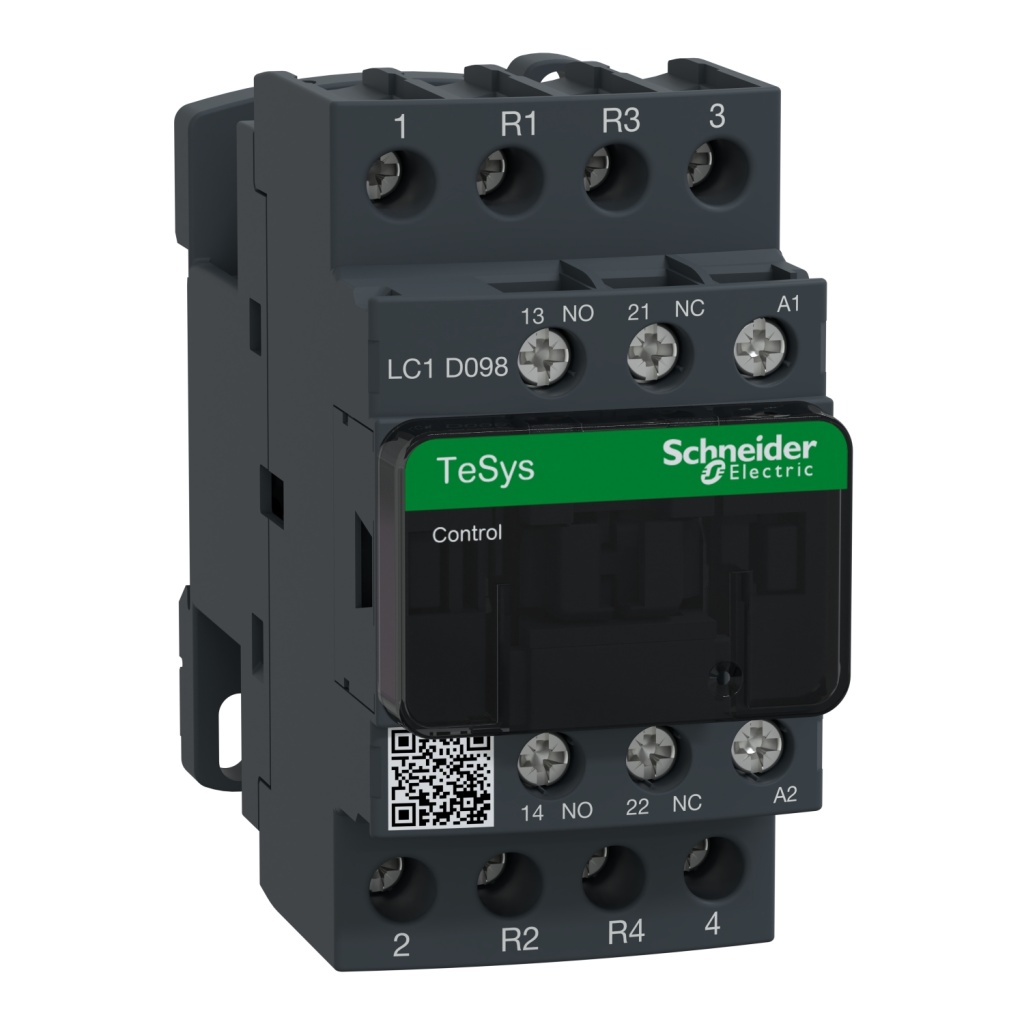

    LC1D098F7 | TeSys D contactor – 4P(2 NO + 2 NC) – AC-1 – <= 440 V 20 A - 110 V AC coil - Schneider Electric

    Schneider Electric
    Original price was: ₹7,695.00.Current price is: ₹3,462.75. Excl. GST
    Add to basket
    SKU: LC1D098F7
    -55%

    LC1D186F7 | TeSys Contactor 3P AC3 18A 110VAC – Schneider Electric

    Schneider Electric
    Original price was: ₹4,860.00.Current price is: ₹2,187.00. Excl. GST
    Add to basket
    SKU: LC1D186F7
    LC1D38F7 TeSys D contactor 3P 3 NO AC-3 lc1d38f7 image 1500x1500
    -55%

    LC1D38F7 | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 38 A - 110 V AC 50/60 Hz coil - Schneider Electric

    Schneider Electric
    Original price was: ₹14,530.00.Current price is: ₹6,538.50. Excl. GST
    Add to basket
    SKU: LC1D38F7
    LC1D09P7 TeSys D contactor 3P 3 NO AC-3 lc1d09 front 1500x1500
    -63%

    LC1D09F7 | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 9 A - 110 V AC coil - Schneider Electric

    Schneider Electric
    Original price was: ₹3,235.00.Current price is: ₹1,196.95. Excl. GST
    Add to basket
    SKU: LC1D09F7
    CAD32N7 TeSys D control relay 3 NO 2 NC cad32 front 1500x1500
    -55%

    CAD32F7 | TeSys D control relay – 3 NO + 2 NC – <= 690 V - 110 V AC standard coil - Schneider Electric

    Schneider Electric
    Original price was: ₹3,310.00.Current price is: ₹1,489.50. Excl. GST
    Add to basket
    SKU: CAD32F7
    CAD50F7 TeSys D control relay 5 NO cad50f7 image 1500x1500
    -55%

    CAD50F7 | TeSys D control relay – 5 NO – <= 690 V - 110 V AC standard coil - Schneider Electric

    Schneider Electric
    Original price was: ₹3,310.00.Current price is: ₹1,489.50. Excl. GST
    Add to basket
    SKU: CAD50F7
    LC1D18B7 TeSys D contactor 3P 3 NO AC-3 lc1d18b7 image web
    -63%

    LC1D18F7 | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 18 A - 110 V AC coil - Schneider Electric

    Schneider Electric
    Original price was: ₹4,230.00.Current price is: ₹1,565.10. Excl. GST
    Add to basket
    SKU: LC1D18F7
    LC1D32F7 TeSys D contactor 3P 3 NO AC-3 lc1d32f7 image 1500x1500
    -63%

    LC1D32F7 | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 32 A - 110 V AC coil - Schneider Electric

    Schneider Electric
    Original price was: ₹10,215.00.Current price is: ₹3,779.55. Excl. GST
    Add to basket
    SKU: LC1D32F7
    LC1DT25F7 TeSys D contactor 4P 4 NO AC-1 lc1dt25f7 image 1500x1500
    -55%

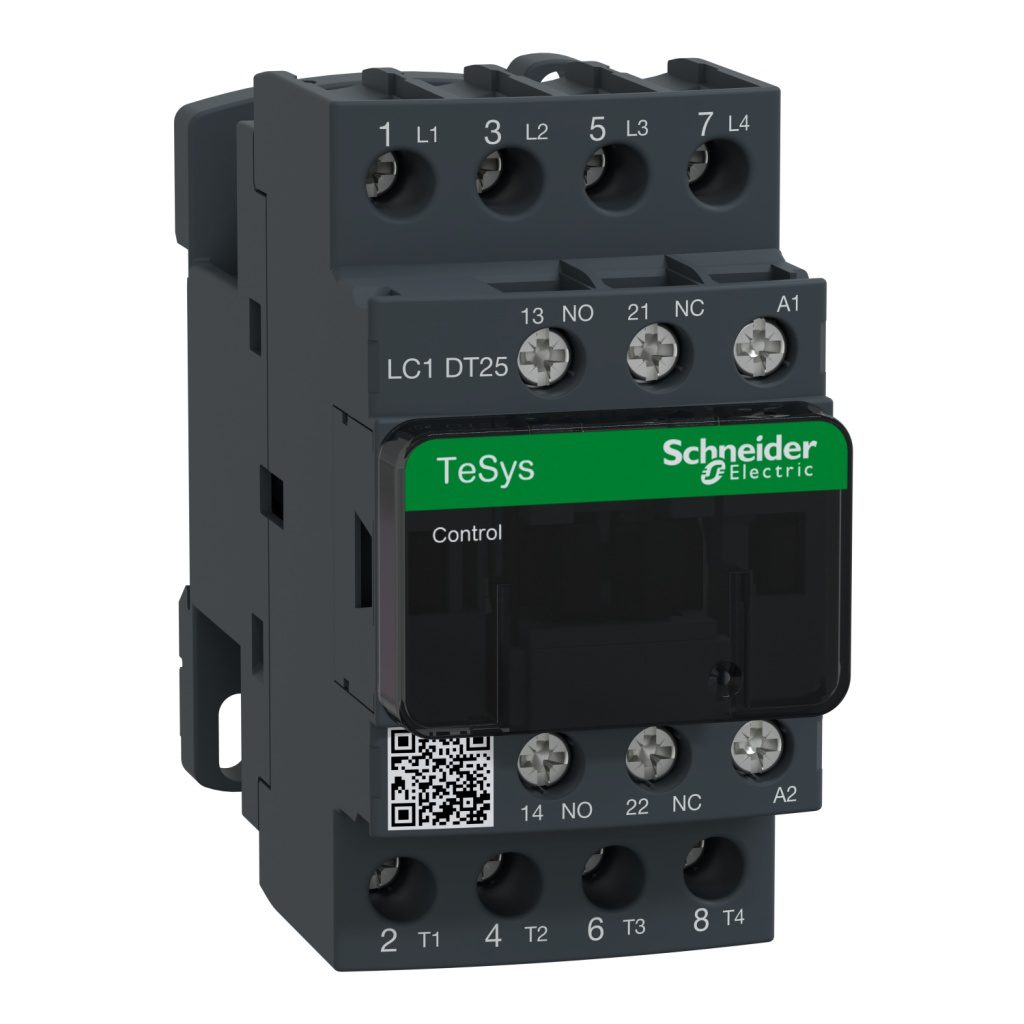

    LC1DT25F7 | TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 25 A - 110 V AC 50/60 Hz coil - Schneider Electric

    Schneider Electric
    Original price was: ₹7,595.00.Current price is: ₹3,417.75. Excl. GST
    Add to basket
    SKU: LC1DT25F7
    LC1D12F7 TeSys D contactor 3P 3 NO AC-3 lc1d12b7 image web
    -63%

    LC1D12F7 | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 12 A - 110 V AC coil - Schneider Electric

    Schneider Electric
    Original price was: ₹3,645.00.Current price is: ₹1,348.65. Excl. GST
    Add to basket
    SKU: LC1D12F7
    -55%

    LC1D256F7 | TeSys Contactor 3P AC3 25A 110VAC – Schneider Electric

    Schneider Electric
    Original price was: ₹6,200.00.Current price is: ₹2,790.00. Excl. GST
    Add to basket
    SKU: LC1D256F7

      Looking for the LXD1F7 | TeSys D – contactor coil – LXD1 – 110 V AC 50/60 Hz for 9… 38 A contactor? This genuine Schneider Electric contactor spare part from the TeSys range is built for motor control and switching, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 38 A, 110V AC. Order part number LXD1F7 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

      📋 Technical Specifications

      Product
      BrandSchneider Electric
      Part Number / SKULXD1F7
      CategoryContactor Spare Part
      Main
      RangeTeSys
      Product or component typeContactor coil
      Device short nameLXD1
      Control circuit typeAC at 50/60 Hz
      [Uc] control circuit voltage110 V AC 50/60 Hz
      Average resistance124.1 Ohm at 20 °C
      Inductance of closed circuit4.6 H
      Product compatibilityLC1DT20…DT40
      LC1D09…D38
      CAD
      Mechanical durability15 Mcycles
      Maximum operating rate3600 cyc/h 60 °C
      Complementary
      Coil technologyWithout built-in suppressor module
      Control circuit voltage limitsDrop-out: 0.3…0.6 Uc at 50/60 Hz (at <60 °C)
      Operational: 0.8…1.1 Uc at 50 Hz (at <60 °C)
      Operational: 0.85…1.1 Uc at 60 Hz (at <60 °C)
      Inrush power in VA70 VA 60 Hz cos phi 0.75 (at 20 °C)
      70 VA 50 Hz cos phi 0.75 (at 20 °C)
      Hold-in power consumption in VA7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
      7 VA 50 Hz cos phi 0.3 (at 20 °C)
      Heat dissipation2…3 W at 50/60 Hz
      Environment
      Ambient air temperature for operation-5…60 °C
      Product weight0.07 kg
      Packing Units
      Unit Type of Package 1PCE
      Number of Units in Package 11
      Package 1 Height4.000 cm
      Package 1 Width6.300 cm
      Package 1 Length4.500 cm
      Package 1 Weight70.000 g
      Unit Type of Package 2S02
      Number of Units in Package 2100
      Package 2 Height15.000 cm
      Package 2 Width30.000 cm
      Package 2 Length40.000 cm
      Package 2 Weight7.430 kg
      Contractual warranty
      Warranty (in months)18

      ⚡ Key Features

      • Genuine Schneider Electric OEM accessory — manufactured to the same specification and tested to the same standards as the parent device; ensures mechanical and electrical compatibility that third-party alternatives cannot guarantee.
      • Replacement contactor coil rated 110V AC — restores the original contactor to service at a fraction of the cost of a complete replacement.
      • Exact-fit replacement — same electrical and mechanical specification as the factory-fitted coil; no recalibration or adjustment of the contactor required after fitting.
      • Direct clip-on or screw-mount to parent device — fits without panel modification or additional wiring between the accessory and main device; field-retrofittable.
      • Manufactured to IEC 60947 (tested as part of the parent device certification) — complies with the applicable Indian BIS and IEC international standards for this product category.
      • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
      • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
      • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
      • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

      🔗 Compatible Products & Accessories

      The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

      LC1D09F7LC1D18F7LC1D25F7LC1D12F7LC1D32F7CAD32F7CAD50F7LC1D38F7LC1D096F7LC1D258F7LC1D128F7LC2D09F7LC1DT25F7LC2D12F7LC1D186F7CAD326F7LC2D18F7LC1D256F7LC1D098F7LC1D188F7

      ❓ Frequently Asked Questions

      Q: Is the LXD1F7 rated 38 A for AC-3 motor duty or AC-1 resistive duty?

      A: The 38 A rating of this Schneider Electric contactor applies to AC-3 duty (squirrel cage motor starting and running). For AC-1 (resistive/non-inductive) loads, the current can be up to ~1.3× the AC-3 rating. AC-4 (plugging/reversing) requires significant de-rating — consult the Schneider Electric selection table.

      Q: The LXD1F7 has a coil voltage of 110V AC — what control supply is needed?

      A: This Schneider Electric device requires a 110V AC control supply connected to the coil terminals (A1 and A2). For AC coils, ensure the control circuit voltage is stable — voltage drops below 85% of rated coil voltage can cause chatter and coil overheating. Always fit a surge suppressor across the coil when switching with a PLC or solid-state relay.

      Q: What causes a contactor coil to fail and need replacement like the LXD1F7?

      A: The most common causes are: sustained undervoltage (coil hums and overheats while failing to seal the magnetic circuit), overvoltage, voltage spikes from nearby switching inductive loads, dust or rust on the magnet faces preventing full closure (coil draws inrush current continuously), and simple ageing of the insulation. If coils fail repeatedly, fit a surge suppressor and check the control supply voltage stability before fitting the new coil.

      Q: How do I know the LXD1F7 replacement coil matches my contactor?

      A: Match three things: (1) the contactor series and frame size stated for the LXD1F7, (2) the coil voltage — the replacement must equal the control circuit voltage exactly, and (3) AC or DC supply type. Fitting a coil of the wrong voltage causes failure to pull in (too low) or coil burnout (too high). The original coil’s voltage is printed on its face — verify before ordering.
