LXD1M7 | TeSys D – contactor coil – LXD1 – 220 V AC 50/60 Hz for 9… 38 A contactor – Schneider Electric

SKU: LXD1M7

Original price was: ₹2,390.00.Current price is: ₹1,386.20. Excl. GST

In stock

In stock

My Electric Support Online · Mon–Sat 9am–6pm IST
Product enquiry
Order on WhatsApp SKU: LXD1M7

Same-day dispatch · GST invoice available

13 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

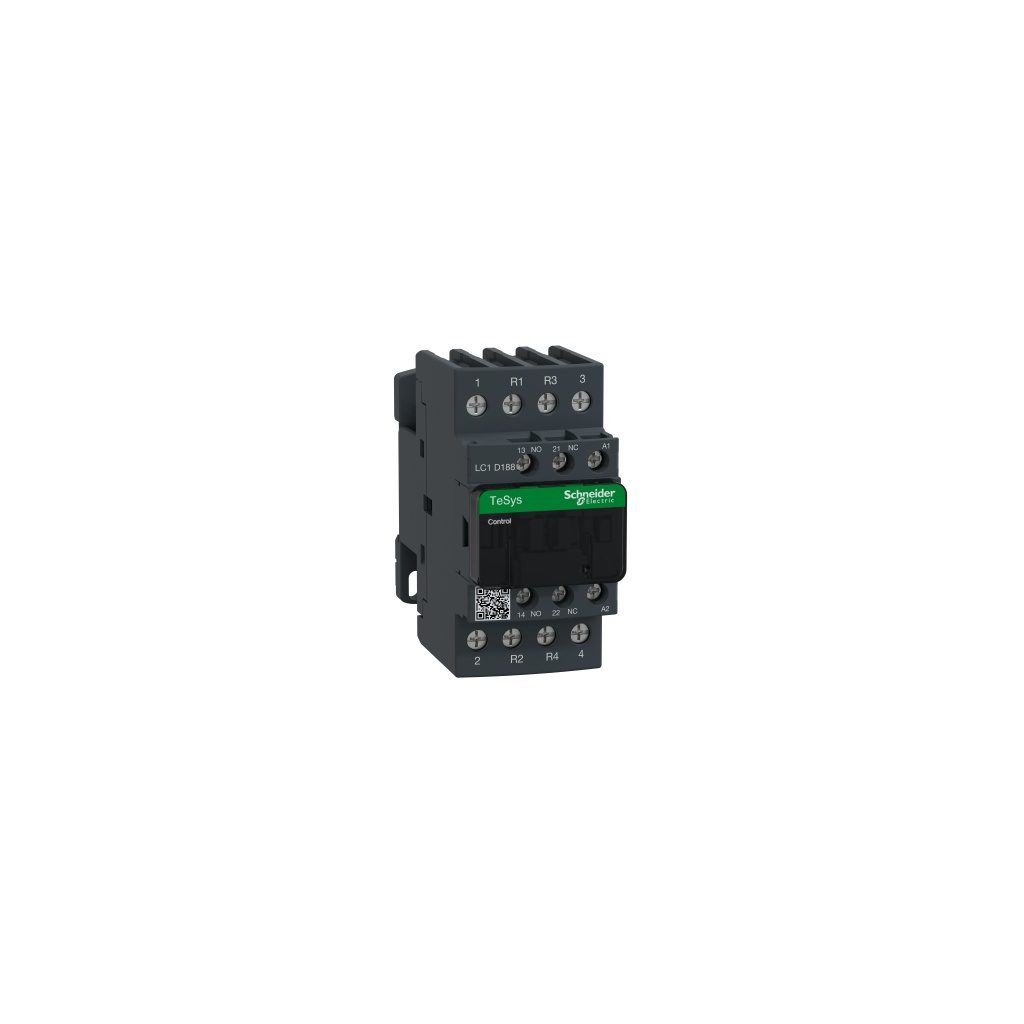

LC1D188M7 TeSys D contactor 4P 2 NO 2 NC AC-1 lc1d188m7 image web
-56%

LC1D188M7 | TeSys D contactor – 4P(2 NO + 2 NC) – AC-1 – <= 440 V 32 A - 220 V AC coil - Schneider Electric

Schneider Electric
Original price was: ₹9,830.00.Current price is: ₹4,325.20. Excl. GST
Add to basket
SKU: LC1D188M7
LC1D12F7 TeSys D contactor 3P 3 NO AC-3 lc1d12b7 image web
-63%

LC1D12M7 | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 12 A - 220 V AC coil - Schneider Electric

Schneider Electric
Original price was: ₹3,645.00.Current price is: ₹1,348.65. Excl. GST
Add to basket
SKU: LC1D12M7

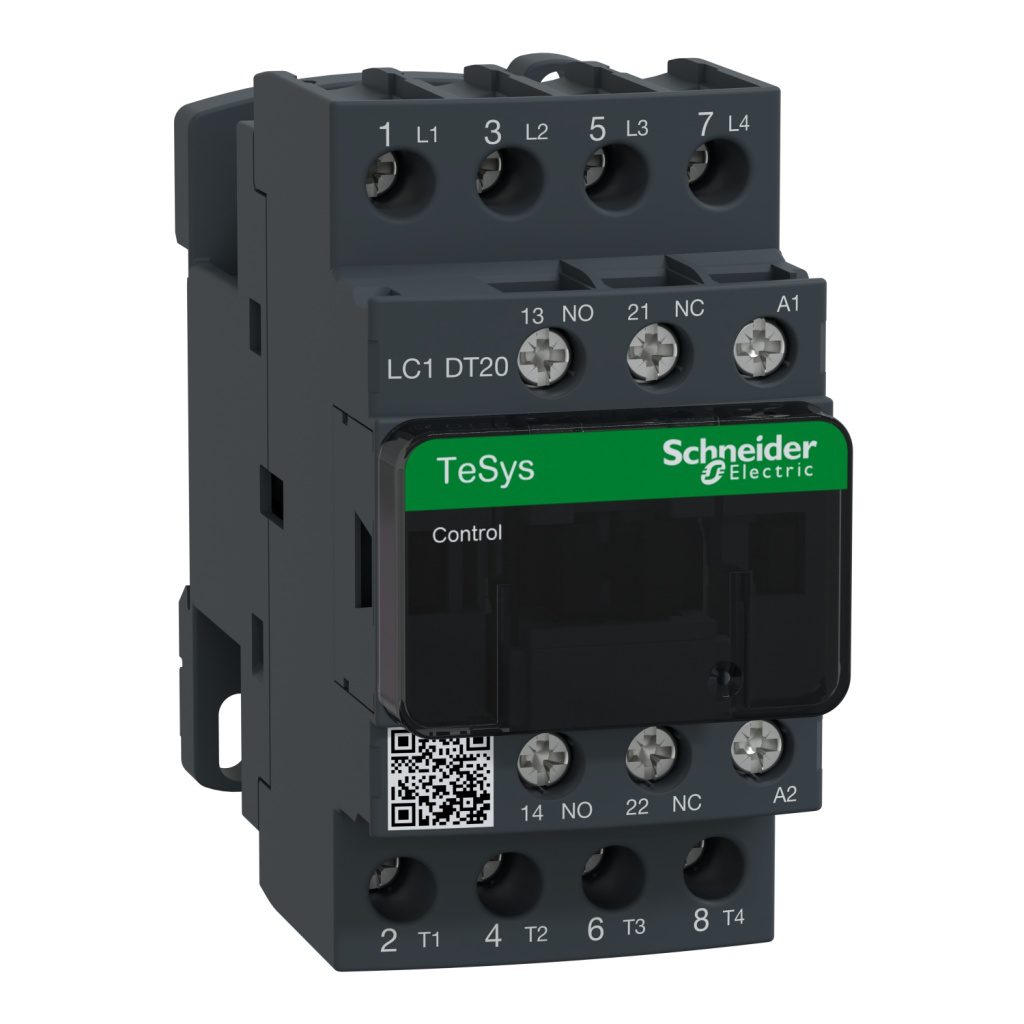

LC1DT20M7 TeSys D contactor 4P 4 NO AC-1 lc1dt20m7 image 1 1500x1500
-55%

LC1DT20M7 | TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 20 A - 220 V AC 50/60 Hz coil - Schneider Electric

Schneider Electric
Original price was: ₹6,940.00.Current price is: ₹3,123.00. Excl. GST
Add to basket
SKU: LC1DT20M7

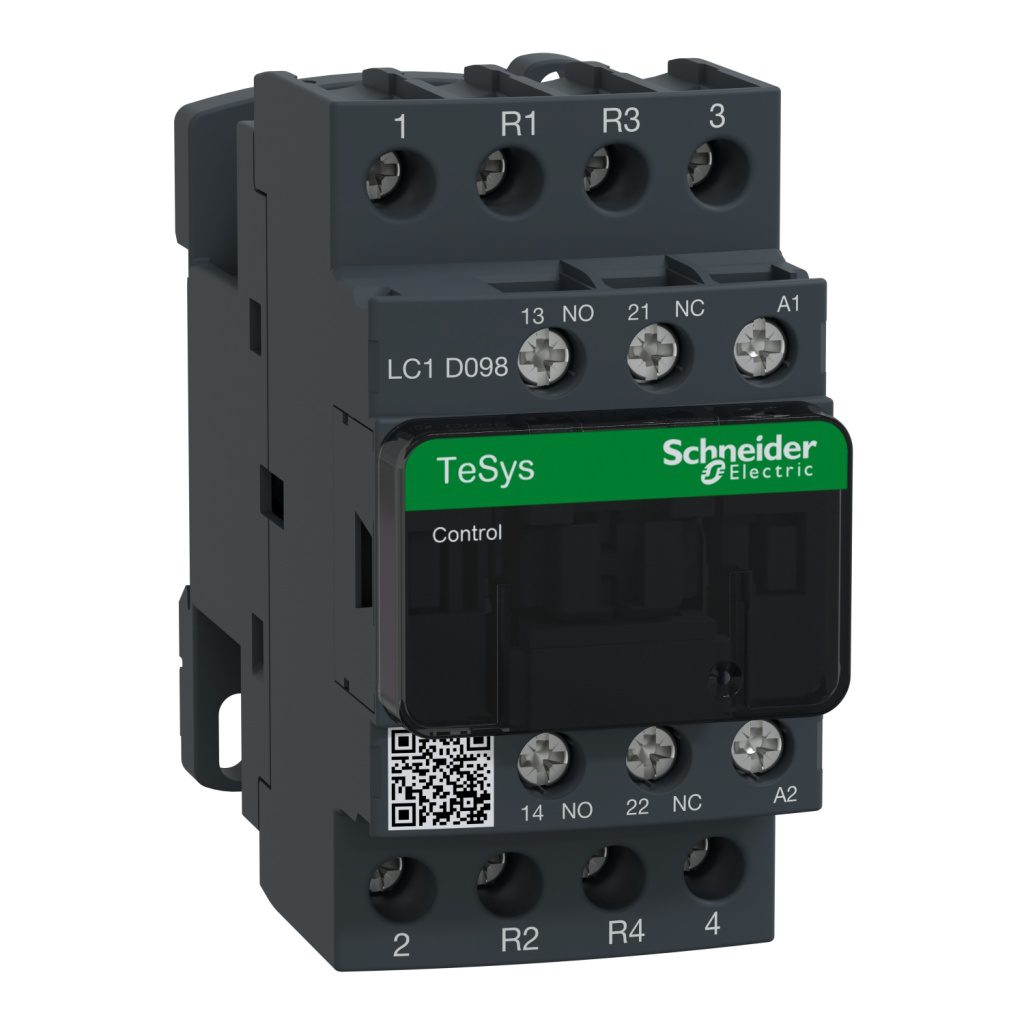

LC1D098M7 TeSys D contactor 4P 2 NO 2 NC AC-1 lc1d098m7 image 1500x1500
-55%

LC1D098M7 | TeSys D contactor – 4P(2 NO + 2 NC) – AC-1 – <= 440 V 20 A - 220 V AC coil - Schneider Electric

Schneider Electric
Original price was: ₹7,695.00.Current price is: ₹3,462.75. Excl. GST
Add to basket
SKU: LC1D098M7
CAD50M7 TeSys D control relay 5 NO cad50m7 image 1500x1500
-55%

CAD50M7 | TeSys D control relay – 5 NO – <= 690 V - 220 V AC standard coil - Schneider Electric

Schneider Electric
Original price was: ₹3,310.00.Current price is: ₹1,489.50. Excl. GST
Add to basket
SKU: CAD50M7
LC1D09P7 TeSys D contactor 3P 3 NO AC-3 lc1d09 front 1500x1500
-63%

LC1D09M7 | TeSys D contactor – 3P(3 NO) – AC-3 –

Schneider Electric
Original price was: ₹3,235.00.Current price is: ₹1,196.95. Excl. GST
Add to basket
SKU: LC1D09M7

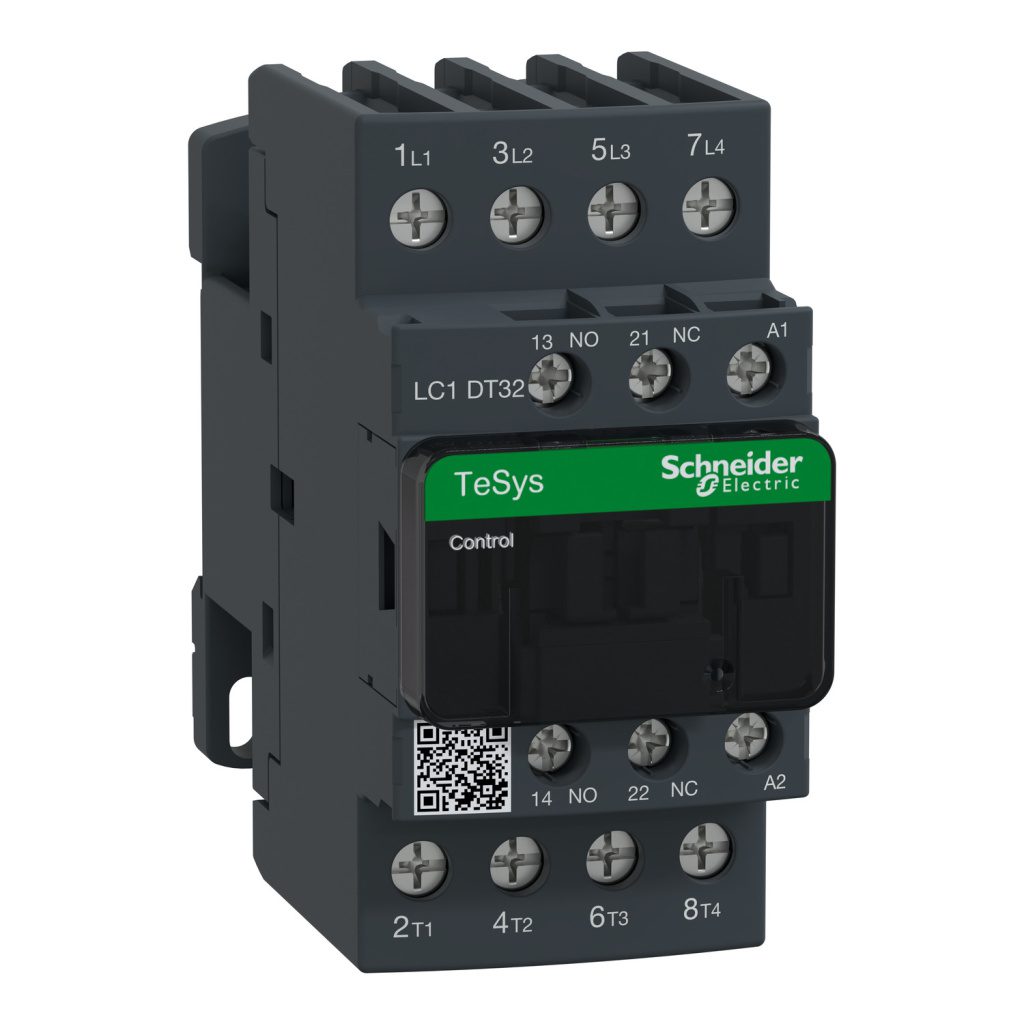

LC1DT32M7 TeSys D contactor 4P 4 NO AC-1 lc1dt32m7 image 1500x1500
-55%

LC1DT32M7 | TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 32 A - 220 V AC 50/60 Hz coil - Schneider Electric

Schneider Electric
Original price was: ₹7,890.00.Current price is: ₹3,550.50. Excl. GST
Add to basket
SKU: LC1DT32M7
LC1D32M7 TeSys D contactor 3P 3 NO AC-3 lc1d32m7 image 1500x1500
-63%

LC1D32M7 | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 32 A - 220 V AC coil - Schneider Electric

Schneider Electric
Original price was: ₹10,215.00.Current price is: ₹3,779.55. Excl. GST
Add to basket
SKU: LC1D32M7
LC1D25B7 TeSys D contactor 3P 3 NO AC-3 lc1d25 front 1500x1500
-63%

LC1D25M7 | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 25 A - 220 V AC coil - Schneider Electric

Schneider Electric
Original price was: ₹5,250.00.Current price is: ₹1,942.50. Excl. GST
Add to basket
SKU: LC1D25M7
LC1DT25M7 TeSys D contactor 4P 4 NO AC-1 lc1dt25m7 image 1 1500x1500
-55%

LC1DT25M7 | TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 25 A - 220 V AC 50/60 Hz coil - Schneider Electric

Schneider Electric
Original price was: ₹7,595.00.Current price is: ₹3,417.75. Excl. GST
Add to basket
SKU: LC1DT25M7

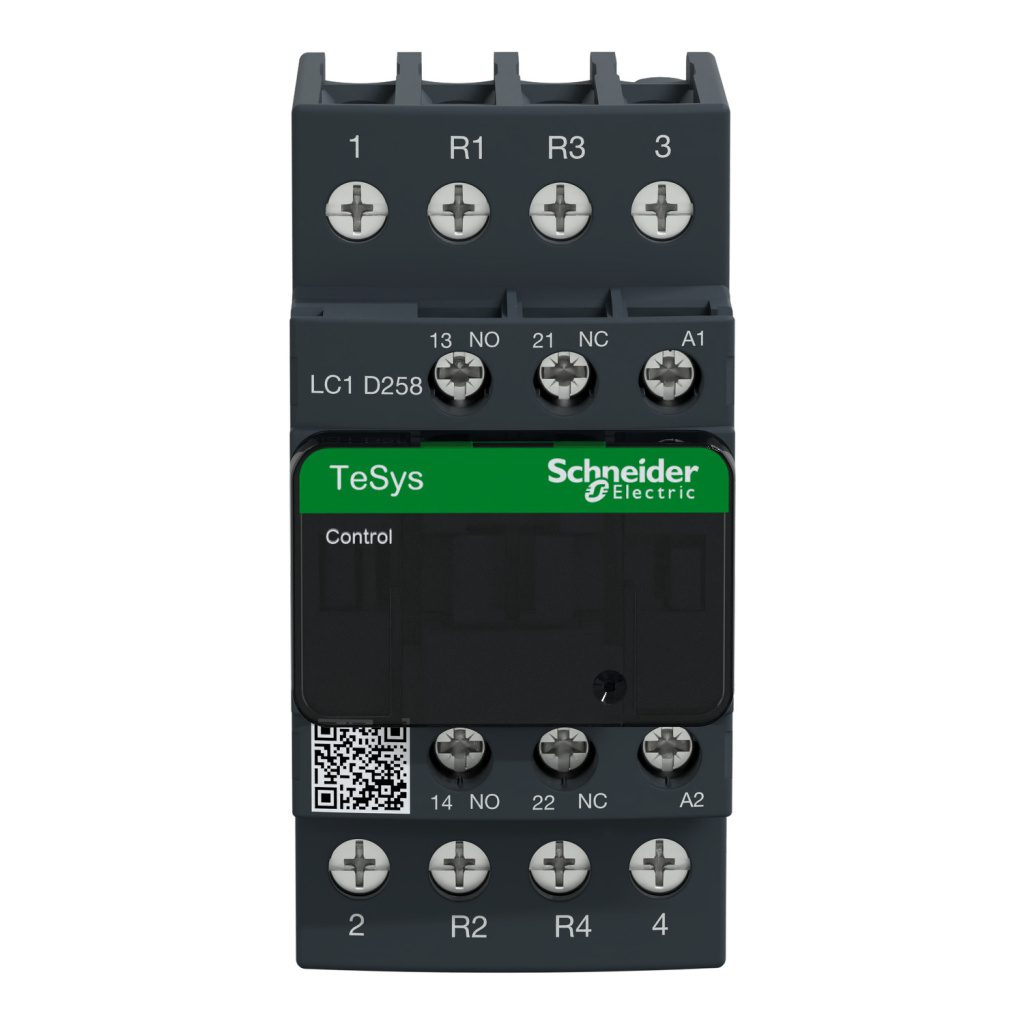

LC1D258M7 TeSys D contactor 4P 2 NO 2 NC AC-1 lc1d258 front 1500x1500
-58%

LC1D258M7 | TeSys D contactor – 4P(2 NO + 2 NC) – AC-1 – <= 440 V 40 A - 220 V AC coil - Schneider Electric

Schneider Electric
Original price was: ₹14,525.00.Current price is: ₹6,100.50. Excl. GST
Add to basket
SKU: LC1D258M7

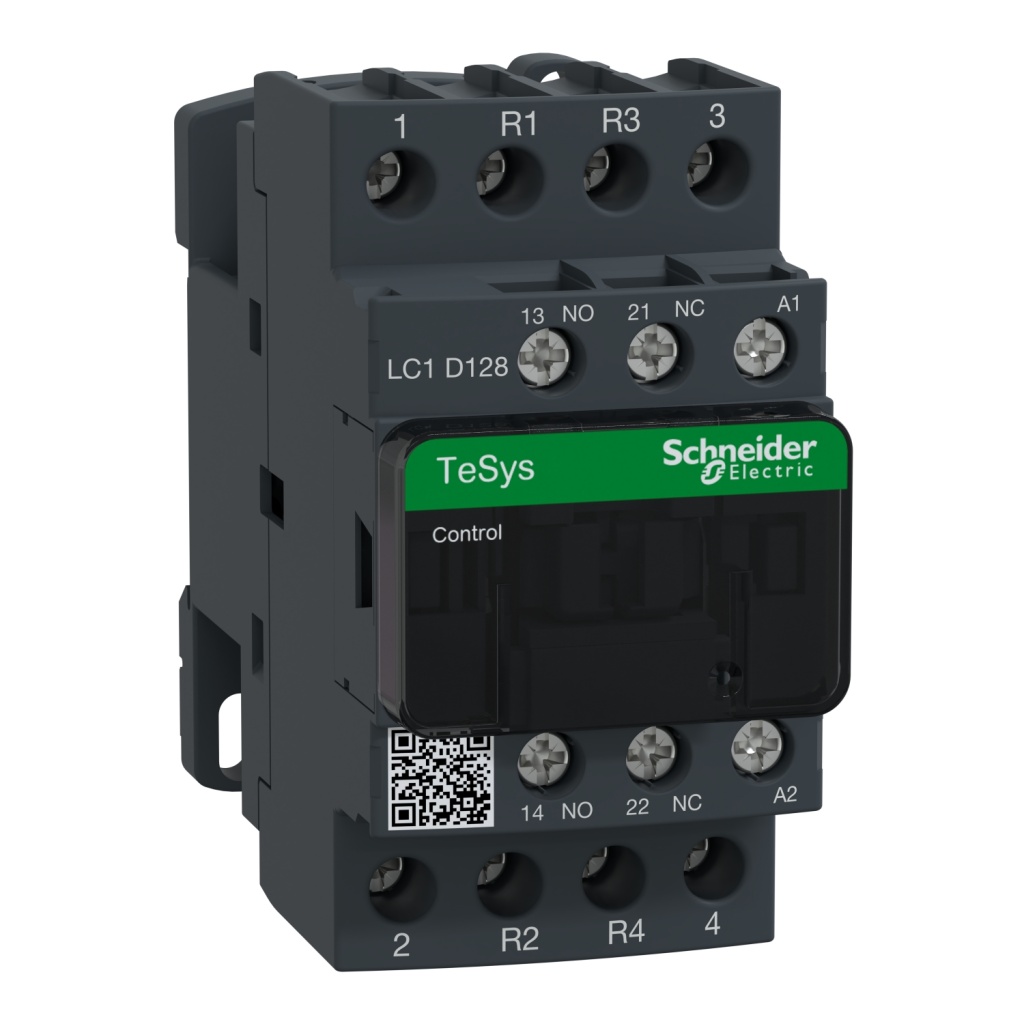

LC1D128M7 TeSys D contactor 4P 2 NO 2 NC AC-1 lc1d128m7 image 1500x1500
-63%

LC1D128M7 | TeSys D contactor – 4P(2 NO + 2 NC) – AC-1 – <= 440 V 25 A - 220 V AC coil - Schneider Electric

Schneider Electric
Original price was: ₹9,110.00.Current price is: ₹3,370.70. Excl. GST
Add to basket
SKU: LC1D128M7
CAD32N7 TeSys D control relay 3 NO 2 NC cad32 front 1500x1500
-55%

CAD32M7 | TeSys D control relay – 3 NO + 2 NC – <= 690 V - 220 V AC standard coil - Schneider Electric

Schneider Electric
Original price was: ₹3,310.00.Current price is: ₹1,489.50. Excl. GST
Add to basket
SKU: CAD32M7
LC1D18B7 TeSys D contactor 3P 3 NO AC-3 lc1d18b7 image web
-63%

LC1D18M7 | TeSys D contactor – 3P(3 NO) – AC-3 –

Schneider Electric
Original price was: ₹4,230.00.Current price is: ₹1,565.10. Excl. GST
Add to basket
SKU: LC1D18M7
LC1D38M7 TeSys D contactor 3P 3 NO AC-3 lc1d38m7 image 1500x1500
-63%

LC1D38M7 | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 38 A - 220 V AC 50/60 Hz coil - Schneider Electric

Schneider Electric
Original price was: ₹14,530.00.Current price is: ₹5,376.10. Excl. GST
Add to basket
SKU: LC1D38M7

    Looking for the LXD1M7 | TeSys D – contactor coil – LXD1 – 220 V AC 50/60 Hz for 9… 38 A contactor? This genuine Schneider Electric contactor spare part from the TeSys range is built for motor control and switching, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 38 A, 220V AC. Order part number LXD1M7 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

    📋 Technical Specifications

    Product
    BrandSchneider Electric
    Part Number / SKULXD1M7
    CategoryContactor Spare Part
    Main
    RangeTeSys
    Product or component typeContactor coil
    Device short nameLXD1
    Control circuit typeAC at 50/60 Hz
    [Uc] control circuit voltage220 V AC 50/60 Hz
    Average resistance515.4 Ohm at 20 °C
    Inductance of closed circuit18 H
    Product compatibilityCAD
    LC1D09…D38
    LC1DT20…DT40
    Mechanical durability15 Mcycles
    Maximum operating rate3600 cyc/h 60 °C
    Complementary
    Coil technologyWithout built-in suppressor module
    Control circuit voltage limitsDrop-out: 0.3…0.6 Uc at 50/60 Hz (at <60 °C)
    Operational: 0.8…1.1 Uc at 50 Hz (at <60 °C)
    Operational: 0.85…1.1 Uc at 60 Hz (at <60 °C)
    Inrush power in VA70 VA 60 Hz cos phi 0.75 (at 20 °C)
    70 VA 50 Hz cos phi 0.75 (at 20 °C)
    Hold-in power consumption in VA7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
    7 VA 50 Hz cos phi 0.3 (at 20 °C)
    Heat dissipation2…3 W at 50/60 Hz
    Environment
    Ambient air temperature for operation-5…60 °C
    Product weight0.07 kg
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height4.500 cm
    Package 1 Width6.300 cm
    Package 1 Length4.000 cm
    Package 1 Weight67.000 g
    Unit Type of Package 2S02
    Number of Units in Package 2100
    Package 2 Height15.000 cm
    Package 2 Width30.000 cm
    Package 2 Length40.000 cm
    Package 2 Weight7.134 kg
    Contractual warranty
    Warranty (in months)18

    ⚡ Key Features

    • Genuine Schneider Electric OEM accessory — manufactured to the same specification and tested to the same standards as the parent device; ensures mechanical and electrical compatibility that third-party alternatives cannot guarantee.
    • Replacement contactor coil rated 220V AC — restores the original contactor to service at a fraction of the cost of a complete replacement.
    • Exact-fit replacement — same electrical and mechanical specification as the factory-fitted coil; no recalibration or adjustment of the contactor required after fitting.
    • Direct clip-on or screw-mount to parent device — fits without panel modification or additional wiring between the accessory and main device; field-retrofittable.
    • Manufactured to IEC 60947 (tested as part of the parent device certification) — complies with the applicable Indian BIS and IEC international standards for this product category.
    • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
    • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
    • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
    • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

    🔗 Compatible Products & Accessories

    The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

    LC1D09M7LC1D18M7LC1D25M7LC1D12M7LC1D32M7LC1D38M7CAD32M7LC1D096M7CAD50M7LC1DT25M7LC1D188M7LC1D258M7LC1DT20M7LC1D128M7LC1D186M7LC1D256M7LC1DT32M7LC1D098M7LC1D126M7LC2D09M7

    ❓ Frequently Asked Questions

    Q: Is the LXD1M7 rated 38 A for AC-3 motor duty or AC-1 resistive duty?

    A: The 38 A rating of this Schneider Electric contactor applies to AC-3 duty (squirrel cage motor starting and running). For AC-1 (resistive/non-inductive) loads, the current can be up to ~1.3× the AC-3 rating. AC-4 (plugging/reversing) requires significant de-rating — consult the Schneider Electric selection table.

    Q: The LXD1M7 has a coil voltage of 220V AC — what control supply is needed?

    A: This Schneider Electric device requires a 220V AC control supply connected to the coil terminals (A1 and A2). For AC coils, ensure the control circuit voltage is stable — voltage drops below 85% of rated coil voltage can cause chatter and coil overheating. Always fit a surge suppressor across the coil when switching with a PLC or solid-state relay.

    Q: What causes a contactor coil to fail and need replacement like the LXD1M7?

    A: The most common causes are: sustained undervoltage (coil hums and overheats while failing to seal the magnetic circuit), overvoltage, voltage spikes from nearby switching inductive loads, dust or rust on the magnet faces preventing full closure (coil draws inrush current continuously), and simple ageing of the insulation. If coils fail repeatedly, fit a surge suppressor and check the control supply voltage stability before fitting the new coil.

    Q: How do I know the LXD1M7 replacement coil matches my contactor?

    A: Match three things: (1) the contactor series and frame size stated for the LXD1M7, (2) the coil voltage — the replacement must equal the control circuit voltage exactly, and (3) AC or DC supply type. Fitting a coil of the wrong voltage causes failure to pull in (too low) or coil burnout (too high). The original coil’s voltage is printed on its face — verify before ordering.
