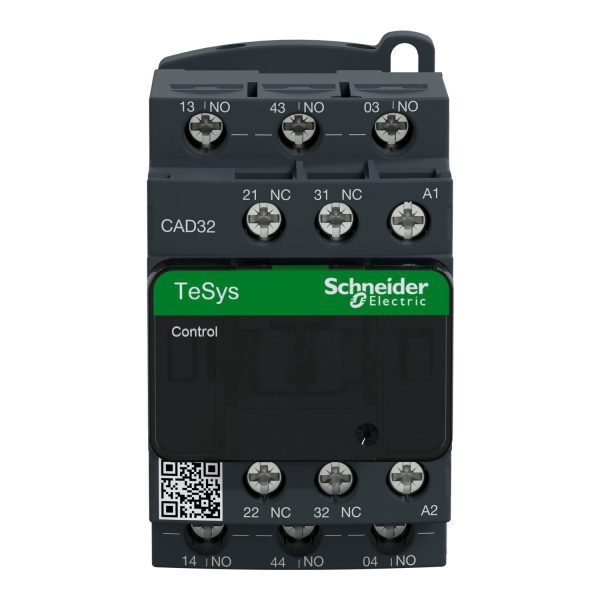

CAD32M7 | TeSys D Control Relay
Product Overview
The CAD32M7 is a TeSys D control relay from Schneider Electric, designed for industrial and commercial applications. It features 3 Normally Open (NO) and 2 Normally Closed (NC) contacts, making it versatile for various control circuits. With a voltage rating of up to 690 V and a standard coil voltage of 220 V AC, this relay ensures reliable performance in demanding environments.
Key Features
- Contact Configuration: 3 NO + 2 NC
- Voltage Rating: ≤ 690 V
- Coil Voltage: 220 V AC (standard)
- Mounting: DIN rail mounting for easy installation
- Contact Material: Silver alloy for high durability and low contact resistance
- Mechanical Life: Up to 10 million operations
- Electrical Life: Up to 1 million operations at full load
- Operating Temperature: -25°C to +55°C
- Protection Class: IP20 (finger-safe design)
- Compliance: Meets international standards such as IEC 60947-4-1 and UL 508
Applications
The CAD32M7 control relay is suitable for a wide range of applications, including:
- Motor control circuits
- Lighting control systems
- HVAC systems
- Industrial automation
- Power distribution systems
Technical Specifications
| Parameter | Value |
|---|---|
| Contact Configuration | 3 NO + 2 NC |
| Rated Voltage | ≤ 690 V |
| Coil Voltage | 220 V AC |
| Mechanical Life | 10 million operations |
| Electrical Life | 1 million operations at full load |
| Operating Temperature | -25°C to +55°C |
| Protection Class | IP20 |
| Standards Compliance | IEC 60947-4-1, UL 508 |
Warranty and Support
Schneider Electric offers a standard warranty on the CAD32M7 control relay. For technical support and warranty claims, contact Schneider Electric’s customer service or visit their official website.
