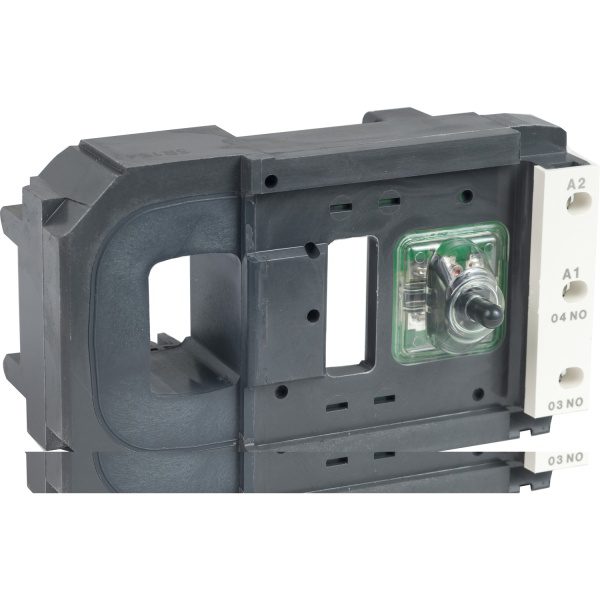

LX1FJ110 | TeSys F – contactor coil – LX1FJ – 110…120 V AC 40…400 Hz – Schneider Electric

Name: TeSys F Contactor Coil LX1FJ110 | 110-120V AC 40-400Hz
Brand: Schneider Electric
SKU: LX1FJ110
Price: 24832.70 INR
Availability: InStock

SKU: LX1FJ110

Original price was: ₹42,815.00.Current price is: ₹24,832.70. Excl. GST

In stock

11 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Looking for the LX1FJ110 | TeSys F – contactor coil – LX1FJ – 110…120 V AC 40…400 Hz? This genuine Schneider Electric contactor spare part from the TeSys range is built for motor control and switching, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 110–120V AC. Order part number LX1FJ110 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	LX1FJ110
Category	Contactor Spare Part
Main
Range	TeSys
Product or component type	Contactor coil
Device short name	LX1FJ
Range compatibility	TeSys TeSys F LC1F contactor
Product compatibility	LC1F400
Control circuit type	AC at 40…400 Hz
[Uc] control circuit voltage	110…120 V AC 40…400 Hz
Inductance of closed circuit	1.35 H
Average resistance	9.8 Ohm inrush at 20 °C 230 Ohm holding at 20 °C
Operating time	100…170 ms opening 40…75 ms closing
Mechanical durability	10 Mcycles
Maximum operating rate	2400 cyc/h 55 °C
Complementary
Coil technology	Without built-in suppressor module
Control circuit voltage limits	Operational: 0.85…1.1 Uc 40…400 Hz (at 55 °C) Drop-out: 0.3…0.5 Uc 40…400 Hz (at 55 °C)
Inrush power in VA	1075 VA 40…400 Hz cos phi 0.9 (at 20 °C)
Hold-in power consumption in VA	15 VA 40…400 Hz cos phi 0.3 (at 20 °C)
Heat dissipation	14 W at 40…400 Hz
Environment
Ambient air temperature for operation	-5…55 °C
Product weight	1 kg
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	9.5 cm
Package 1 Width	10.0 cm
Package 1 Length	19.0 cm
Package 1 Weight	1.181 kg
Unit Type of Package 2	S03
Number of Units in Package 2	6
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	7.524 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Genuine Schneider Electric OEM accessory — manufactured to the same specification and tested to the same standards as the parent device; ensures mechanical and electrical compatibility that third-party alternatives cannot guarantee.
Replacement contactor coil rated 110–120V AC at 40–400 Hz supply frequency — covers both 50Hz Indian and 60Hz international control supplies — restores the original contactor to service at a fraction of the cost of a complete replacement.
Exact-fit replacement — same electrical and mechanical specification as the factory-fitted coil; no recalibration or adjustment of the contactor required after fitting.
Direct clip-on or screw-mount to parent device — fits without panel modification or additional wiring between the accessory and main device; field-retrofittable.
Manufactured to IEC 60947 (tested as part of the parent device certification) — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: The LX1FJ110 has a coil voltage of 110–120V AC — what control supply is needed?

A: This Schneider Electric device requires a 110–120V AC control supply connected to the coil terminals (A1 and A2). For AC coils, ensure the control circuit voltage is stable — voltage drops below 85% of rated coil voltage can cause chatter and coil overheating. Always fit a surge suppressor across the coil when switching with a PLC or solid-state relay.

Q: What causes a contactor coil to fail and need replacement like the LX1FJ110?

A: The most common causes are: sustained undervoltage (coil hums and overheats while failing to seal the magnetic circuit), overvoltage, voltage spikes from nearby switching inductive loads, dust or rust on the magnet faces preventing full closure (coil draws inrush current continuously), and simple ageing of the insulation. If coils fail repeatedly, fit a surge suppressor and check the control supply voltage stability before fitting the new coil.

Q: How do I know the LX1FJ110 replacement coil matches my contactor?

A: Match three things: (1) the contactor series and frame size stated for the LX1FJ110, (2) the coil voltage — the replacement must equal the control circuit voltage exactly, and (3) AC or DC supply type. Fitting a coil of the wrong voltage causes failure to pull in (too low) or coil burnout (too high). The original coil’s voltage is printed on its face — verify before ordering.
